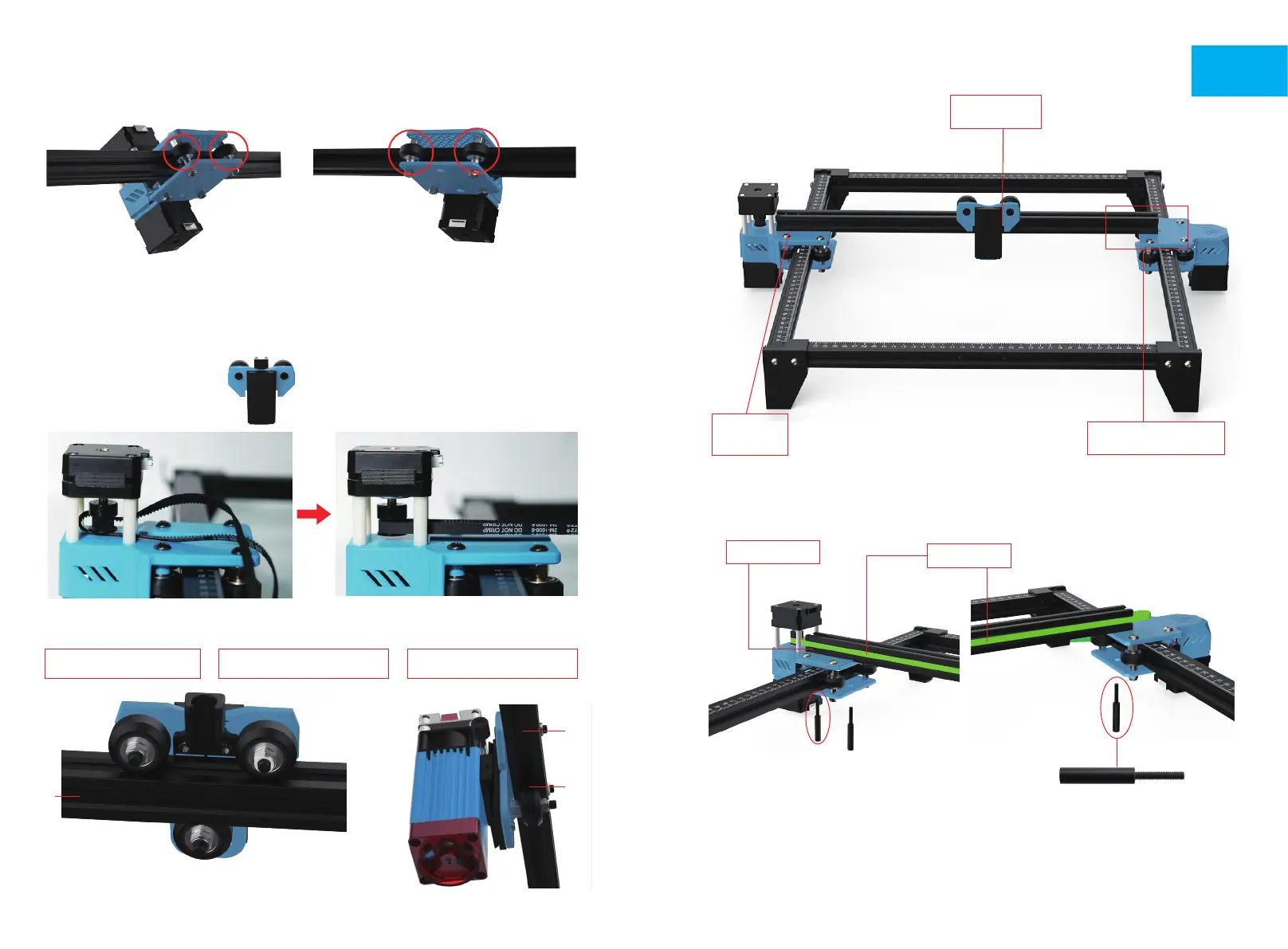

Check whether the POM wheel of the left and right parts of the Y-axis fits
the profile and whether the movement is smooth and there is no jam
Note: ① It is the most appropriate position to feel a little friction between the POM
wheel and the profile when rotating the POM wheel.
② If the wheel rotates in the air and does not fit the profile, the eccentric nut can be adjusted clockwise from the direction
of the screw head with an open-end wrench.
Eccentric nuts
Eccentric nuts
Left unit
Right unit
3.4 Fixed X-axis beam
First screw two M4 * 50 screws to fix X axis beam (not too tight, adjust X axis beam parallel)
screw M4*50 x 2
3.3 Place the assembled carriage on the machine frame and
hand-tighten the screws, then assemble the tensioner.
Align the X-axis beam
with the slot
Place the timing
belt on the profile
The frames to
be aligned
well at slot
Attention to the
carriage direction
Check 3.5 for the guide on
tensioner installation.
3.1 Put the synchronous belt of the carriage on the synchronous wheel
of the X-axis motor
Carriage and lifting module X1
The teeth of the timing
belt face the timing pulley
3.2 Push the carriage into the X-axis beam
① The carriage pushes into the side
of the X-axis white terminal.
③ The wire is between the X-axis beam
and the pom wheel
② The frame seal is at the bottom,
and the cables tobe placed in the seal
EN
Rear view
②
③
①
