Fixed-length column

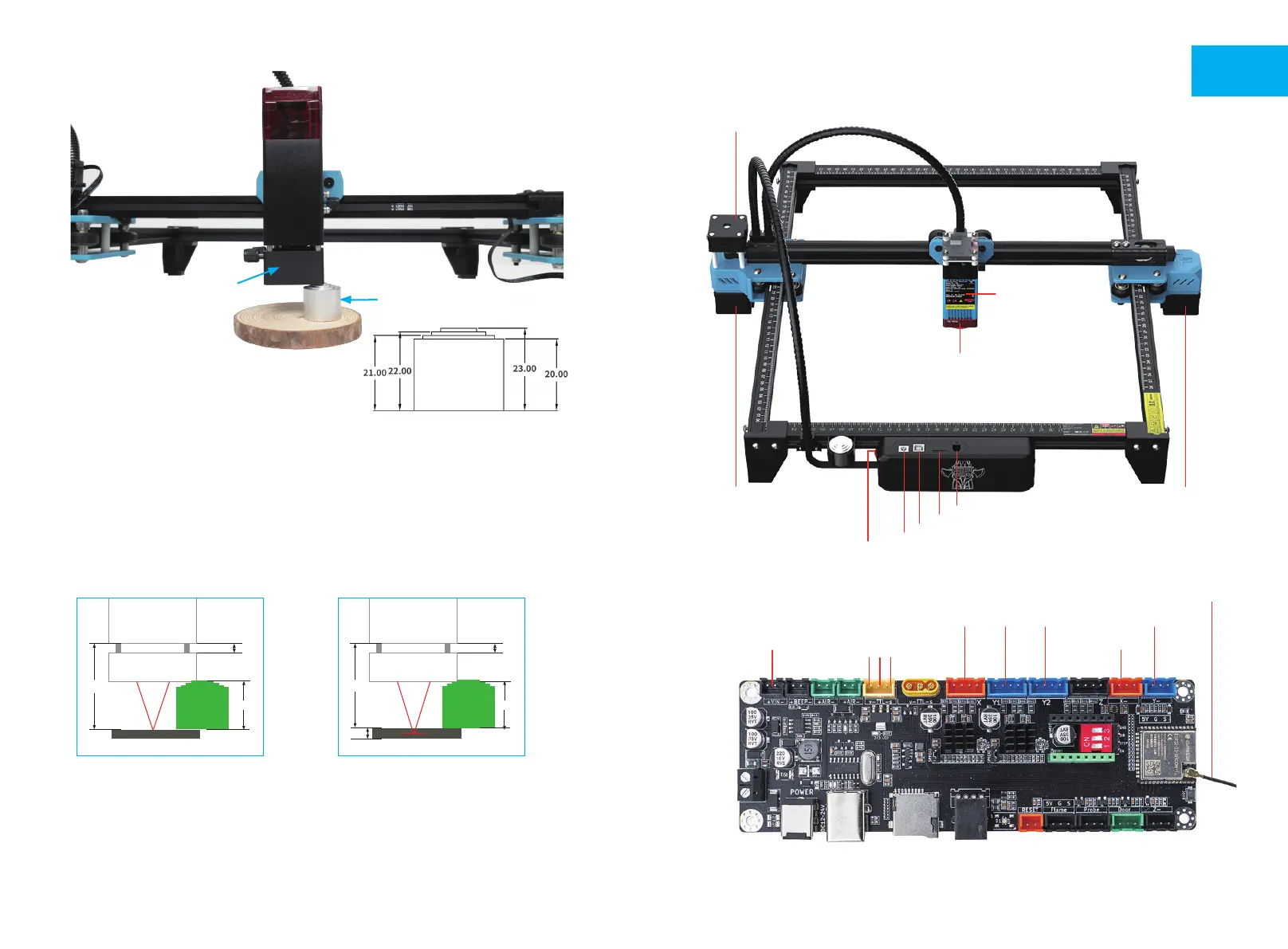

Focus adjustment before engraving:
Before engraving, you need to adjust the focus. The focus needs to be on the surface of the engraved object. The height
of the fixed-focus column is 23mm. You can use the fixed-focus column for auxiliary adjustment. Place the fixed-focus
column between the engraving object and the adjustment block, and rotate the Z axis. The lifting module makes the
laser module stick to the fixed focus column; the laser module and the engraving object keep 50mm, and the adjusting
block and the engraving object keep 23mm.
Focus adjustment before cutting: (the laser module protective cover needs to be removed)
Before cutting, the focus needs to be in the middle of the fault of the engraved object, so according to different plate
thicknesses, the corresponding focus should be set, and the Z-axis lifting module should be rotated to adjust
Assuming the object is 2mm, use the second step of the fixed focus column, and keep the adjustment block 22mm
from the engraved object.
The object is 4mm, the third step of the fixed focus column is used, and the adjustment block is kept 21mm from the
engraved object
TTS-10 PRO
Fixed-length column
Laser module
Object
Adjustment block
10W laser module fixed
focus introduction
Engraving
Adjustment
block
50.00
23.00
5.00
Laser
module
Sculpt objects
Cutting
The thickness of the engraved
object is 2mm,and the secondstep
of the fixed focus column is used
49.00
22.00
5.00
2.00
Laser
module
Adjustment
block
Sculpt objects
MEET YOUR（TTS-55 PRO)(TTS-10 PRO)
Machine Introduction
Motherboard Introduction
Motherboard Fans
X Motor
Y1 Motor
Laser Shield
Power Switch
Power Port
USB Port
TF Card Slot
Display Port
X Motor Y1 Motor Y2 Motor
X Limit Switch
Y Limit Switch
Antenna
(No access location)
Laser Module
Laser Module
V G S
Y2 Motor
