TYAN S5630 - Page 25

http://www.tyan.com
25

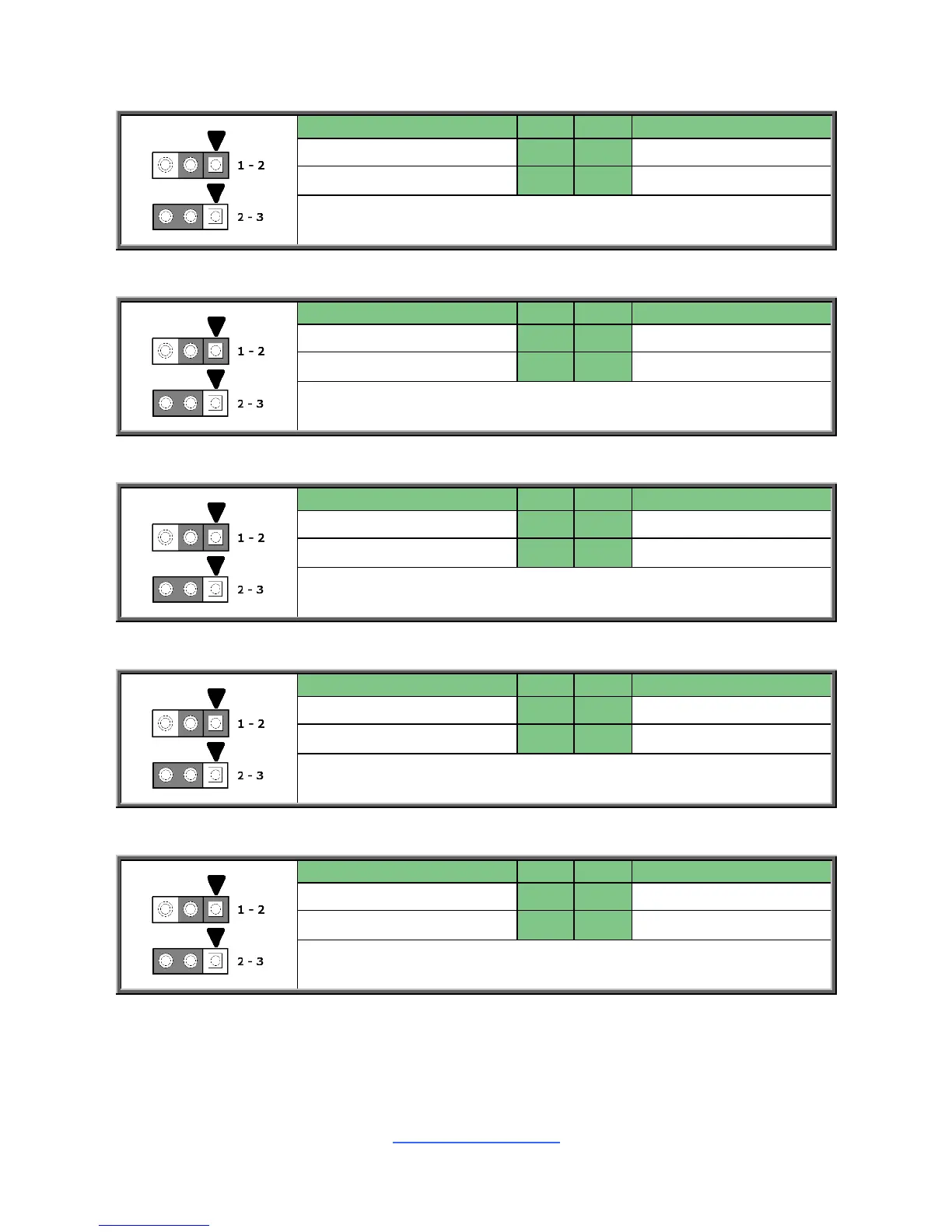

3PHD4: LPC /Espi Select Jumper
Signal
Pin
Pin
Signal
GND
1
2
ESPI_H_LPC_L
VCC3_AUX
3
1-2: LPC Mode (Default)
2-3: eSPI Mode
3PHD5: LPC /Espi Select Jumper
Signal
Pin
Pin
Signal
VCC3_AUX
1
2
PGPPA_AUX
PCH_P1V8_AUX
3
1-2: LPC Mode (Default)
2-3: eSPI Mode
3PHD6: BMC COM2/COM5 Select Jumper
Signal
Pin
Pin
Signal
BMC_COM2_RXD
1
2
RXD_2
BMC_COM5_RXD
3
1-2: Normal Mode (Default)
2-3: Debug Mode
3PHD7: BMC COM2/COM5 Select Jumper
Signal
Pin
Pin
Signal
BMC_COM2_TXD
1
2
TXD_2
BMC_COM5_TXD
3
1-2: Normal Mode (Default)
2-3: Debug Mode
3PHD8: NVDIA GPU Card Select Jumper
Signal
Pin
Pin
Signal
NC
1
2
FM_MIC_IPMB_EN
VCC3_AUX
3
1-2: Nvidia GPU card (Default)
2-3: Intel MIC card
