2.13 Installing the Power Supply

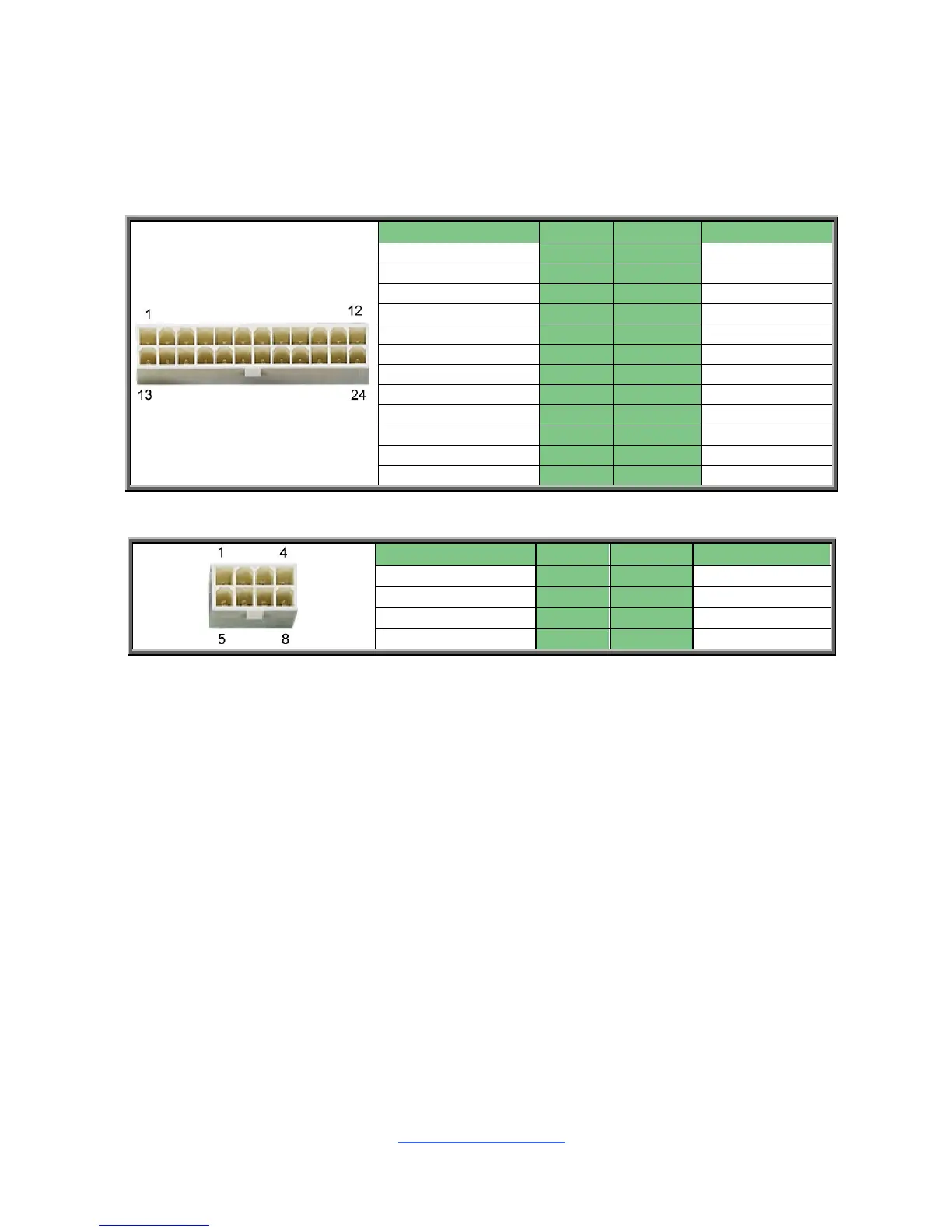

There are Two (2) power connectors on your S5630 motherboard. The S5630
supports EPS 12V power supply.
PWR1: ATX 24-Pin Power Connector
Signal
Pin
Pin
Signal
VCC3
1
13
VCC3
VCC3
2
14
-12V
GND
3
15
GND
VCC5
4
16
PS_ON#
GND
5
17
GND
VCC5
6
18
GND
GND
7
19
GND
PWR_OK
8
20
RES
5VSB
9
21
VCC5
VCC12
10
22
VCC5
VCC12
11
23
VCC5
VCC3
12
24
GND
PWR2: 8-pin Main Power Connector
Signal
Pin
Pin
Signal
GND
1
2
P0_P12V_M
GND
3
4
P0_P12V_M
GND
5
6
P0_P12V_M
GND
7
8
P0_P12V_M
2.14 Finishing Up
Congratulations on making it this far! You have finished setting up the hardware
aspect of your computer. Before closing up your chassis, make sure that all cables
and wires are connected properly, especially SATA cables and most importantly,
jumpers. You may have difficulty powering on your system if the motherboard
jumpers are not set correctly.
In the rare circumstance that you have experienced difficulty, you can find help by
asking your vendor for assistance. If they are not available for assistance, please find
setup information and documentation online at our website or by calling your vendor’s
support line.
