TYAN S5630 - Installing the Memory

http://www.tyan.com
36

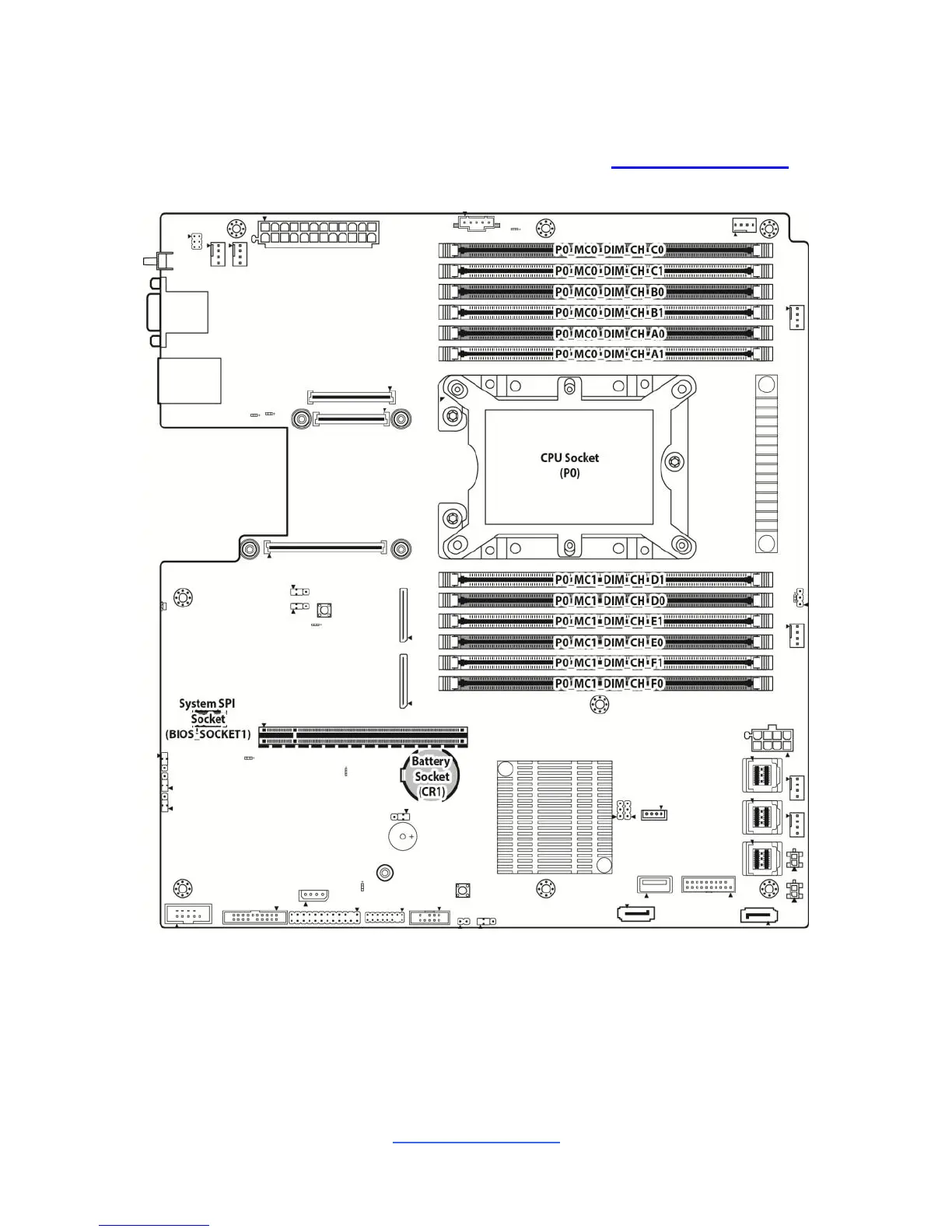

2.9 Installing the Memory
Before installing memory, ensure that the memory you have is compatible with the
motherboard and processor. Check the TYAN Web site at http://www.tyan.com for
details of the type of memory recommended for your motherboard.
 Support (12)DDR4 288-pin DIMM slots,
 Support (6) memory channels per CPU
 Support (2) DIMM slots per CPU channel
 Up to Up to 384GB RDIMM/ 768GB LRDIMM/ 1,536GB RDIMM 3DS/LRDIMM
3DS DDR4
