TYAN S5630 - Page 27

http://www.tyan.com
27

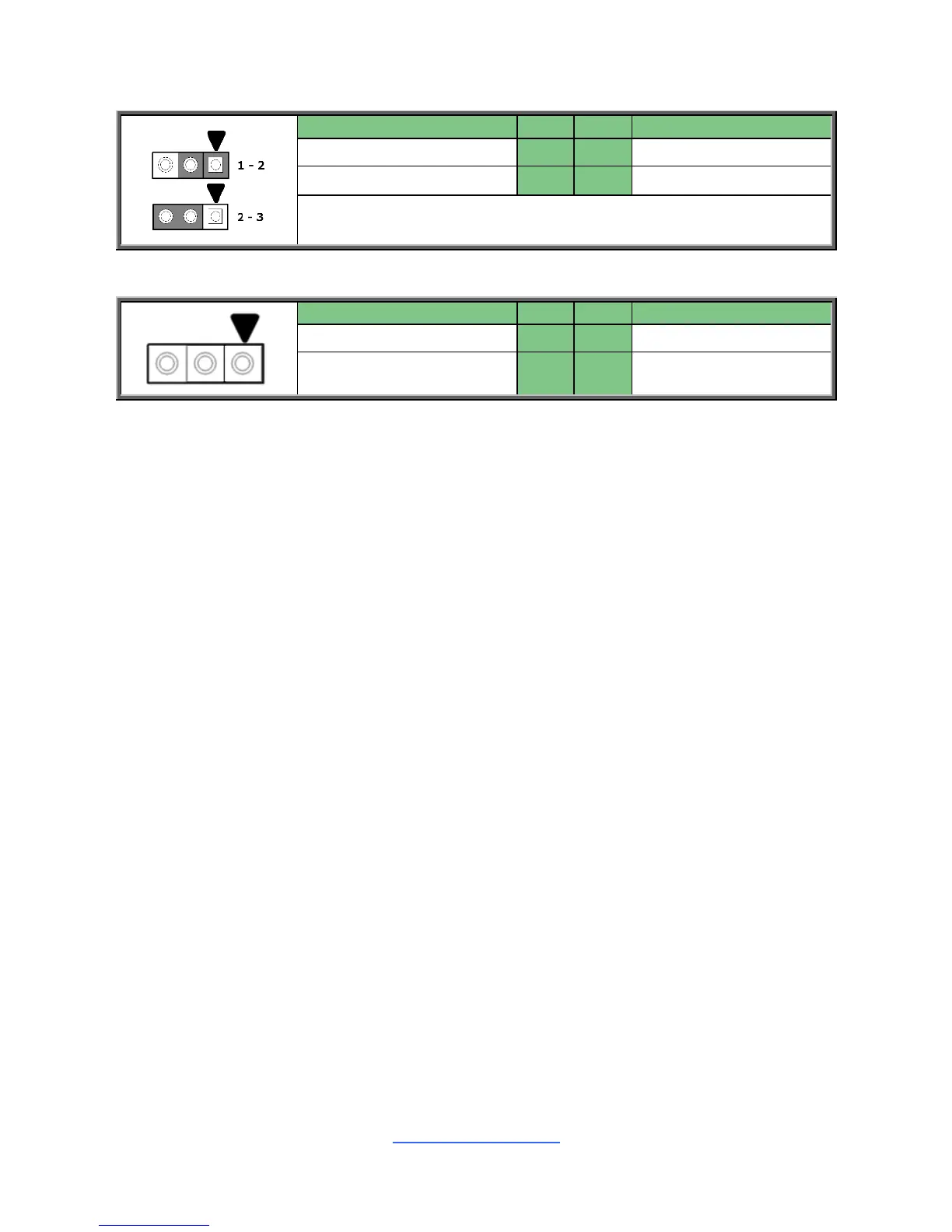

3PHD9: PSU Throttling Function
Signal
Pin
Pin
Signal
NC
1
2
Alert_Buff
Alert_Buff_B
3
1-2: Normal Mode (Default)
2-3: enable PSU Throttling function Mode
J10: CPU VR SCLK/SDAT Header
Signal
Pin
Pin
Signal
SMB CLK5
1
2
SMB DAT5
GND
3
