TYAN S5630 - Page 38

http://www.tyan.com
38
Supports up to (6+6) DDR-4 up to 2666MHz memory
 All installed memory will automatically be detected and no jumpers or settings
need changing
 All memory must be of the same type and density

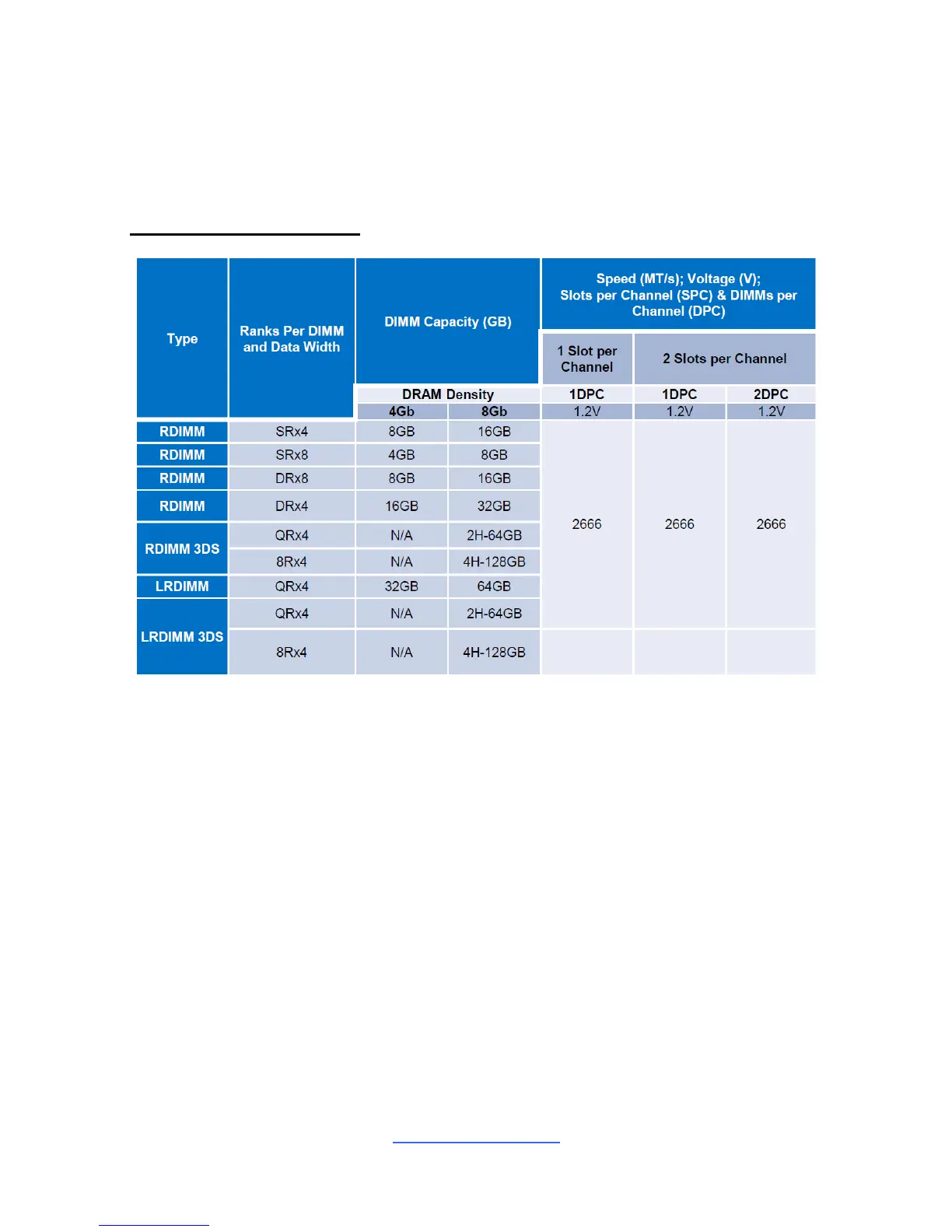

DDR4 Memory POR
 Physical Ranks are used to calculate DIMM Capacity.
 Supported DRAM Densities are 4Gb, 8Gb,16Gb, 32Gb, 64Gb.
