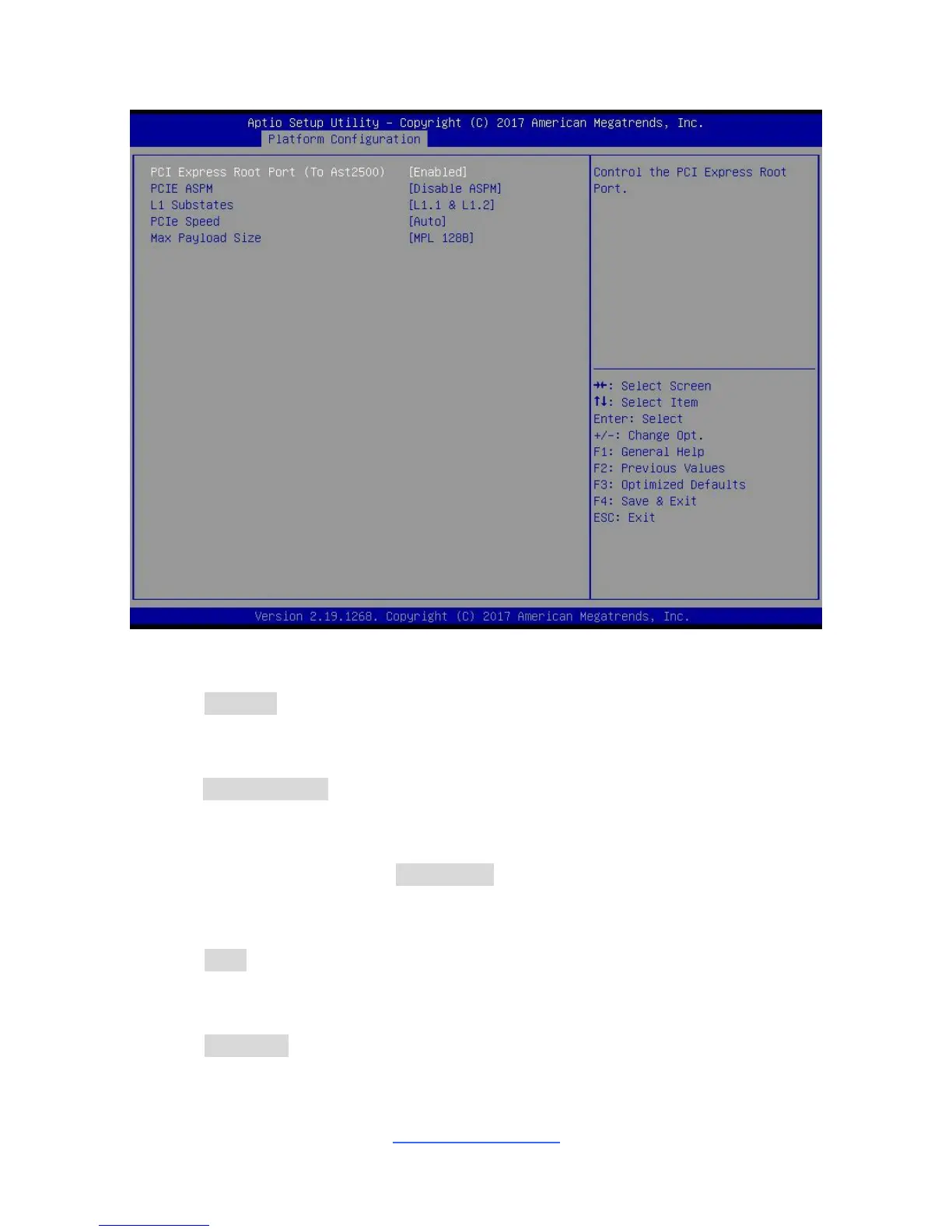

3.4.1.1 PCI Express Configuration
PCI Express Root Port (To AST2500)
Control the PCI Express Root Port.
Enabled / Disabled
PCIE ASPM
PCI Express Root port ASPM Setting
Disable ASPM / ASPM L1 / ASPM Auto
L1 Substates
PCI Express L1 Substates settings.
Disabled / L1.1 / L1.2 / L1.1 & L1.2
PCIe Speed
Configure PCIe Speed.
Auto / Gen1 / Gen2 / Gen3
Max Payload Size
PCIE Max Payload Size Selection.
MPL128B / MPL256B
