99

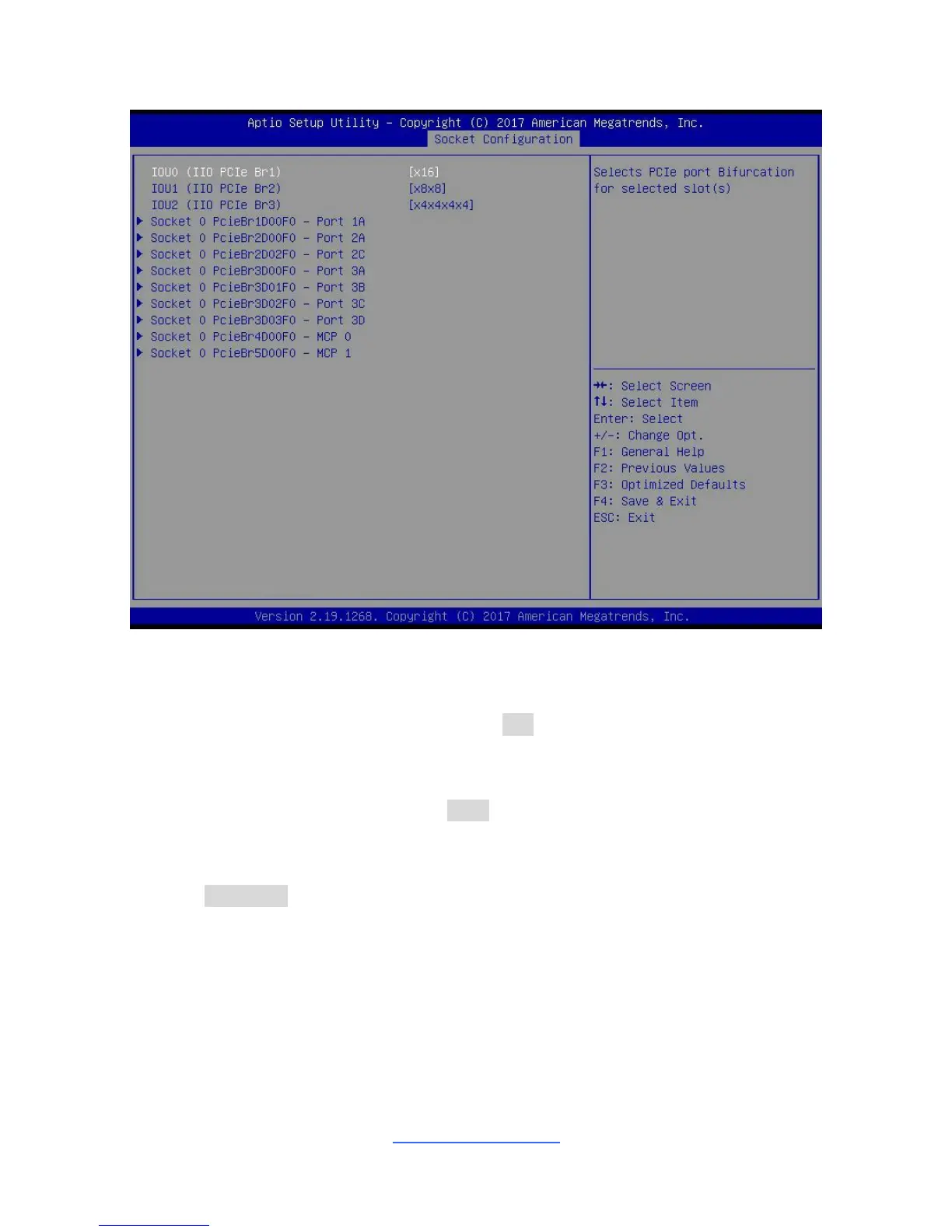

5.5.4.1 Socket 0 Configuration
IDU0 (IIO PCIe Br1)
Selects PCIe port Bifurcation for selected slot(s).
x4x4x4x4 / x4x4x8 / x8x4x4 / x8x8 / x16 / Auto
IDU1 (IIO PCIe Br2)
Selects PCIe port Bifurcation for selected slot(s).
x4x4x4x4 / x4x4x8 / x8x4x4 / x8x8 / x16 / Auto
IDU2 (IIO PCIe Br3)
Selects PCIe port Bifurcation for selected slot(s).
x4x4x4x4 / x4x4x8 / x8x4x4 / x8x8 / x16 / Auto
Socket 0 PcieBr1D00F0 – Port 1A
Settings related to PCI Express Ports
(0/1A/1B/1C/1D/2A/2B/2C/2D/3A/3B/3C/3D/4A/5A).
Socket 0 PcieBr2D00F0 – Port 2A
Settings related to PCI Express Ports
(0/1A/1B/1C/1D/2A/2B/2C/2D/3A/3B/3C/3D/4A/5A).
