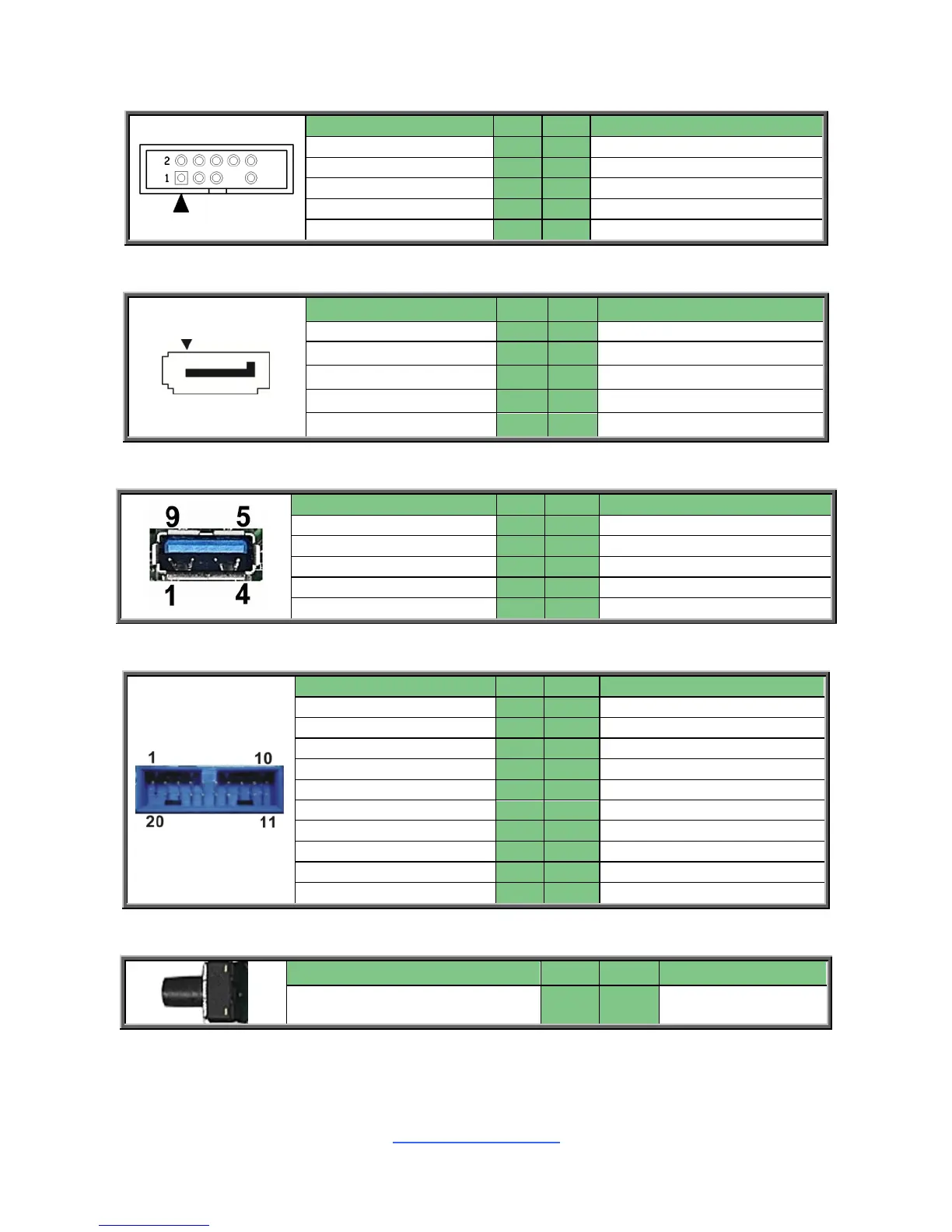

SGPIO0/SGPIO1: SGPIO Header
Signal
Pin
Pin
Signal
SMBCLK
1
2
SDATA IN
SMBDATA
3
4
SDATA OUT
GND
5
6
SLOAD
KEY
7
8
SCLOCK
VCC3_AUX
9
10
HD_ERROR_LED
SATA_DOM1/ SATA_DOM2: SATA DOM Connector
Signal
Pin
Pin
Signal
GND
1
2
sSATA6G_TX_P4
sSATA6G_TX_N4
3
4
GND
sSATA6G_RX_N4
5
6
sSATA6G_RX_P4
GND
7
P1
VCC5
VCC5
P2
TYPEA_USB1: Vertical (Type_A) USB3.0 Connector
Signal
Pin
Pin
Signal
+5V
1
2
USB2.0_DATA_N
USB2.0_DATA_P
3
4
GND
USB3.0_RX_N
5
6
USB3.0_RX_P
GND
7
8
USB3.0_TX_N
USB3.0_TX_P
9
USB3_FPIO1: Front USB3.0 Header
Signal
Pin
Pin
Signal
+5V
1
2
P0_RX_N
P0_RX_P
3
4
GND
P0_TX_N
5
6
P0_TX_P
GND
7
8
P0_N
P0_P
9
10
OC_N
P1_P
11
12
P1_N
GND
13
14
P1_TX_P
P1_TX_N
15
16
GND
P1_RX_P
17
18
P1_RX_N
+5V
19
20
Key
ID LED_BTN1: Rear IO IDLED Button
Signal
Pin
Pin
Signal
FP_IDLED_BTN_N
1
2
GND
