18

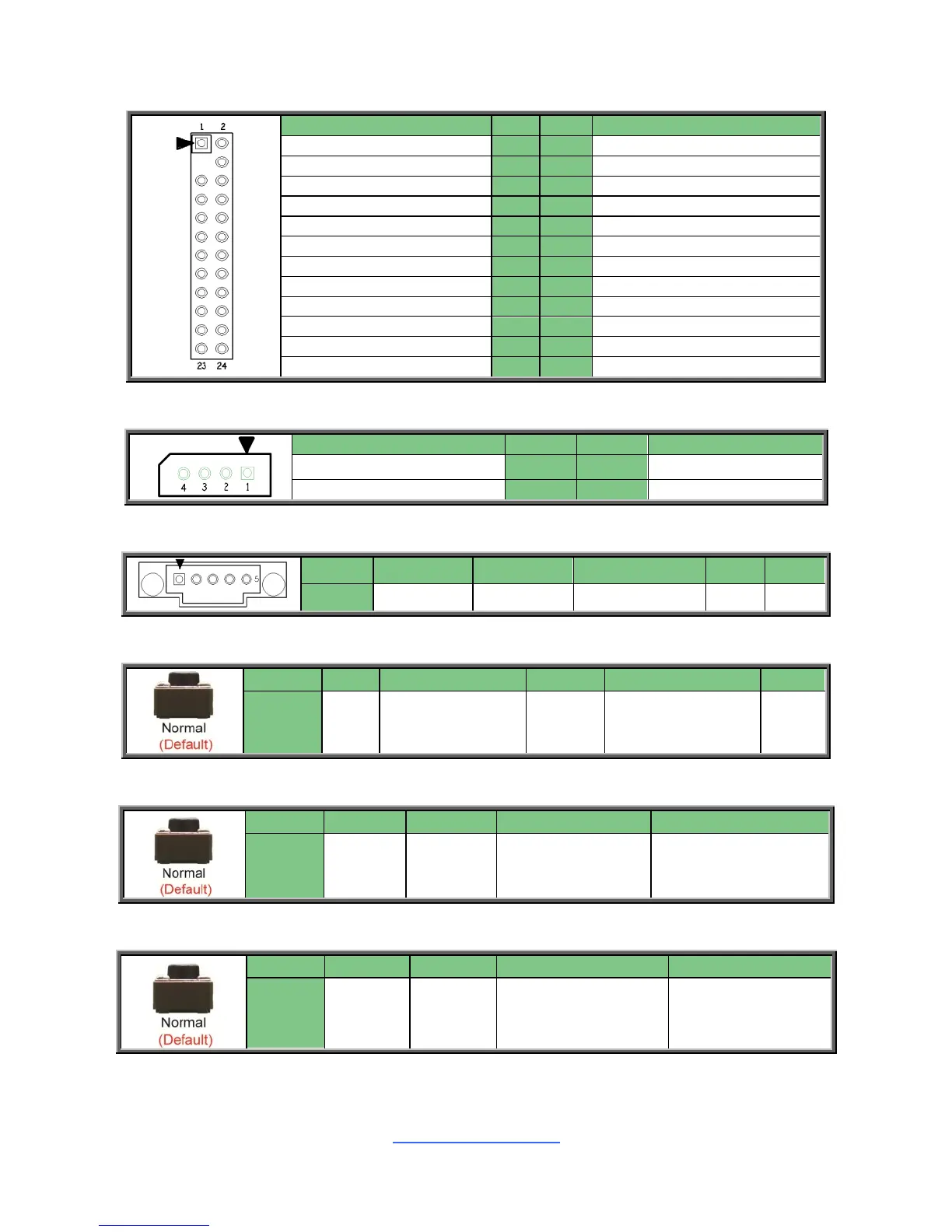

FPIO1: Front Panel Connector
Signal
Pin
Pin
Signal
PWRLED+
1
2
V3P3_AUX
KEY
3
4
IDLED+
PWRLED-
5
6
IDLED-
HDDLED+
7
8
SYS_FAULT1-
HDDLED-
9
10
SYS_FAULT2-
PWR_SW#
11
12
LAN1LED+
GND
13
14
LAN1LED-
RESET_SW#
15
16
SMBDATA
GND
17
18
SMBCLK
IDLED_SW#
19
20
INTRUSION#
NC
21
22
LAN2LED+
NMI_SW#
23
24
LAN1_LED_N
IPMB_HD1: IPMB Connector
Signal
Pin
Pin
Signal
BMC_SMB_DATA
1
2
GND
BMC_SMB_CLK
3
4
NC
PSMI_HD1: PSMI Connector
Pin
1
2
3
4
5
Signal
SMB_CLK
SMB_DAT
SMB_ALERT#
GND
V3P3
NMI_BTN1: NMI Button
Pin
1
2
3
4
5
Signal
NC
FP_NMI_BTN_N
GND
NMI_BTN_L 52
VCC
PWR_BTN1: POWER Button
Pin
1
2
3
4
Signal
GND
GND
PWR_BTN1
PWR_BTN1
RST_BTN1: Reset Button
Pin
1
2
3
4
Signal
GND
GND
FP_RST_BTN_N
FP_RST_BTN_N
