16

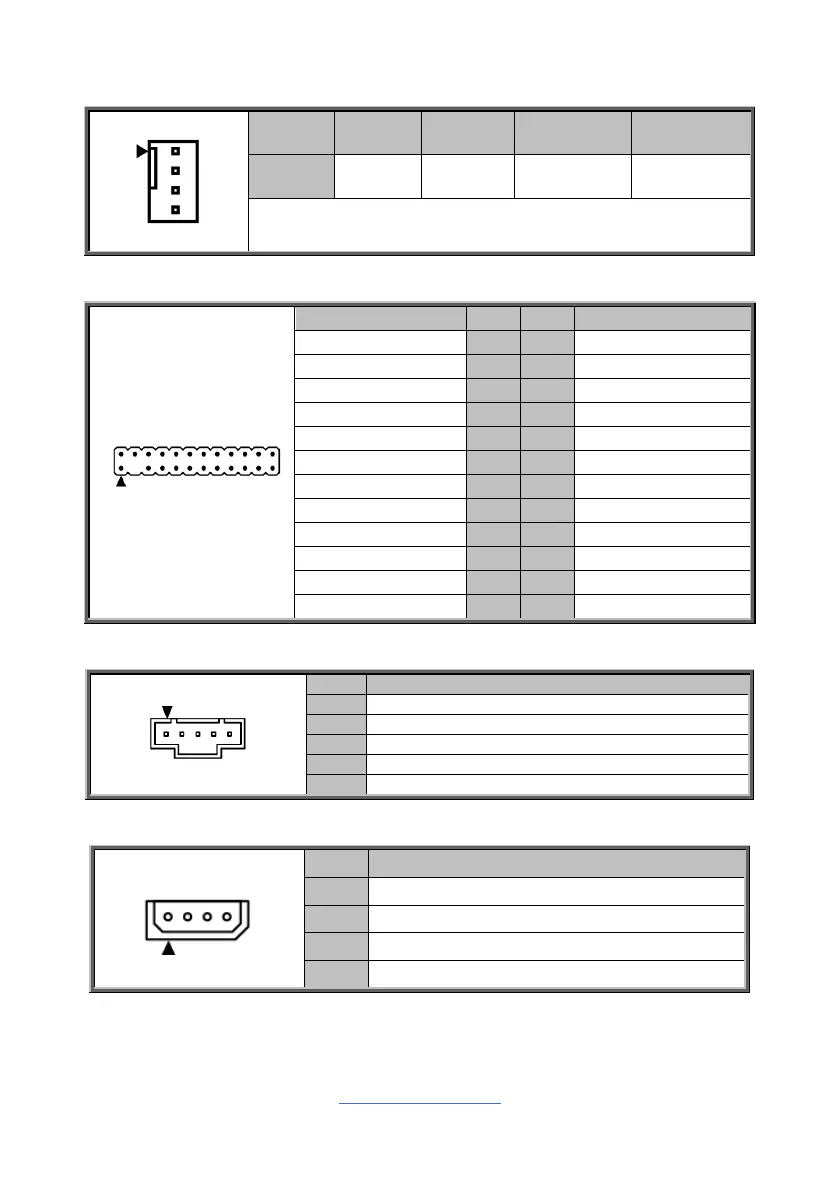

CPU0_FAN, SYS_FAN_1~5: 4-pin FAN Connector
Pin 1 2 3 4
Signal GND P12V FAN_TACH FAN_PWM
Use this header to connect the cooling fan to your motherboard to
keep the system stable and reliable.
FPIO_2: Front Panel Connector
Signal Pin Pin Signal
PWRLED+
1 2
VDD_33_DUAL
KEY
3 4
IDLED+
PWRLED-
5 6
IDLED-
HDDLED+
7 8
SYS_FAULT1-
HDDLED-
9 10
SYS_FAULT2-
PWR_SW#
11 12
LAN1LED+
GND
13 14
LAN1LED-
RESET_SW#
15 16
SMBDATA
GND
17 18
SMBCLK
IDLED_SW#
19 20
INTRUSION#
NC
21 22
LAN2LED+
NMI_SW# 23 24 LAN2LED-
PSMI_HD1: PSMI Header
Pin Signal
1 SMB_CLK
2 SMB_DAT
3 PSU_SMBALERT_N
4 GND
5 V3.3
IPMB_HD1: 4-pin IPMB Connector
Pin Signal
1 IPMB_DAT
2 GND
3 IPMB_CLK
4 VCC3_AUX
