2.11 Connecting External Devices
Connecting external devices to the motherboard is an easy task. The motherboard
supports a number of different interfaces through connecting peripherals. See the
following diagrams for the details.

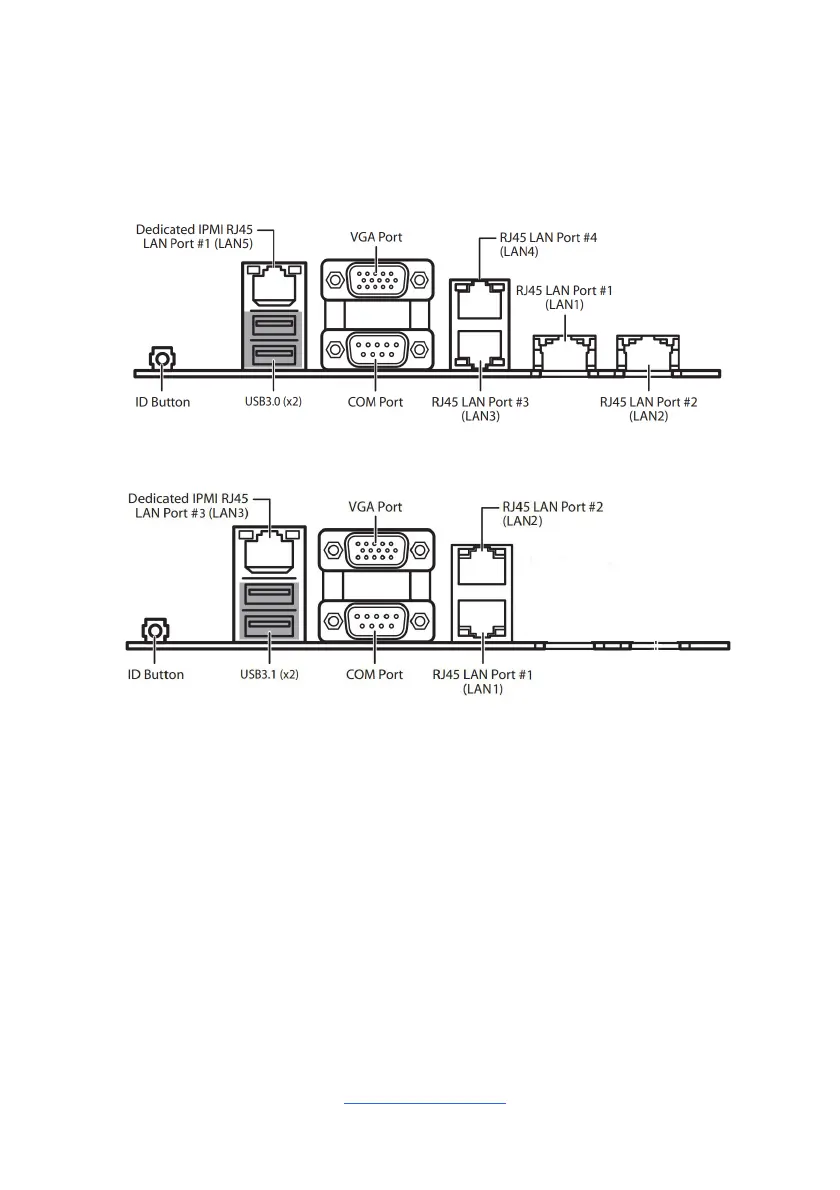

S8050GM4NE-2T
S8050GM2NE
NOTE: 1. For S8050GM4NE-2T Sku:
RJ45 (10GbE) LAN1/LAN2 is from Intel X710-AT2.
RJ45 (1GbE) LAN3/LAN4 are from Intel I210-AT chipset.
LAN5 is from RTL8211F
2. For S8050GM2NE Sku:
RJ45 (1GbE) LAN1/ LAN2/ is from Intel I210-AT chipset.
LAN3 is from RTL8211F
