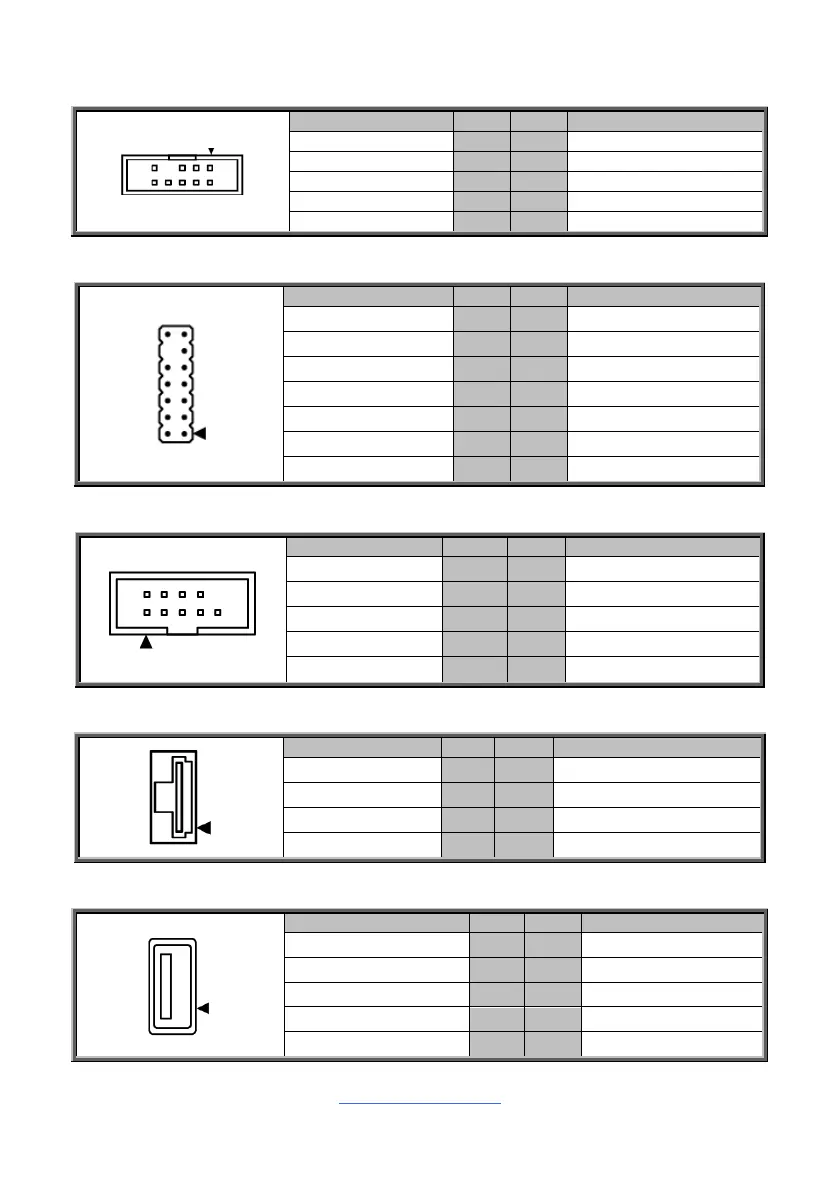

SSATA_SGPIO0: SATA SGPIO Pin Header for SSATA0
Signal Pin Pin Signal
SCL 1 2 NC
SDA 3 4 SDATA OUT-
GND 5 6 SLOAD
KEY 7 8 SCLOCK
VCC3_AUX 9 10 NC
VGA1: Front Panel VGA Header
Signal Pin Pin Signal
GND 1 2 VGA2_5V
GND 3 4 HD_VGA_R
GND 5 6 HD_VGA_G
GND 7 8 HD_VGA_B
GND 9 10 HD_VGA_DAT
HD_VGA_HS 11 12 KEY
HD_VGA_CLK 13 14 HD_VGA_VS
COM2: COM Port Header
Signal Pin Pin Signal
COM2_DCD 1 2 COM2_DSR
COM2_RXD 3 4 COM2_RTS
COM2_TXD 5 6 COM2_CTS
COM2_DTR 7 8 COM2_NRI
GND 9 10 KEY
HDR_1/2: HDD BP Smbus Header
Signal Pin Pin Signal
VCC3_AUX 1 2 HP0_SCK
HP0_SDA 3 4 CPU01_SMBALERT_N_C
NC 5 6 NC
GND 7
TYPEA_USB1: Vertical Type-A USB3.2 Gen1 Connector
Signal Pin Pin Signal
USB3_N3_RX_TYPEA 5 1 VCC5
USB3_P3_RX_TYPEA 6 2 USB2_N8_TYPE_A_R
GND 7 3 USB2_P8_TYPE_A_R
USB3_N3_TX_TYPEA 8 4 GND
USB3_P3_TX_TYPEA 9
