22

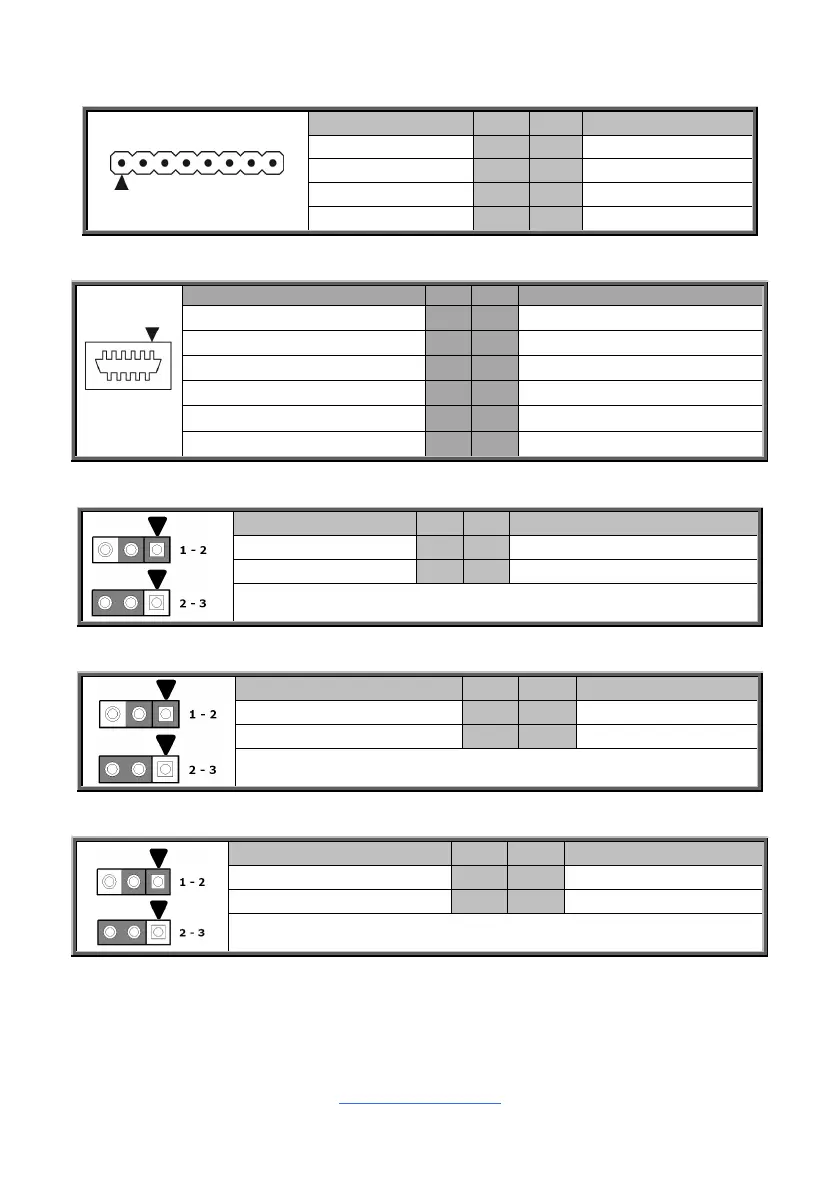

J12: CPLD JTAG Connector (reserved)
Signal Pin Pin Signal
VDD_33_DUAL 1 2 TDO
TDI 3 4 NC
NC 5 6 TMS
GND 7 8 TCK
J56: SPI TPM Header
Signal Pin Pin Signal
SPI_TPM_CONN_CLK 1 7 P3V3_AUX
RST_PLTRST_TPM_CONN_N 2 8 FM_TPM_CONN_PRSNT_R_N
SPI_TPM_CONN_MOSI 3 9 IRQ_TPM_CONN_PIRQ_N
SPI_TPM_CONN_MISO 4 10 P3V3
SPI_PCH_TPM_CONN_CS_N 5 11 GND
NC_TPM_PIN6 6
J3: CPLD force pwron options SEL Connector
Signal Pin Pin Signal
NC 1 2 FORCE_PWRON_LVC3
Rpu 1k 3
Pin1-2 closed: Normal Mode (Default)
Pin2-3 closed: POWER ON
J4: NCSI SEL Connector
Signal Pin Pin Signal
NC 1 2 NCSI_X710_I210_EN
GND 3
Pin1-2 closed: NCSI to OCP (Default)
Pin2-3 closed: NCSI to X710
J33: reset SYS/BMC SEL Connector
Signal Pin Pin Signal
COLD_RST_BTN_L 1 2 FP_RST_BTN_JP_L
FP_BMC_RST_BTN_N 3
Pin1-2 closed: SYS RESET (Default)
Pin2-3 closed: BMC RESET
J75: Clear CMOS Jumper
