34

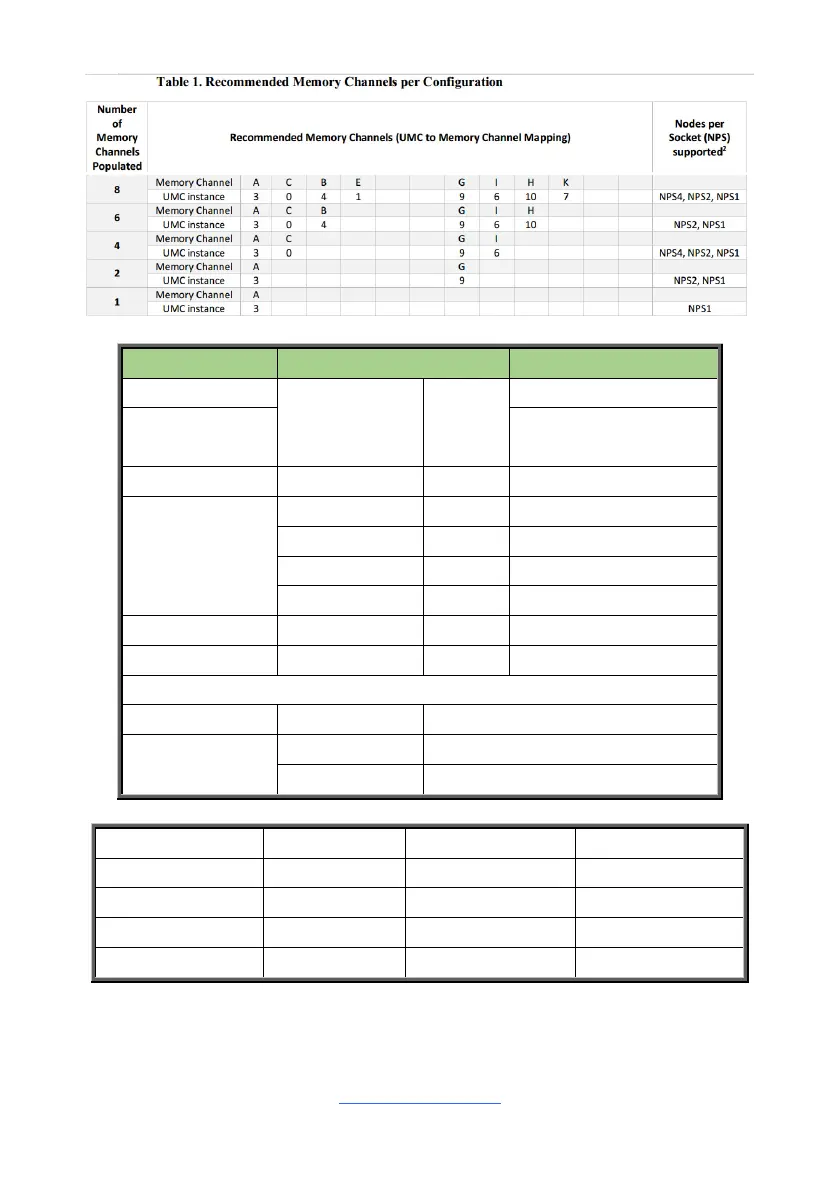

DIMM Population/Channel DDR5 Frequency MT/s
DIMM Type
DIMM 0 DIMM 1
Genoa platforms
14L 74mil low-DK PCB
stackup
RDIMM - 1R 4800
1R 1R 4000
- 2R 4800
1R 2R 3600
2R 2R 3600
3DS RDIMM* - 2SxR 4800
2SxR 2SxR 3600
*For 3DS RDIMM When x = 2
DIMM Ranks = 4
When x = 4
DIMM Ranks = 8
When x = 8
DIMM Ranks = 16
DIMM SLOT Silk screen DIMM SLOT Silk screen
P0_UMC3_CH_A0 P0_CHA_DIM0 P0_UMC9_CH_G0 P0_CHG_DIM0
P0_UMC4_CH_B0 P0_CHB_DIM0 P0_UMC10_CH_H0 P0_CHH_DIM0
P0_UMC0_CH_C0 P0_CHC_DIM0 P0_UMC6_CH_I0 P0_CHI_DIM0
P0_UMC1_CH_E0 P0_CHE_DIM0 P0_UMC7_CH_K0 P0_CHK_DIM0
