60
PESLOT3
Selects PCIE port Bifurcation for PCIE#5 slot.
X16 / x8x8 / x4x4x4x4
PESLOT4
Selects PCIE port Bifurcation for PCIE#6 slot
X16 / x8x8 / x4x4x4x4
PESLOT5
Selects PCIE port Bifurcation for PCIE#7/PCIE#8 slots
X16 / x8x8 / x4x4x4x4
NVME0/1/2/3
Selects PCIE port Bifurcation for PCIE#9/PCIE#10
X16 / x8x8 / x4x4x4x4

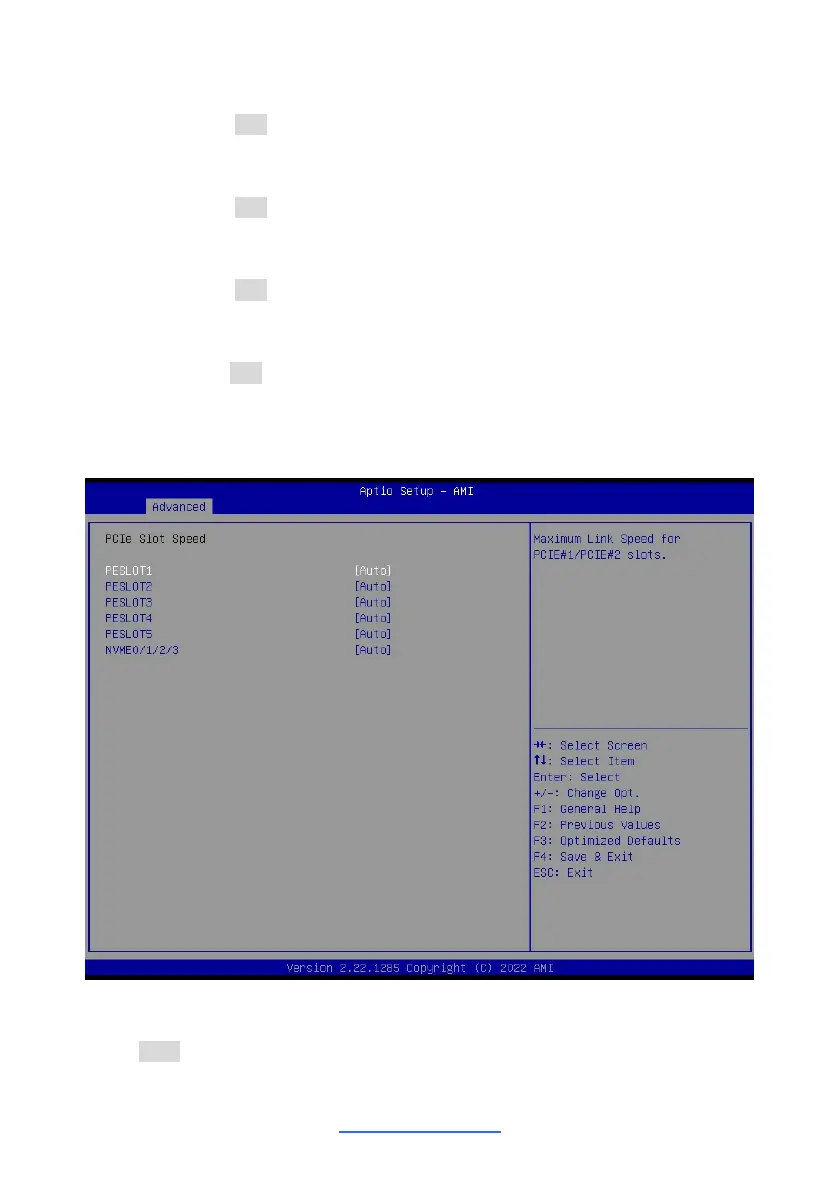

3.3.4.3 PCIe Slot Speed
PESLOT1
Maximum Link Speed for PCIE#1/PCIE#2 slots.
Auto / GEN1(2.5 GT/s) / GEN2(5 GT/s) / GEN3(8 GT/s) / GEN4(16 GT/s) /
GEN5 (32GT/s)
