TFP1326

Page 7 of 22

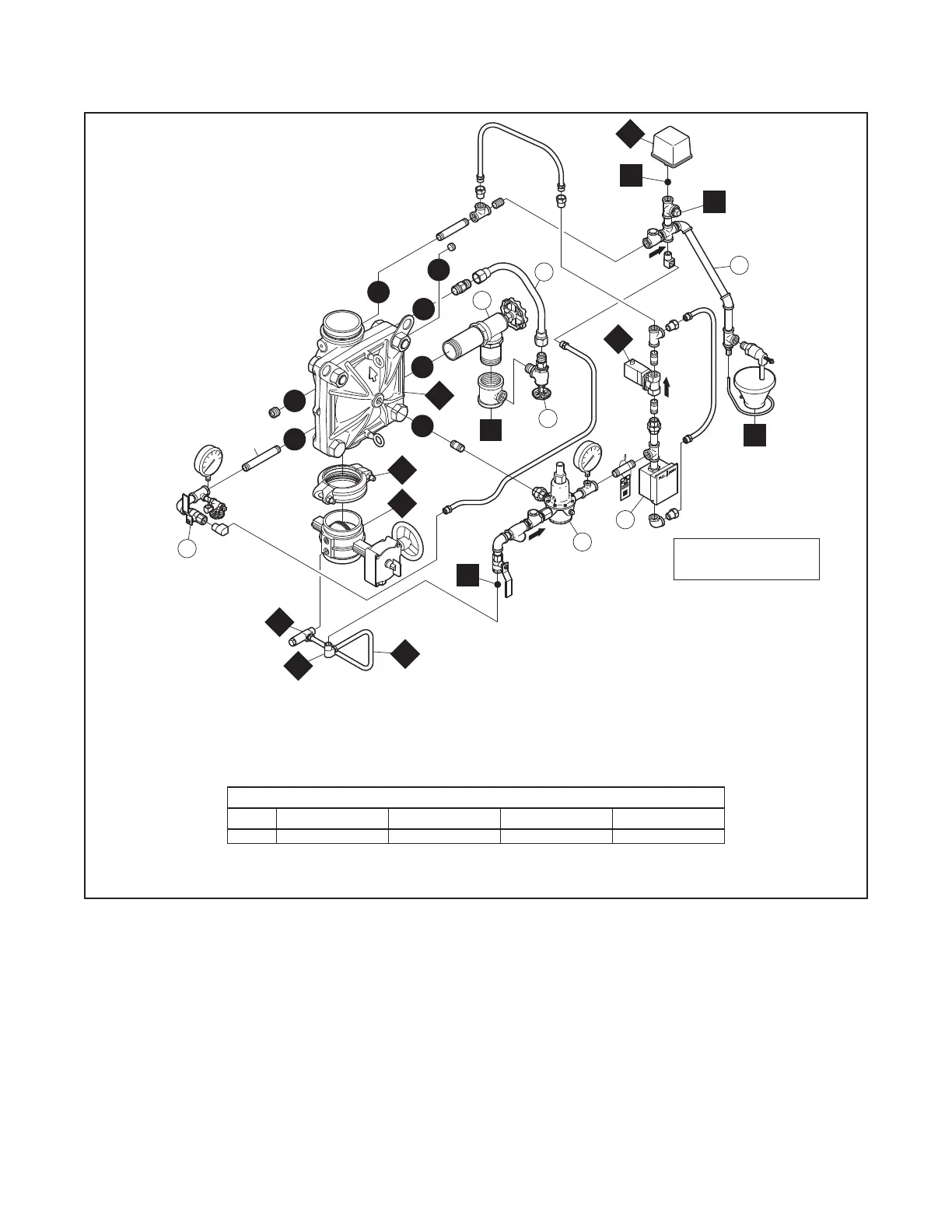

FIGURE 6

DV-5A VALVES — REMOTE-RESETTING, PRESSURE-REDUCING TRIM

SEMI-ASSEMBLED

Notes:

1. Port Connections P1 through P7 are described in Figure 2.

2. External Trim Connections C1 through C5 are described in Figure 9.

3. When ordering pre-assembled "DV-5A Valve with Galvanized Valve Trim" or pre-assembled "DV-5A Valve with Galvanized Valve Trim and

Buttery Valve", Items A1 through A8 are provided, as applicably related to valve size, and Item A5 is provided as P/N 2460566 described in

Technical Data Sheet TFP2180

4. When ordering DV-5A Trim separately from the DV-5A Valve, Items A1 through A8 are separately ordered, as applicably related to valve size. Water

Pressure Gauges for EMEA valve trim are also separately ordered.

Assemble in order

from A to G

NIPPLE SELECTION PER VALVE SIZE

NIPPLE 3 IN. (DN80) 4 IN. (DN100) 6 IN. (DN150) 8 IN. (DN200)

39 1/2" x 4-1/2" 1/2" x 5-1/2" 1/2" x 5-1/2" 1/2" x 6-3/4"
