TFP1326
Page 8 of 22
Notes:
1. Port Connections P1 through P7 are described in Figure 2.
2. External Trim Connections C1 through C5 are described in
Figure 9.
3. When ordering pre-assembled "DV-5A Valve with Gal-
vanized Valve Trim" or pre-assembled "DV-5A Valve with
Galvanized Valve Trim and Buttery Valve", Items A1 through
A8 are provided, as applicably related to valve size, and
Item A5 is provided as P/N 2460566 described in Technical
Data Sheet TFP2180
4. When ordering DV-5A Trim separately from the DV-5A Valve,
Items A1 through A8 are separately ordered, as applicably
related to valve size. Water Pressure Gauges for EMEA valve
trim are also separately ordered.
ITEM QTY. DESCRIPTION CH 3 IN. (DN80) 4 IN. (DN100) 6 IN. (DN150) 8 IN. (DN200)
1 1 1/4” GAUGE TEST VALVE 460051003 460051003 460051003 460051003
2 1 MC-2 MANUAL CONTROL STATION 545002000 545002000 545002000 545002000
3 1 AD-3 AUTOMATIC DRAIN VALVE 547932004 547932004 547932004 547932004
4 1 PRIMING SUPPLY RESTRICTION 545100051 545100051 1001514-04 1001514-06
5 1 PILOT VALVE 545100068 545100068 545100068 545100068
6 2 1/2” BALL VALVE 460501004 460501004 460501004 460501004
7 2 1/2” SWING CHECK VALVE 460491007 460491007 460491007 460491007
8 1 1/2” Y-STRAINER 523531006 523531006 523531006 523531006
9 1 3/4” ANGLE VALVE 460481010 460481010 460481010 460481010
10 1 ANGLE VALVE 460481011 460481012 460481012 460481012
11 1 DRIP FUNNEL BRACKET CONNECTOR 92211100 5 92211100 5 92211100 5 9 221110 05
12 1 DRIP FUNNEL BRACKET 92211100 3 92211100 3 92211100 3 9 221110 03
13 1 DRIP FUNNEL 923431007 923431007 923431007 923431007
14 2 FLARE FITTING 90° 1/2” NPT x 1/2” TUBE 545100062 545100062 545100062 545100062
15 4 FLARE FITTING 1/2” NPT x 1/2” TUBE 545100061 545100061 545100061 545100061
16 2 FLARE FITTING 3/4” NPT x 3/4” TUBE 545100063 545100063 545100063 545100063
17 2 PIPE PLUG
✓
1/4" 1/4" 1/4" 1/4"
18 1 SOCKET HEAD PIPE PLUG
✓
1/2" 1/2" 1/2" 1/2"
19 1 PIPE PLUG
✓
3/4" 3/4" 3/4" 3/4"
20 1 SOCKET HEAD PIPE PLUG
✓
3/4" 3/4" 3/4" 3/4"
21 2 UNION
✓
1/2" 1/2" 1/2" 1/2"
C4
C2
C5
C1
C3
P1
P2
P3
P6
P7
P4
P5
A1
A4
A3
A2
A4
A6
A7
A8
32
25
11
12
13
32
21
31
31
7
28
24
32
6
1
22
26
17
33
30
16
10
9
47
16
3
14
23
29
43
42
37
40
41
39
48
20
18
27
19
33
24
46
25
36
15
45
6
24
31
31
32
32
8
48
50
49
21
25
2
34
32
24
25
32
15
15
26
31
15
7
4
5
17
34
35
44
14

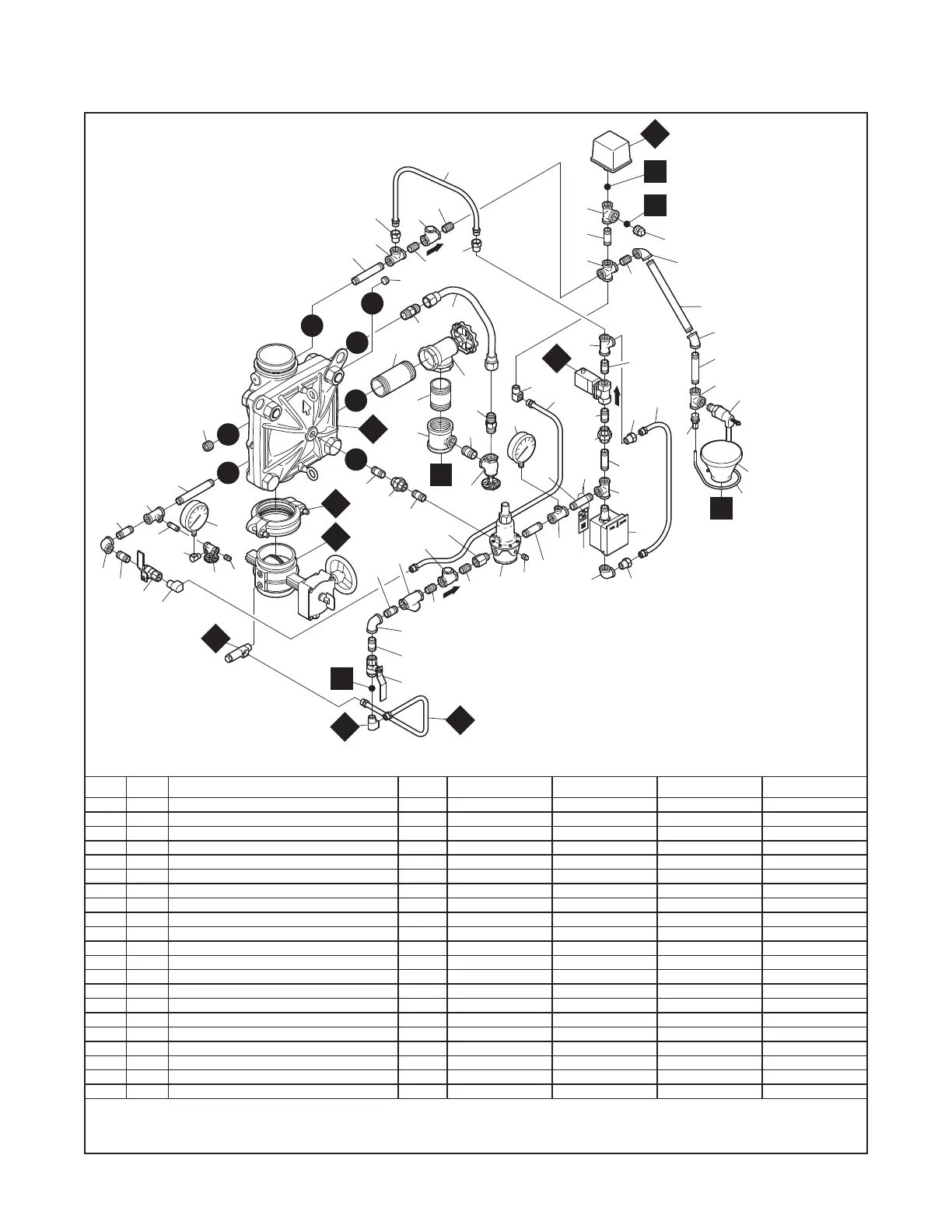

FIGURE 7 (1 OF 2)
DV-5A VALVES — REMOTE-RESETTING, PRESSURE-REDUCING TRIM
EXPLODED VIEW
