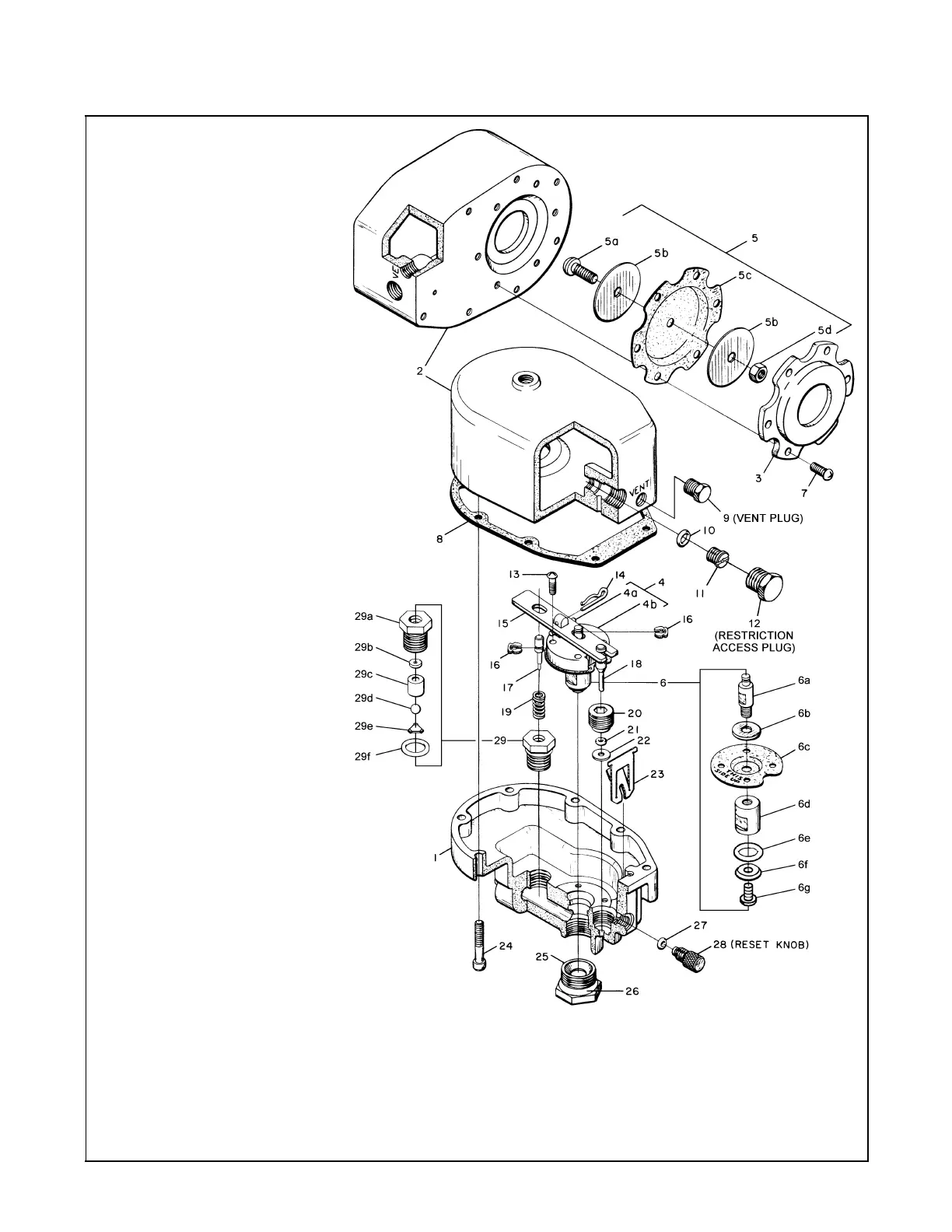

FIGURE 3
MODEL ACC-1 ACCELERATOR ASSEMBLY
NO. DESCRIPTION QTY. P/N
1Base 1 NR
2 Cover 1 NR
3 Upper Diaphragm
Plate 1 See (c)
4 Pivot Plate
Assembly 1 See (b)
aSpirolPin 1
b Pivot Plate 1
5 Plunger 1 See (a)
a Pan Hd. Machine
Screw 1
b Upper Diaphragm
Retaining Ring 2
c Upper Diaphragm 1
dJamNut 1
6 Exhaust Valve 1 See (a)
a Upper Plug 1
b Washer 1
c Lower Diaphragm 1
d Lower Plug 1
e O-Ring* 1
f O-Ring Retainer 1
g Exhaust Valve Screw 1
7 Rd. Head Machine
Screw,
1/4"-20 UNC x 5/8" 6 See (c)
8 Cover Gasket 1 See (a)
9 Vent Plug 1 See (c)
10 O-Ring* 1 See (a)
11 Restriction 1 See (a)
12 Restriction Access
Plug 1 See (c)
13 Pan Hd. Machine
Screw,
No. 10-32 UNF x 5/8" 4 See (b)
14 Cotter Pin 1 See (b)
15 Lever 1 See (b)
16 Retaining Ring 1 See (b)
17 Anti-Flood Valve 1 See (b)
18 Relief Valve 1 See (b)
19 Spring 1 See (b)
20 Relief Valve Seat 1 See (b)
21 O-Ring* 1 See (b)
22 Seal Washer 1 See (b)
23 Latch 1 See (a)
24 Fillerster Hd.
Machine Screw,
1/4"-20 UNC x 1-1/2" 8 See (c)
25 Plug Seat 1 See (c)
26 O-Ring* 1 See (c)
27 O-Ring* 1 See (a)
28 Reset Knob 1 See (c)
29 Anti-Flood Seat
Assembly
w/Ball Float 1 See (b)
a Insert 1
b Seal 1
c Guide 1
dBall 1
eClip 1
f O-Ring* 1
* Requires thin film of
FS3452 Fluorosilicone Grease
(a) Repair Parts Kit (a)
Includes Items 5, 6, 8,
10, 11, 23, 27 &
1.5 grams of FS3452 92-311-1-116
(b) Replacement Parts
Kit (b) Includes Items
4, 13-22, 29 &
1.5 grams of FS3452 92-311-1-117
(c) Replacement Parts
Kit (c) Includes Items
3, 7, 9, 12, 24-26, 28,
& 1.5 grams of FS3452 92-311-1-118
NR: Not Replaceable
Page 3 of 10
TFP1112
To Next Page
