Tyco QRS User Manual

TFP110 0
Page 12 of 16
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
1 2
3
4
5
6 7 8 9
S
SHIELD
NOT
USED
5.1 K EOLR
LOCATE
AT QRS
#5403545
MANUAL
SEE POTTER
#5403545
MANUAL
SEE POTTER
#5403545
MANUAL
SEE POTTER
DETECTION
#5403545
MANUAL
SEE POTTER
NOT
USED
PANEL
SYSTEM
SYSTEM
QRS
SWITCH
PROGRAM #13
WIRING DIAGRAM
REFERENCE
PFC-4410RC
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4
SUP + SUP -
ZONE 3 ZONE 4ZONE 2ZONE 1SUPERVISORYABORT
BROWN
BLUE
YELLOW
ORANGE
VIOLET
GREEN
BLACK
RED
EOLR
ALARM
AIR
LOW
TAMPER 24VDC
JUMPER
JUMPER
HIGH/
GREEN
BROWN
RED
BLACK
BLUE
VIOLET
RELEASING
SOLENOID
5.1K
LOCATION
SOLENOID
INSTALL AT
PART #3005012
DIODE ASS'Y
END OF LINE
EOLR
ORANGE
YELLOW
RED
BLACK
24VNR DC AUX. POWER
24VR DC
GND.
IF OPTIONAL
DO NOT CONNECT SHIELD
SHIELDED CABLE IS USED
ALPHA WIRE TYPE 5198C
OR EQUIVALENT
OPTIONAL BUT
NOT REQUIRED:

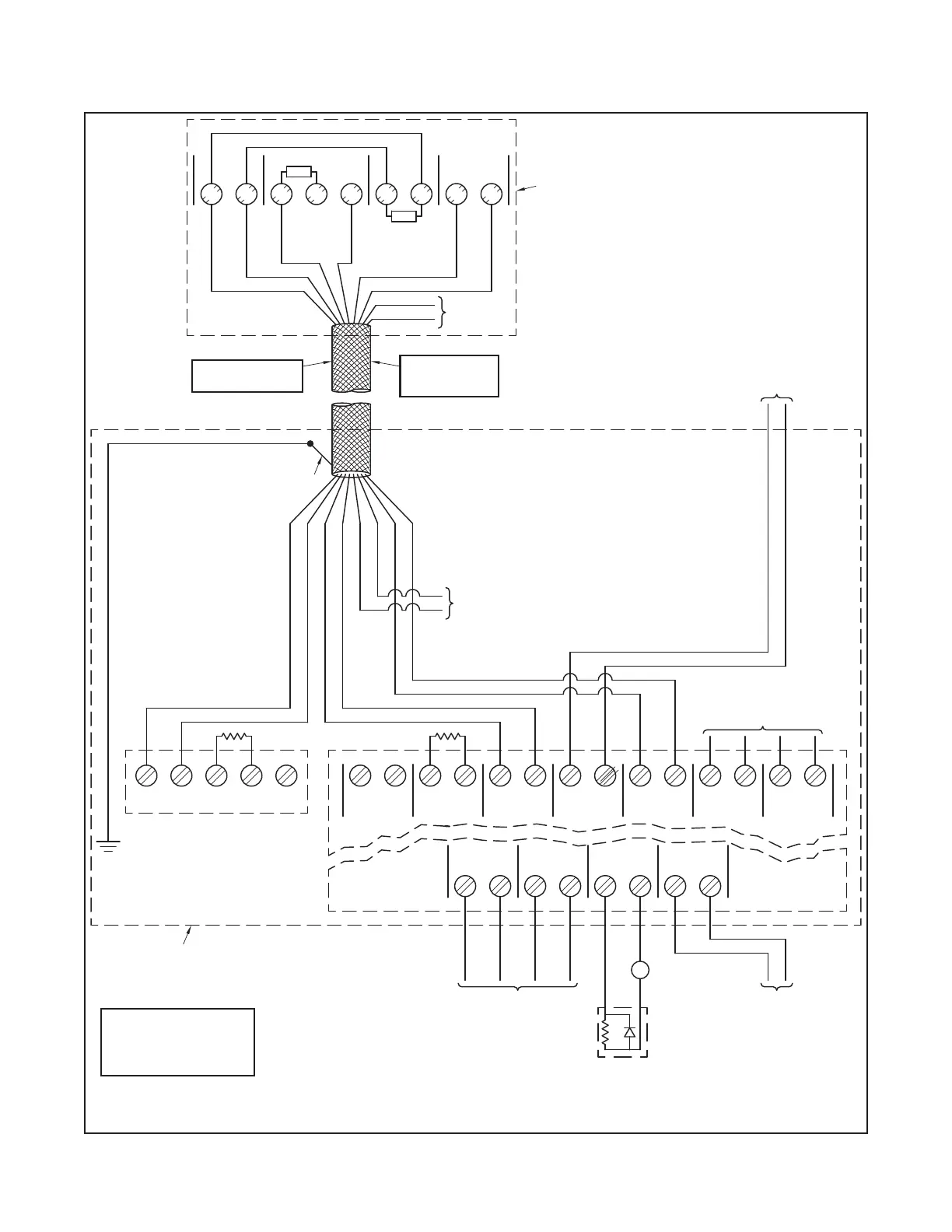

FIGURE 6
WIRING DIAGRAM FOR THE MODEL QRS ELECTRONIC ACCELERATOR
FOR DOUBLE INTERLOCK ELECTRIC/ELECTRIC PREACTION SYSTEMS
