Tyco STAR Model A User Manual

STAR SPRINKLER INC.
Page 6
2-4.1.10

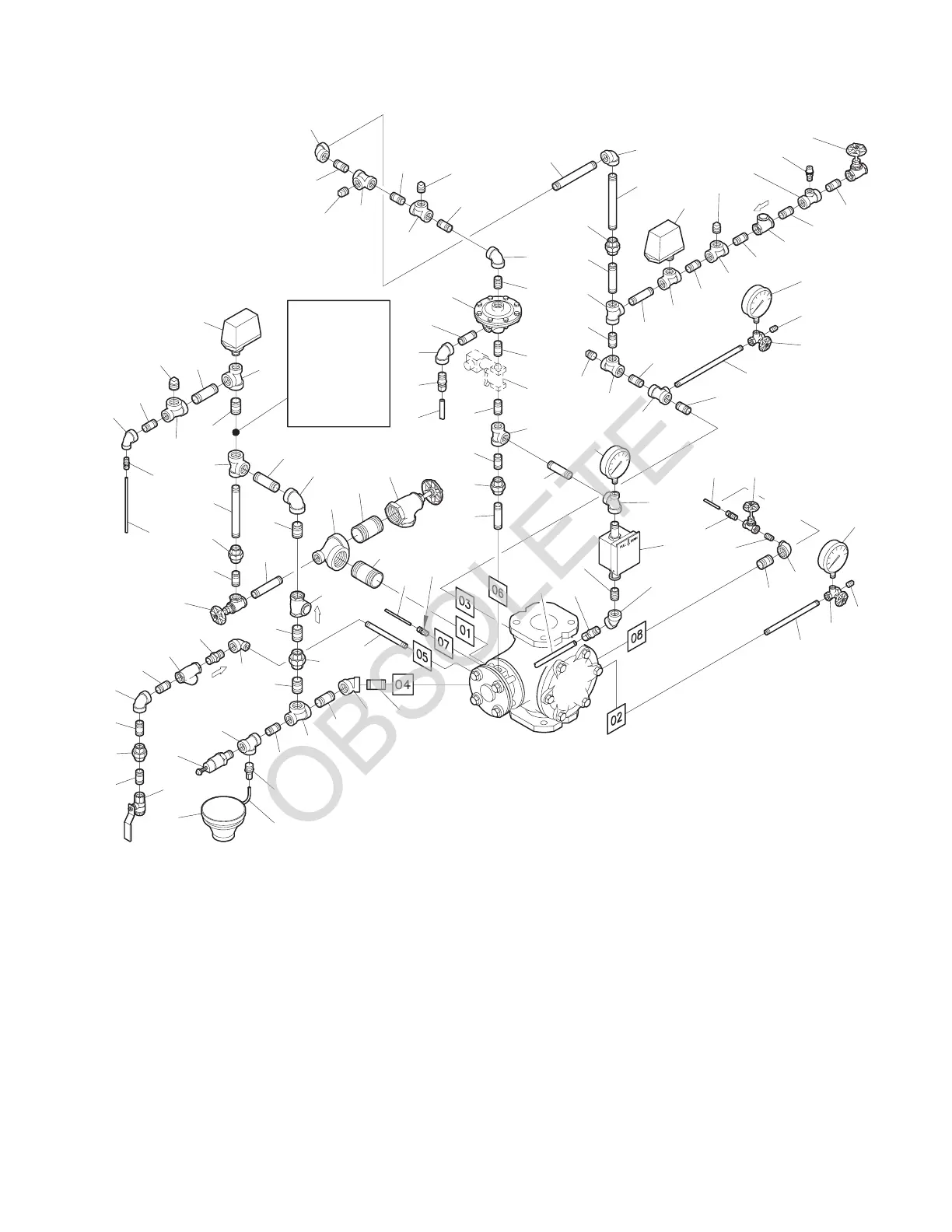

FIGURE 6 — 3 INCH (DN80) ELECTRIC/PNEUMATIC DOUBLE INTERLOCK PREACTION TRIM (#3008)
34
51
51
1
3
49
51
31
31
37
51
51
34
27
29
10
31
51
37
53
37
51
15
51
51
7
51
52
30
50
37
14
*
39
51
34
8
51
5
54
33
58
56
37
51
37
34
33
44
51
12
37
22
21
20
60
42 60
NOTES:
1. SEE FIGURE 3 FOR PORT
IDENTIFICATION.
PORT "07" MUST VENT TO
ATMOSPHERE FOR PROPER
VALVE OPERATION.
ROUTE ALL TUBING, ITEMS
25, 26, 28 & 29, TO DRIP
*
FUNNEL, ITEM 22.
2.
48
3
30
2
39
37
43
24
59
46
15° DOWN
SLOPE
*
9
*
53
35
26
4
28
27
31
2
62
51
33
17
51
34
51
33
13
19
*
62
47
16
18
36
TINT)
(GREEN
23
11
25
51
59
40
59
59
59
TINT)
(GREEN
23
*
26
61
LOCATION
FOR OPTIONAL
ELECTRICALLY
SUPERVISED
N.O. ALARM
(BVS-3/4")
VALVE
41
45
55
57
44
CONTROL
44
51
36
32
61
44
6
53
38
50
NO. DESCRIPTION....QTY. PART
1 250 lb. Air Pressure
Gauge ......... 1 #923431012
2 300 lb. Water Pressure
Gauge ......... 2 #923431005
3 1/4" Gauge Test Valve . 2 #460051002
4 Manual Control Station,
S480 .......... 1 #4430
5 Solenoid Valve
(Order Separately Per
Data Sheet 2-5.1.31) . 1
6 Waterflow Pressure
Alarm Switch, PS10-2A 1 #542811002
7 Low Air Pressure
Alarm Switch, PS40-2A 1 #542811003
8 Dry Pilot Actuator, S440 1 #4515
9 1/4"GlobeValve.... 1 #460471002
10 1/4" Pressure Relief
Valve.......... 1 #923431020
11 1/2"AngleValve.... 1 #460481004
12 1/2" Automatic Drain
Valve,S410 ...... 1 #1133-1
13 1/2"BallValve..... 1 #923001002
NO. DESCRIPTION . . . QTY. PART
14 1/2" Globe Valve ....1 #460471004
15 1/2" Swing Check Valve 1 #460491004
16 1/2" Y-Strainer .....1 #523531005
17 1/2" Spring Loaded
CheckValve.......1 #923221002
18 3/4" Swing Check Valve
with 3/32" Orifice ....1 #524031005
19 1-1/2" Angle Valve . . . 1 #460481008
20 Drip Funnel
Support Plug ......1 #922111005
21 Drip Funnel
Support .........1 #922111003
22 Drip Funnel .......1 #923431007
23 3/32" Vent Fitting ....1 #920321002
24 1/4" Tube Connector . . 1 CH
25 1/4" Tube, 18" Long . . . 1 CH
26 1/4" Tube, 30" Long . . . 1 CH
27 1/2" Tube Connector . . 2 CH
28 1/2" Tube, 18" Long . . . 1 CH
29 1/2" Tube, 24" Long . . . 1 CH
30 1/4" Plug .........2 CH
31 1/2" Plug .........4 CH
32 3/4" Plug .........1 CH
33 1/2" Union........4 CH
34 1/2" 90° Elbow .....5 CH
35 1/2" 45° Elbow .....1 CH
36 1/2" x 1/4" Reducing
Elbow ..........1 CH
37 1/2" Tee .........8 CH
NO. DESCRIPTION . . . .QTY. PART
38 1/2" x 1/4" x 1/2" Tee . 1 CH
39 1/2" x 1/2" x 1/4" Tee . 2 CH
40 3/4"Union ....... 1 CH
41 3/4"90°Elbow..... 1 CH
42 3/4"45°Elbow..... 1 CH
43 3/4" x 1/4" Reducing
Elbow.......... 1 CH
44 3/4" x 1/2" x 3/4" Tee . 3 CH
45 1-1/2" x 1/2" x 1-1/2"
Tee........... 1 CH
46 1/4" x Close Nipple . . 1 CH
47 1/4"x6"Nipple..... 1 CH
48 1/4"x8"Nipple..... 1 CH
49 1/4"x10"Nipple.... 1 CH
50 1/2" x Close Nipple . . 2 CH
51 1/2" x 1-1/2" Nipple . . 17 CH
52 1/2"x2"Nipple..... 1 CH
53 1/2"x3"Nipple..... 3 CH
54 1/2" x 3-1/2" Nipple . . 1 CH
55 1/2"x4"Nipple..... 1 CH
56 1/2"x6"Nipple..... 1 CH
57 1/2" x 6-1/2" Nipple . . 1 CH
58 1/2"x7"Nipple .... 1 CH
59 3/4" x 1-1/2" Nipple . . 5 CH
60 3/4"x2"Nipple..... 2 CH
61 3/4"x3"Nipple..... 1 CH
62 1-1/2" x 3" Nipple . . . 2 CH
CH: Common Hardware
OBSOLETE
