under co u n ter extreme
Under
-Sink
Installation
Under-Sink Installation
1. Shut off both hot and cold water main supply at pipe under the sink.
2. Locate the cold water supply line valve.
3. Disconnect faucet cold water supply line from main cold water pipe–use
towel to catch small amount of water that may come from faucet supply
line.
4. When connecting T-Adapter to cold water pipe, be sure to use plumbing
pipe thread seal tape (not included) to prevent leaks.
5. Reconnect faucet cold water supply line to T-Adapter. (now secured
to main cold waterpipe)
6. Be sure all connections are secure but do not over tighten.
※Do not turn on main water supply until all hoses are properly installed
to the unit.

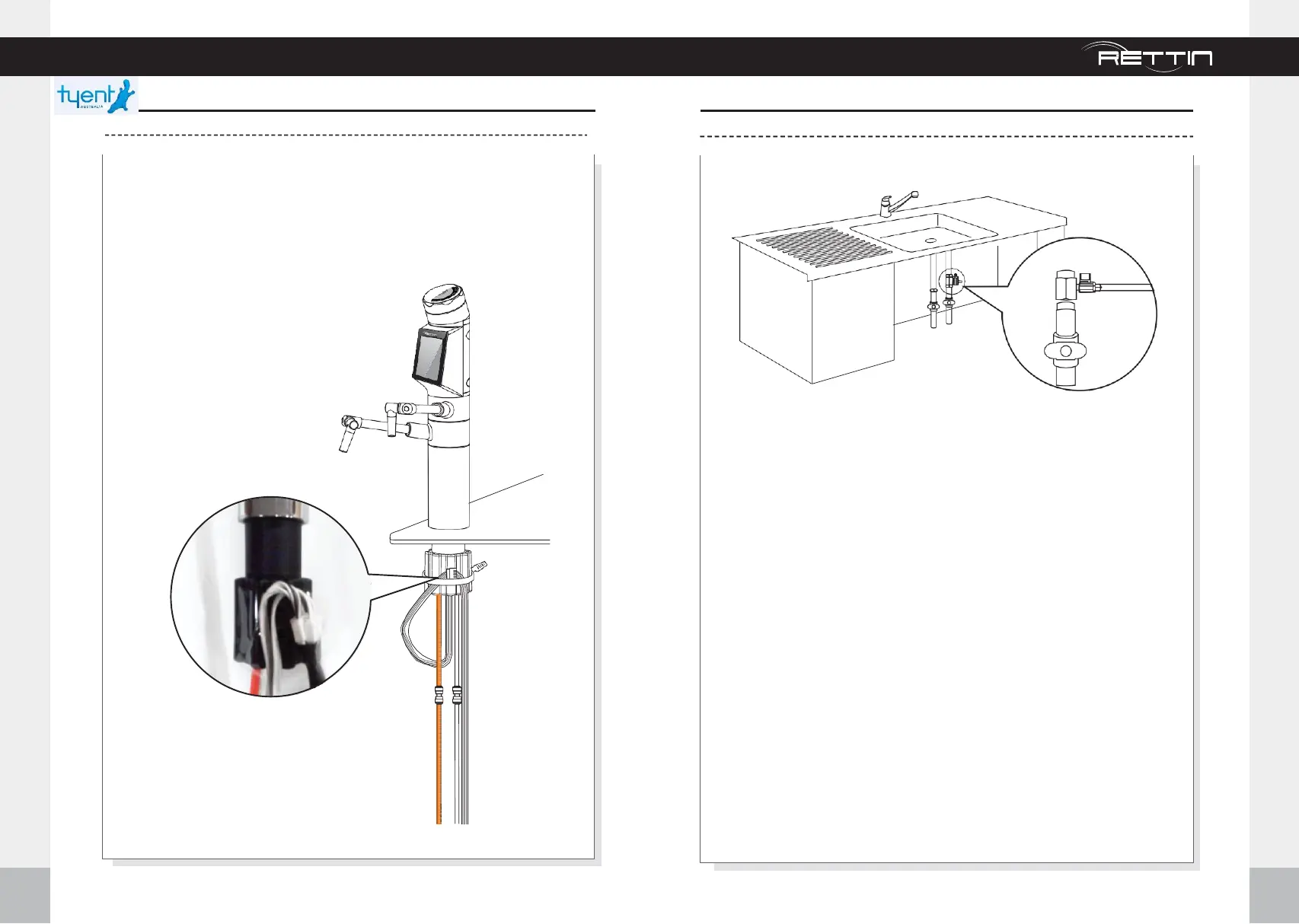

Placement of the faucet tower harness connections
When Installing the UCE faucet tower, it is a good idea to secure the
harness connections to the side of the tower nut that secures the tower to
the counter, this way if any water leakage occurs from the counter top it will
not drain or leak into harness connectors and cause corrosion on the
connectors.
Placement
18
19
of
the
faucet
tower
harness
co nnec ti ons
