Tyler Ro-Tap RX-29-E - Parts Diagram and Parts List

13
RX-29 E Ro-Tap
®

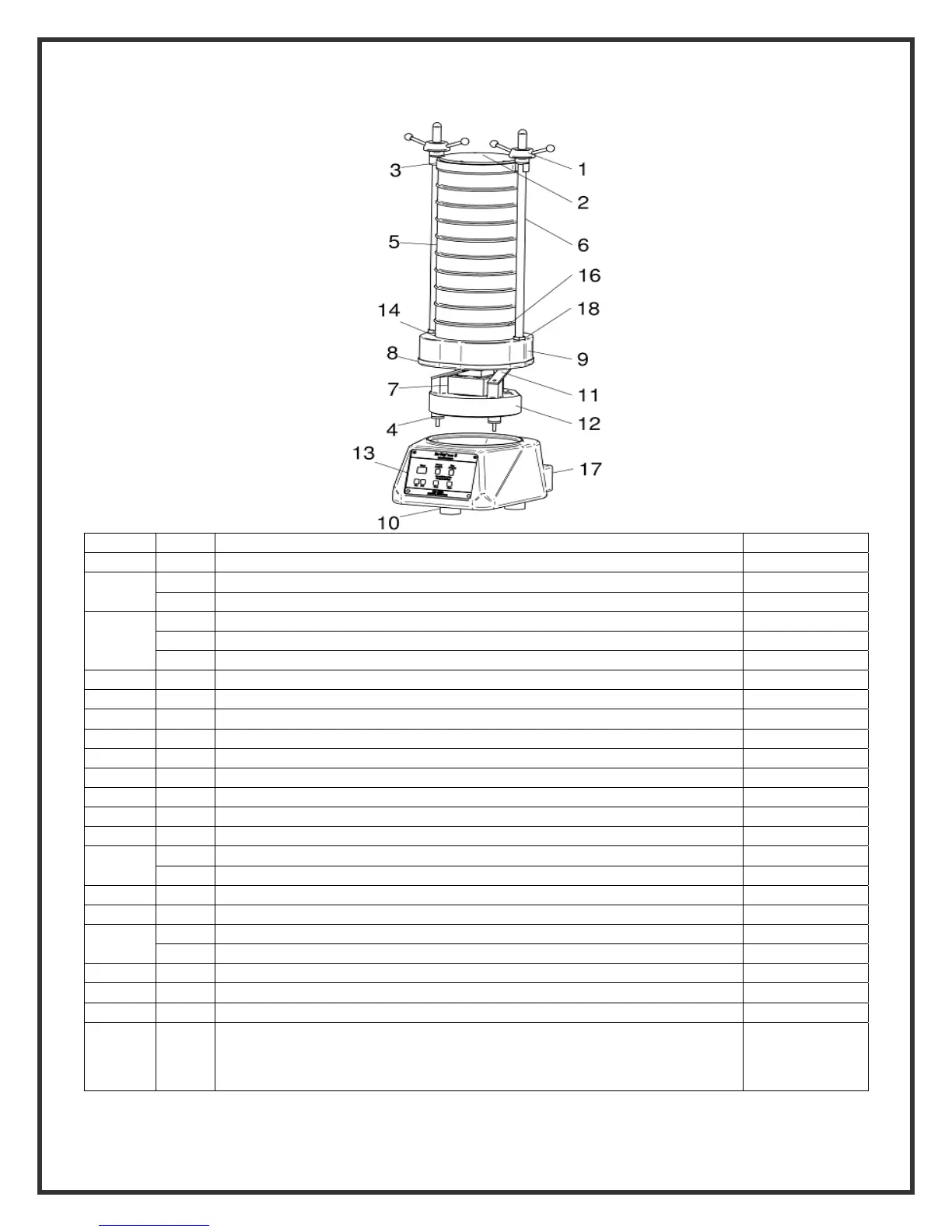

PARTS DIAGRAM AND PARTS LIST
Item # Piece Designation Article #
1 2 Nuts for clamping system Easy Lock® 00560129
1 Inspection glass without hole for machine cover (dry) 00561499 2
1 Inspection glass with hole for machine cover (wet) 00561507
1 Cover with inspection glass 00561521
1 Cover without inspection glass 00561514
3
1 Cover with inspection glass and wide spreading spray diffuser 00561545
4 3 Rubber buffer 66000074
5 Test sieves (sold separately)
6 2 Guide rods, clamping system Easy Lock®, 660 mm long 00560154
7 1 Oscillation magnet 65300016
8 1 Rubber profile for vibration body 00560441
9 1 Vibration body 68500312
10 3 Rubberized pads 00560014
11 3 Leaf spring 68500231
12 1 Base plate 68500311
1 Separate control unit 00560169 13
1 Front panel with control board
14 1 Rubber ring for vibration body Ø 204 / Ø 160 68500015
16 1 Sieve pan with outlet
1 Plug connection with main switch and fuse box 17
1 Plate with cable with screw fitting
18 2 Counter nut
19 1 Precision fuse, 20x5 mm, 3, 25 Ampere MT (not shown) 65100000
20 1 Rubber seal for cover (not shown) 00560434
*Call Customer Service for current pricing
800.321.6188
