(2) High-capacity fuse (50 A)
This Ride on lawnmower is equipped
with three fuses for wiring.
These fuses are blown to cut cur-
rent to the electric circuit in order to
protect wiring. Find the cause for
blown fuses and replace them with
the specied genuine parts.
T9406
Open circuitNormal
<Inspection>

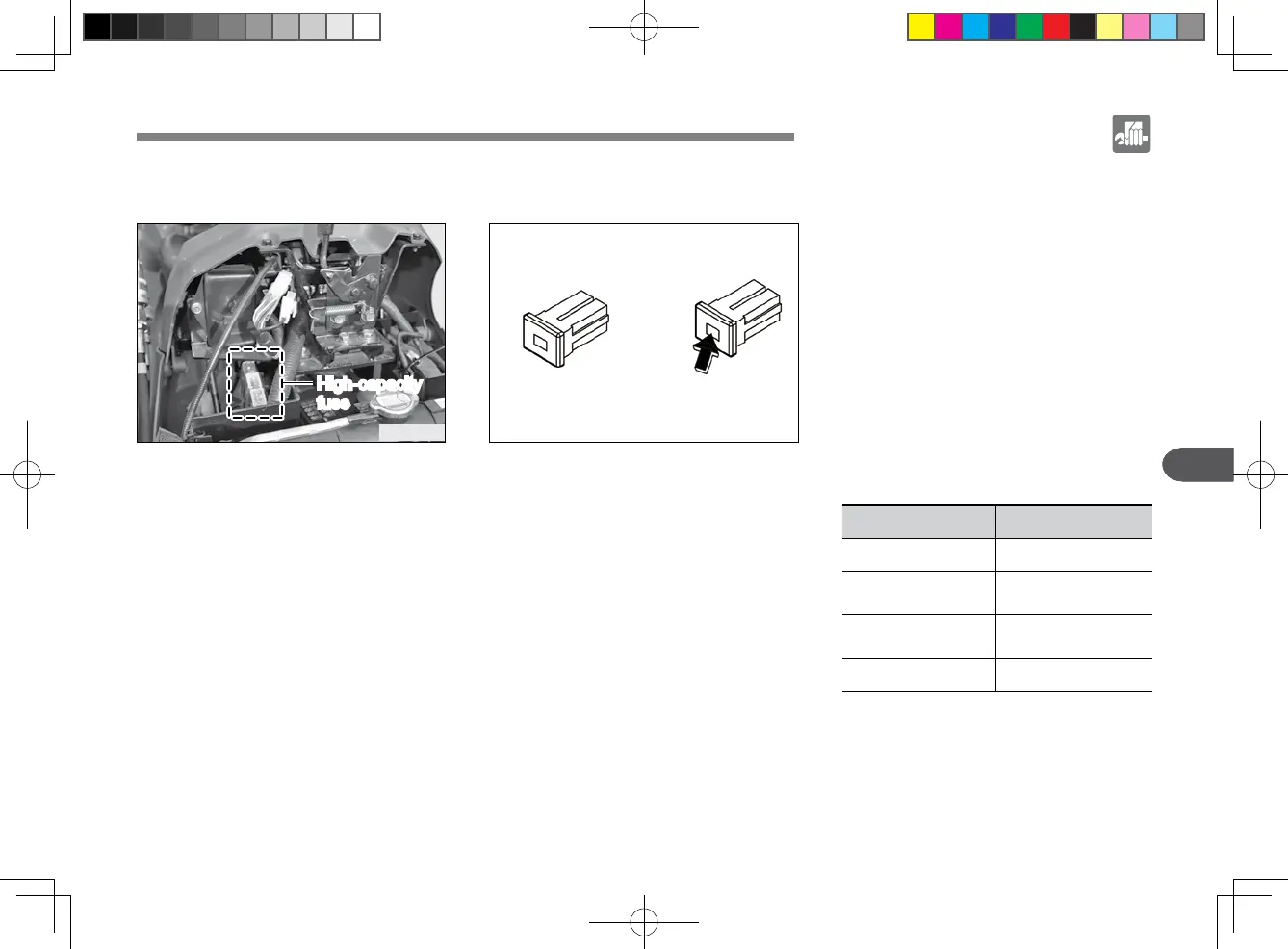

Check the fuse through the trans-
parent window to see if it is blown.
High-capacity
fuse
T19O516A
REPLACING LAMP BULB
If a lamp does not come on by oper-
ating the corresponding switch:
① Check the corresponding fuse.
② If the fuse is intact, remove the
bulb socket from the lamp.
③ Remove the bulb from the socket
and check for blown lament.
④ If the lament is blown, replace
the bulb with a new bulb with the
same capacity.
►
BULB SPECIFICATIONS
Headlamp 12V H8 35W
Turn signal lamp
(Left)
12V 21W
Turn signal lamp
(Right)
12V 21W
Position lamp
12V 5W
