TYM T194 - Check and ADJUST each PART

6 - 18
MAINTENANCE AND SERVICE
11. CHECK AND ADJUST EACH PART

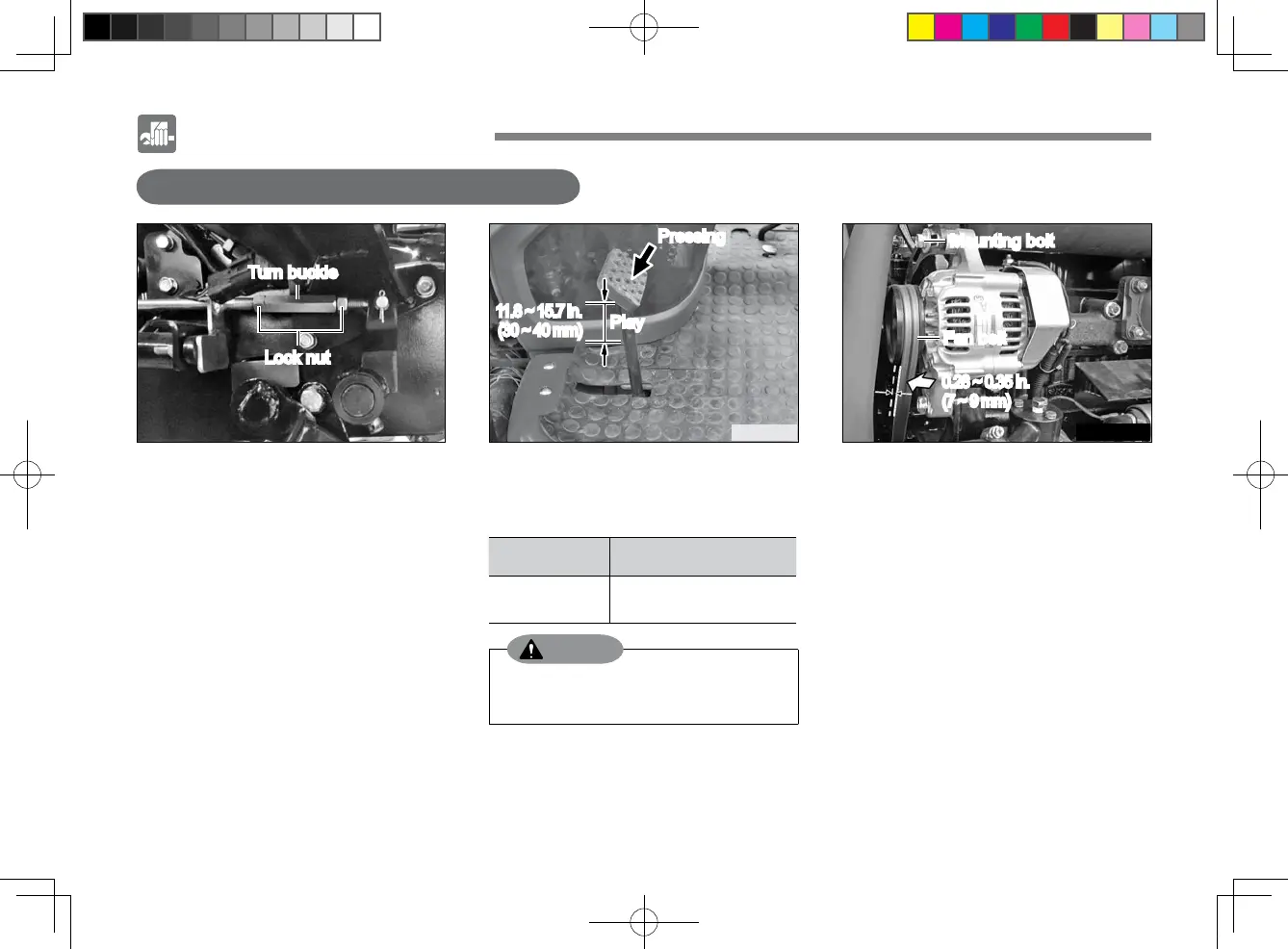

BRAKE PEDAL PLAY
Depress the pedal lightly with a
hand to check its play.
►
Play
Pressing
DIVISION SPECIFIED VALUE
Play
11.8 ~ 15.7 in.
(30 ~ 40 mm)
11.8 ~ 15.7 in.
(30 ~ 40 mm)
T19O517A
CHECKING AND ADJUST-
ING FAN BELT
Check and adjust the fan belt's ten-
sion periodically.
①
Unscrew the alternator mounting
bolt slightly and move the alter-
nator to adjust the tension.
② Check the belt's tension.
Press the middle of the belt with
13.2 ~ 15.4 Ib (6 ~ 7 kg) of force.
It is okay when the belt is deect
-
ed for 0.28 ~ 0.35 in. (7 ~ 9 mm).
►
T254O525B
Mounting bolt
Fan belt
CHECKING AND ADJUST-
ING BRAKE PEDAL
The brake pedal's play increases as
it is used for an extended period of
time. If its play is excessive, adjust it.
<Adjustment>
① Unscrew the lock nut and turn
the adjusting nut to adjust the
play (left and right).
② Turning it counterclockwise in
-
creases the play while turning it
clockwise decreases the play.
③ After adjustment, tighten the lock
nut rmly.
►
Lock nut
Turn buckle
0.28 ~ 0.35 in.
(7 ~ 9 mm)
After adjustment, confirm the
operating state.
•
