CHECKING ELECTRIC WIR-
ING
(1) Loo se wir ing t erm ina ls can
cause contact failure and dam-
aged wiring can lead to perfor-
mance deterioration of electric
devices, short circuit and fire.
Replace or re pair aged an d
damaged wirings.
(2) If wiring sheath is peeled off,
wrap wiring with insulating tape.
(3) If fasteners or bands to fix wir-
ings are damaged, fix wirings
with clamps.
(4) Have wiring checked by your
workshop once a year regularly
to avoid re.
►
CHECKING AND REPLACING
FUSE
(1) Body fuse box
Fuses are installed in this Ride on
lawnmower to prevent any possible
accident in case of wiring circuit
malfunction.
►

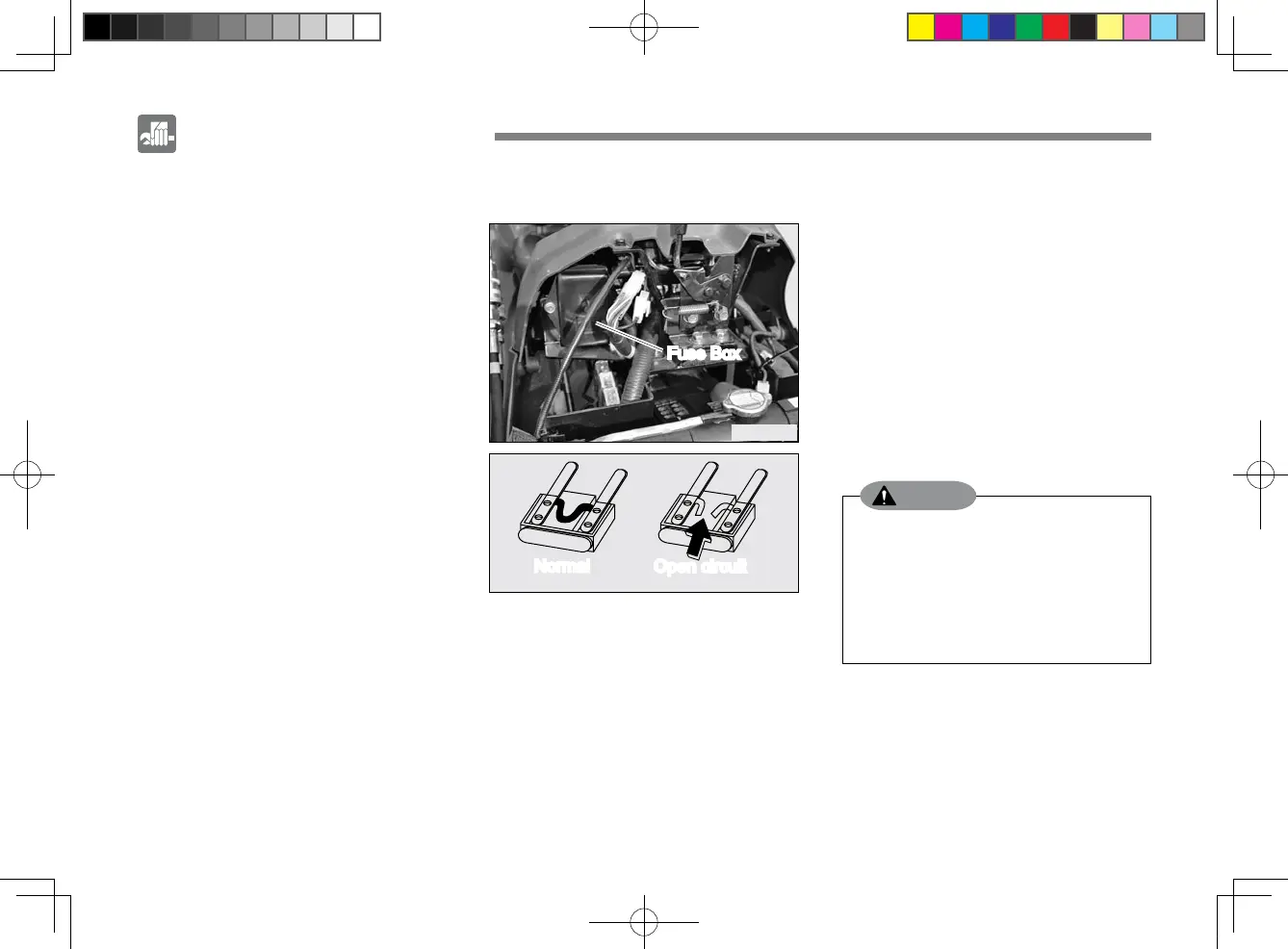

T19O515A
Fuse Box
Open circuit
T254O533A
Normal
If the electric system is malfunction-
ing during driving, check for any
blown fuse.
①
Remove the cover of the fuse box.
②
Remove the blown fuse.
③
Fit a new fuse with the same ca-
pacity.
④
The function and capacity of each
fuse are indicated on the cover of
the fuse box.
If using fuses other than the
specified, wirings can be over-
heated, leading to a re. Never
use a fuse with different capac-
ity. Also, never use a steel wire
or foil instead of a fuse.
•
WARNING
