TK0311A
(L)
Front Link
TK0312A
Front Bracket
Groove

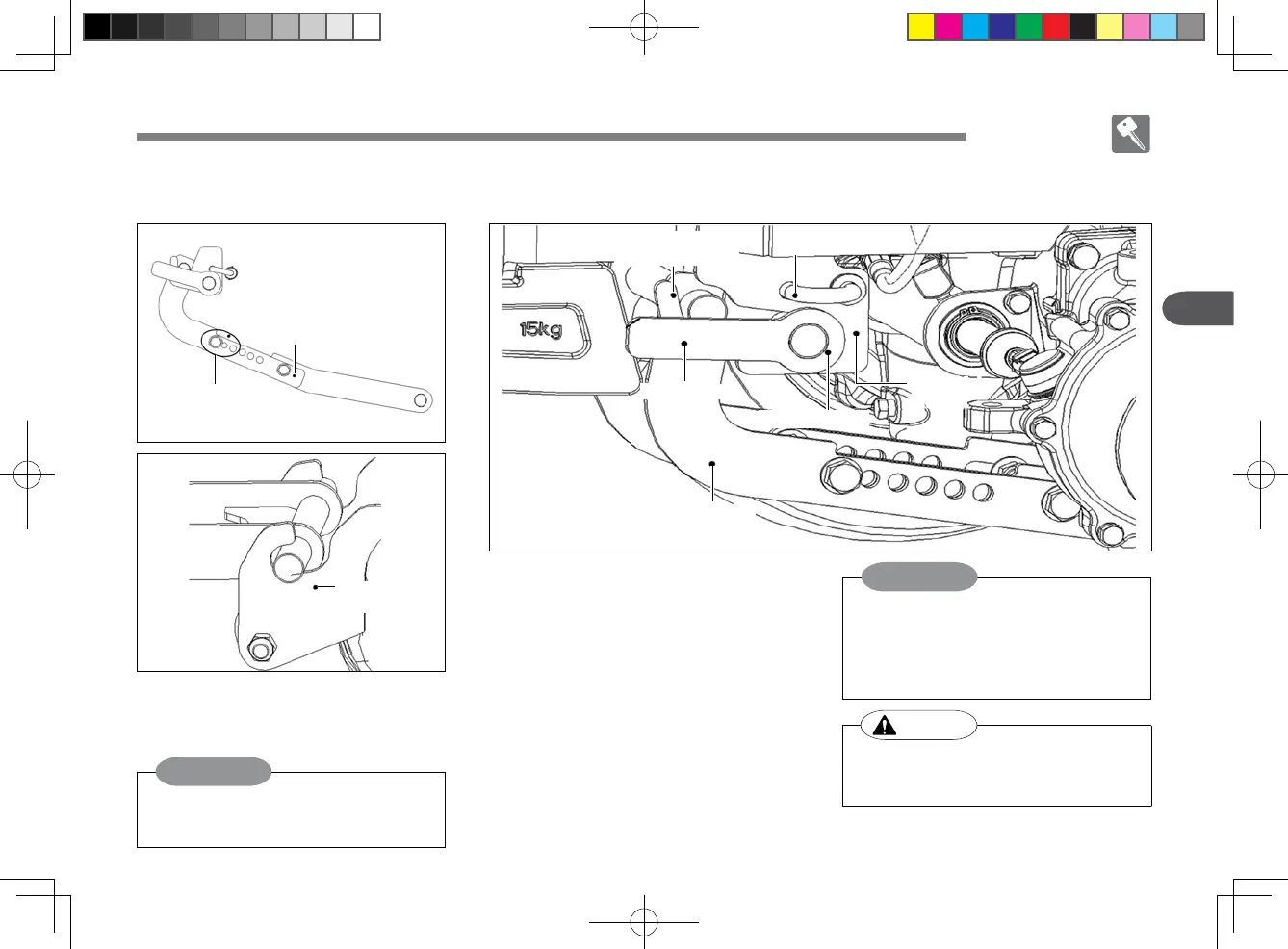

FRONT LINK
1. Hook the front link to the front brack-
et groove as shown in the gure.
►
Make sure the position (L) of the
front link is 1st or 2nd hole.
NOTE
TK0313A
U pin
Lever Fulcrum
Front Link
Bracket
Front Lever
Lever Fulcrum
Groove
Front Link
MOUNTING FRONT LINK
1. Position the front lever to the front
link bracket.
2. Pull and lock the U pin. Then lower
the front lever.
3. Hook the front link to the lever ful-
crum, and lift the front lever.
4. Release the U pin to lock the front
lever.
►
When hooking the front link to the
lever fulcrum, normal position of
the lever fulcrum groove is open
to downward.
NOTE
Check that the front lever is
locked securely with the L pin.
•
CAUTION
