SWITCHES AND GAUGES

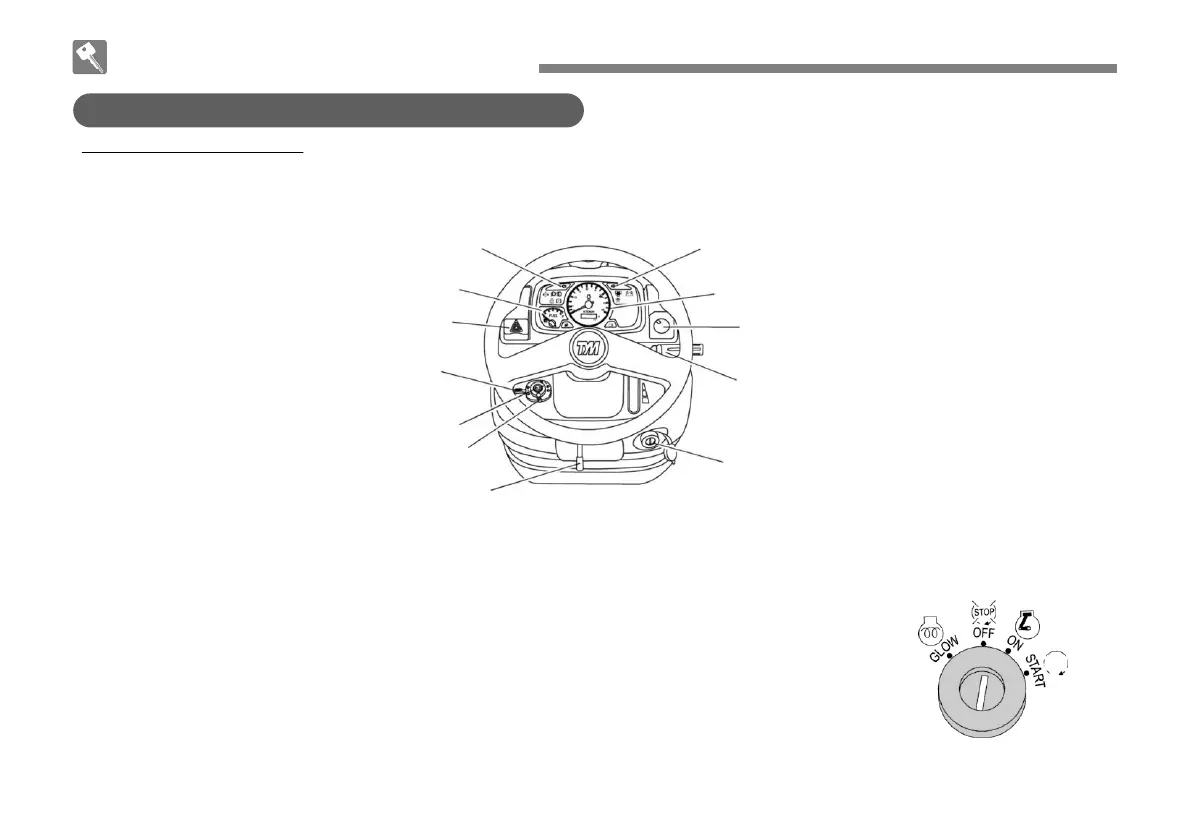

1. INSTRUMENT PANEL AND CONTROLS
DESCRIPTION OF OPERATING SYSTEM
3-2
① KEY SWITCH
『OFF』 ― The key can be inserted or removed.
『ON』 ― The electric circuit is on.
『GLOW』 ― Glow plugs pre-heat the combustion chamber.
『START』 ― The starter motor is engaged.
When the key is released it will automatically return to the『ON』position.
Right Turn Signal Lamp
Tachometer
Hand Throttle Lever
Left Turn Signal Lamp
Hazard Warning
Signal S/W
Turn Signal S/W
Horn S/W
Head Lamp S/W
Key S/W
Parking Brake Lever
PTO S/W
Fuel Gauge
To Next Page
