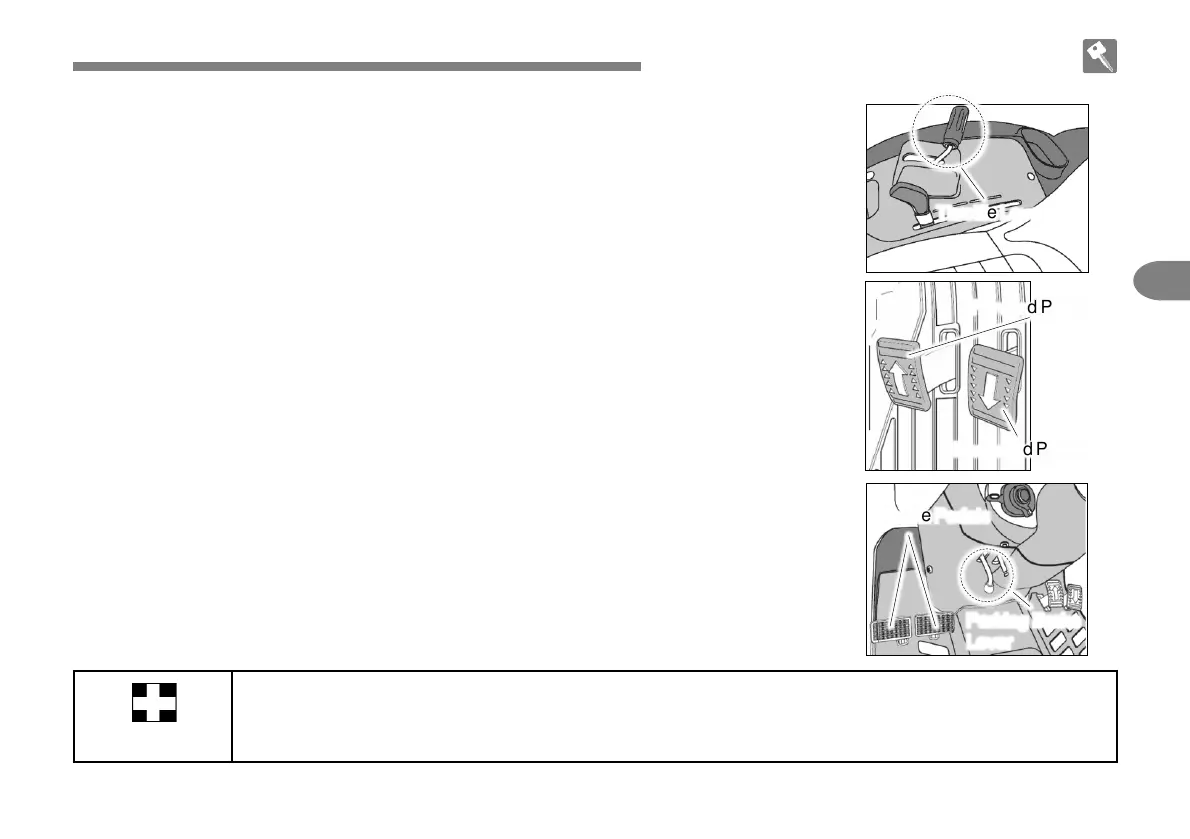

■ Throttle Lever
The hand throttle lever is used to change engine speed.
Pulling the throttle lever toward the operator to decreases engine speed.
Pushing it away from the operator to increases engine speed.
■ Forward/Backward Pedal
The forward/backward pedal is located in the RHS of the operator floor.
Depress the left forward pedal to move forward, depress the right backward pedal
to move backward.
Traveling speed can be vary on amount of depressing a pedal.
The forward/backward pedal will return to neutral position and the tractor will stop
when the forward/backward pedal is released.
■ Brake Pedals
Brake pedals are used for stopping the tractor or assisting in turning the tractor in
the filed.
■ Parking Brake Lever
Push the brake pedal down while pulling the parking brake lever up to engage.
Press the brake pedal to release parking brake.
DESCRIPTION OF OPERATING SYSTEM
ThrottleLever
ForwardPedal
BackwardPedal
BrakePedals
Parking Brake
Lever
IMPORTANT
Traveling with the parking brake engaged will damage the brakes.
