CAUTION
Always set the knob to lock when
1. Traveling on the road.
2. Replacing tires or blades on an implement.
3. Making adjustments to an implement.
Sudden dropping of an implement due to hydraulic problems can cause serious injury or death.
3-16

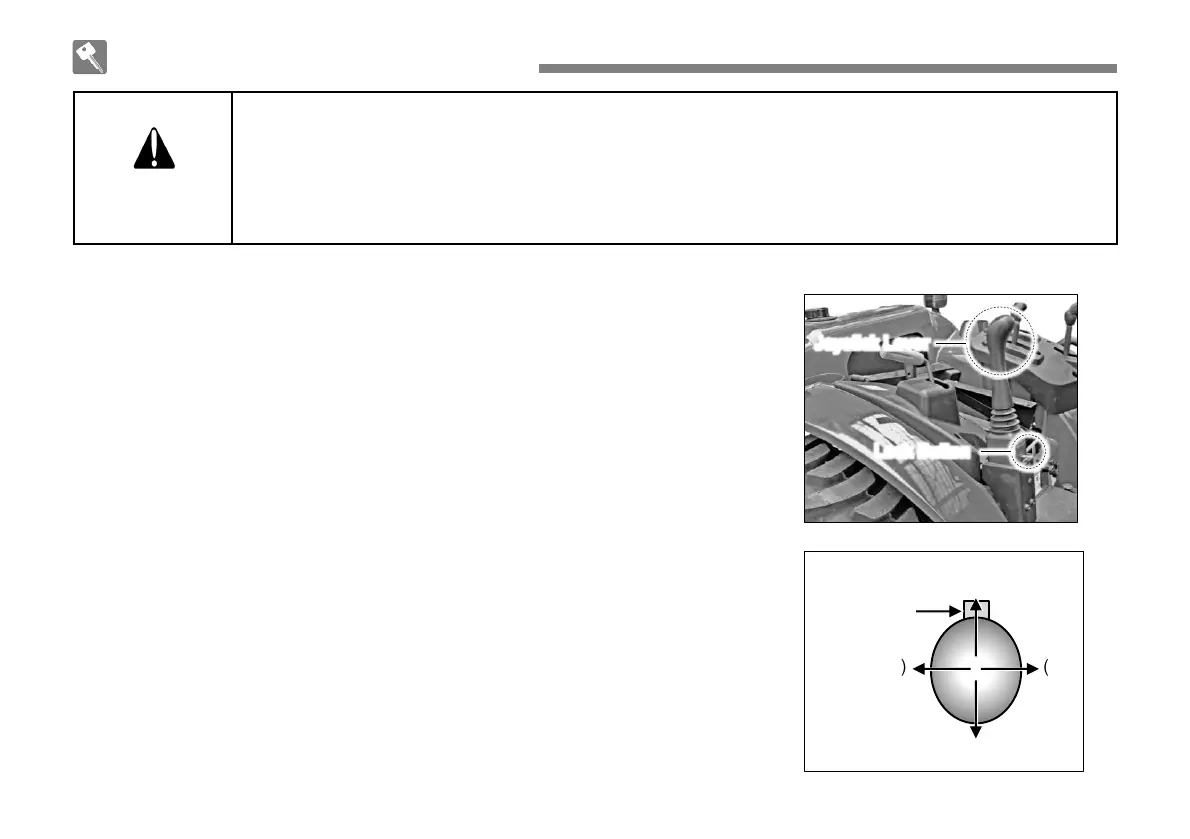

DESCRIPTION OF OPERATING SYSTEM
■ Joystick Lever
(1) Joystick lever operating directions
(A) Boom Down
(B) Boom Up
(C) Bucket Down
(D) Bucket Up
Do not operate the boom cylinder and bucket at the same time. A loader may
malfunction due to insufficient oil flow.
(2) Joystick lever lock button
There is a button to lock the operation of the joystick lever.
Pulling it forwards unlocks the lever while pushing it backwards locks the lever.
Make sure to set joystick lever in the neutral position and lock the lever when
the lever is not in use.
Otherwise, an implement may fall accidentally by unintended operation of the
lever.
Joystick Lever
Lock Button
Lock Button
(A)
(B)
(D) (C)
