TRACTOR INSTRUMENTS
C
16
▶ LOADER VALVE AND JOYSTICK
LEVER
The tractor is equipped the hydraulic
front loader valve for attaching the
hydraulically driven implement such as
front end loader.
The front loader valve is located on left
hand side of transmission.

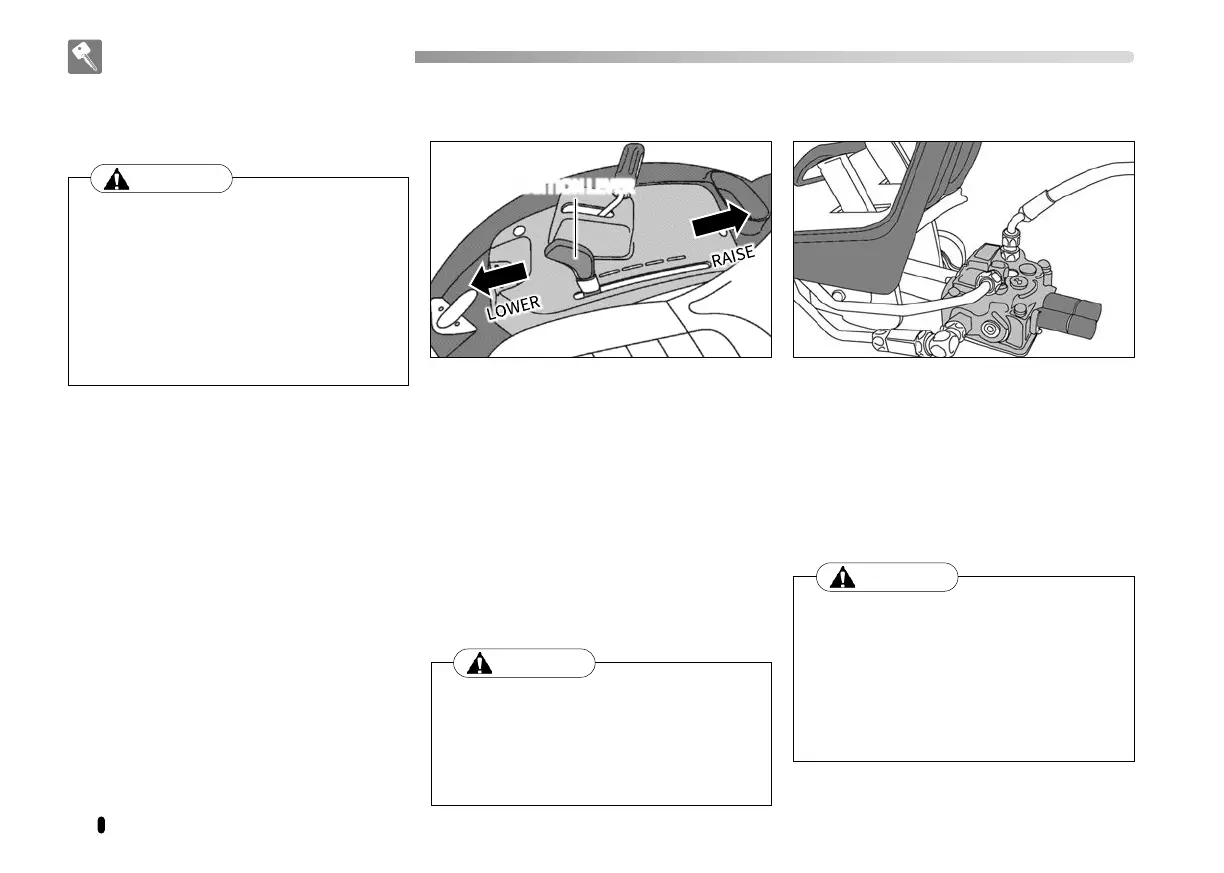

▶ POSITION LEVER
This lever is used to lift and lower an
implement to a certain working height
freely and maintain it.
<Operation>
• Lifting implement –
Pull the lever back to lift the
implement.
• Lowering implement –
Push the lever forward to lower the
implement.
Set it to the Lock position under the
following conditions to prevent falling
of the implement :
• When driving on a public road
• When replacing the rotavator
blade or removing straws and
grass
• When servicing the implement
WARNING
POSITION LEVER
When leaving the tractor, make sure to
lower the implement and stop the
engine.
Others may operate one of the controls,
leading to a dangerous situation.
WARNING
Abnormal operation of a loader can lead
to an accident.
Therefore, when connecting the
hydraulic pipes, set the valve
connection according to the operating
directions specified on the label
attached to the joystick lever.
WARNING
