TYM T433 - Page 57

T553 ROLL-BAR TYPE
►
►►
► TRACK ADJUSTMENT

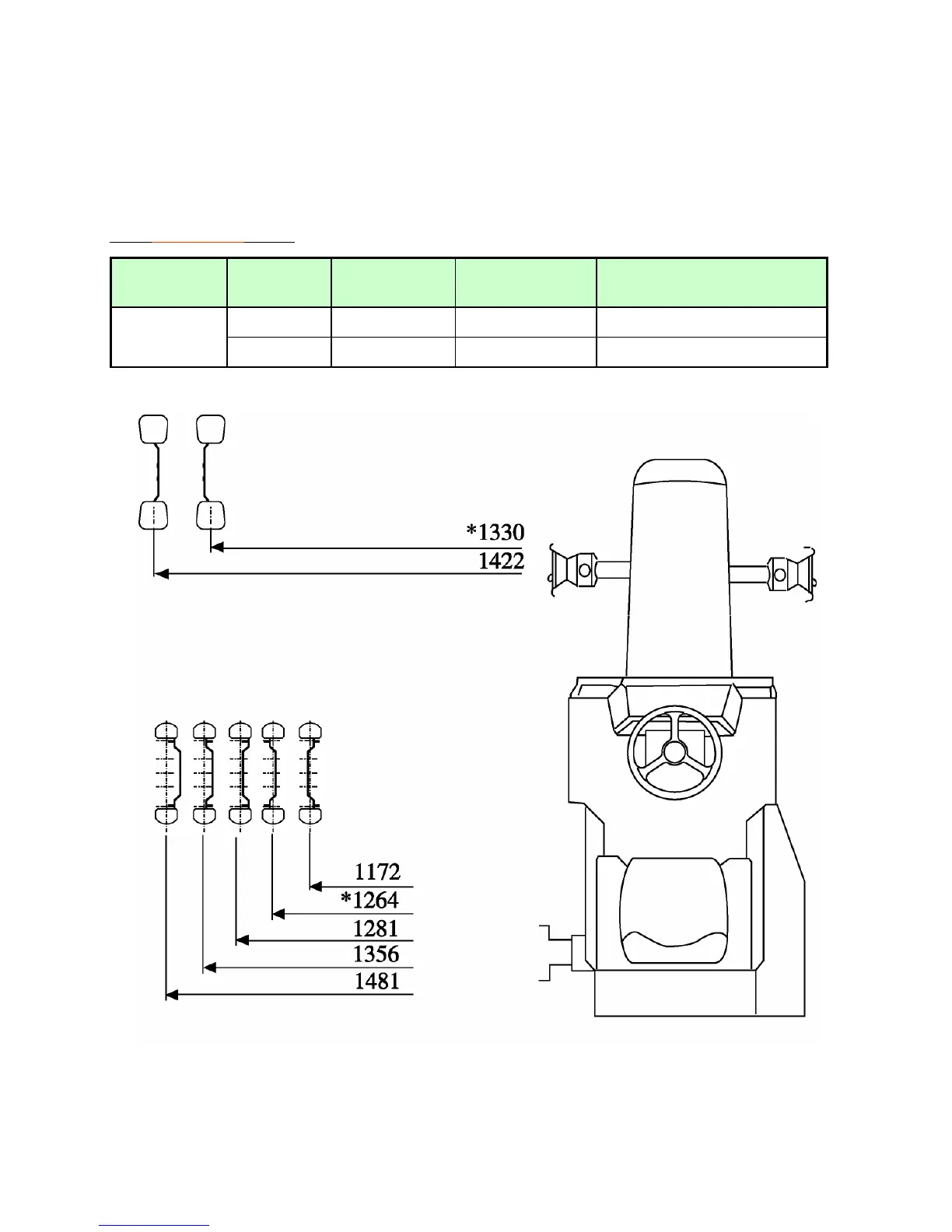

As T553 ROLL-BAR models of TYM are front wheel assist the front track can be set in 2 positions.
The rear track can be set in 5 positions as illustrated.
MODEL DIVISION TYRE
AIR PRESSURE
(kgf/cm2)
TRACK ADJUSTMENT
(*) Marking is STANDARD
T553
ROLL-BAR
FRONT 9.5-16-6PR 2.1 1,330 mm
REAR 13.6-26-6PR 1.5 1,264 mm
56
Unit : mm(in)
