T503/T433 TYPE
►
►►

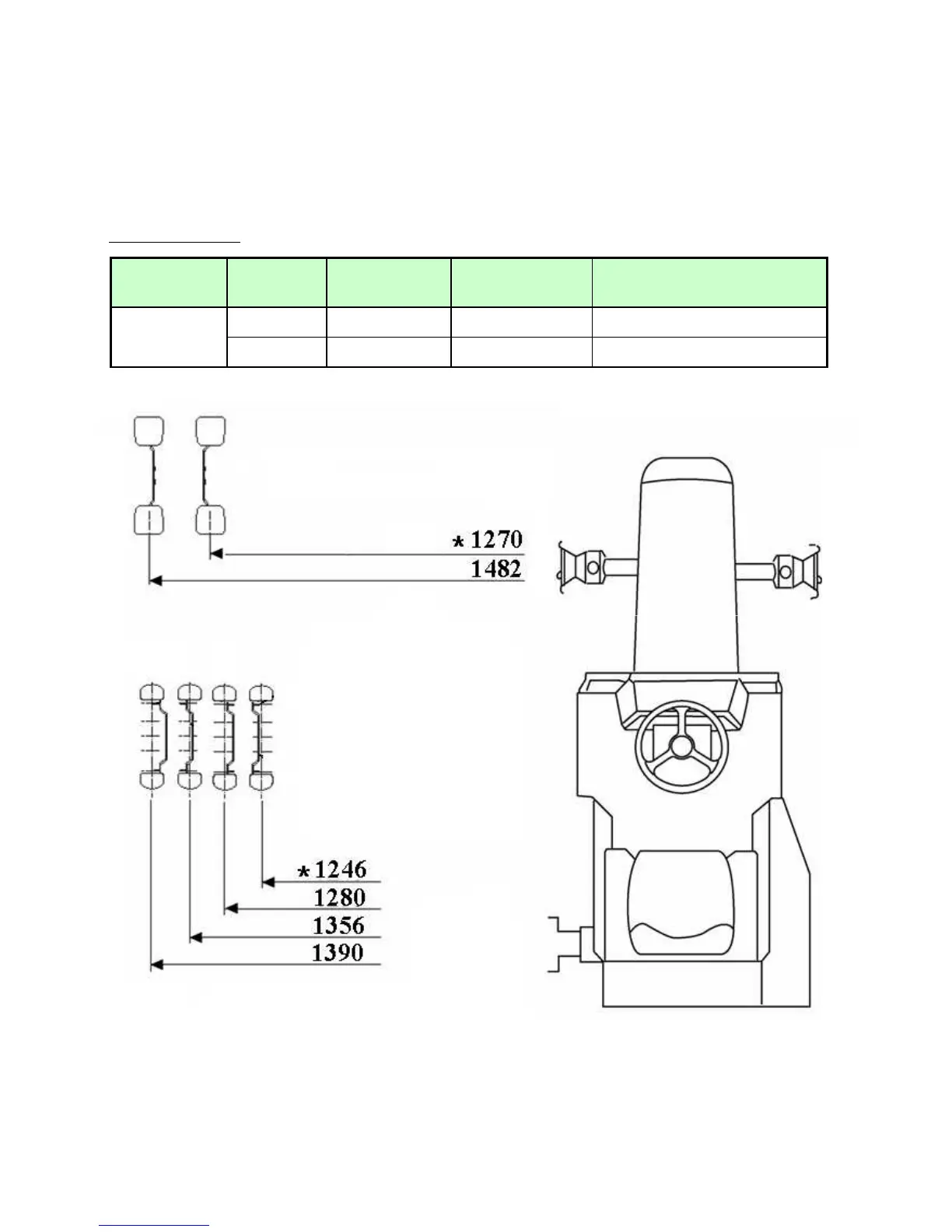

► TRACK ADJUSTMENT
As T503/T433 models of TYM are front wheel assist the front track can be set in 2 positions.
The rear track can be set in 4 positions as illustrated.
MODEL DIVISION TYRE
AIR PRESSURE
(kgf/cm2)
TRACK ADJUSTMENT
(*) Marking is STANDARD
T503/T433
FRONT 8-16-4PR 1.6 1,270 mm
REAR 13.6-24-6PR 1.6 1,246 mm
56
Unit : mm(in)
