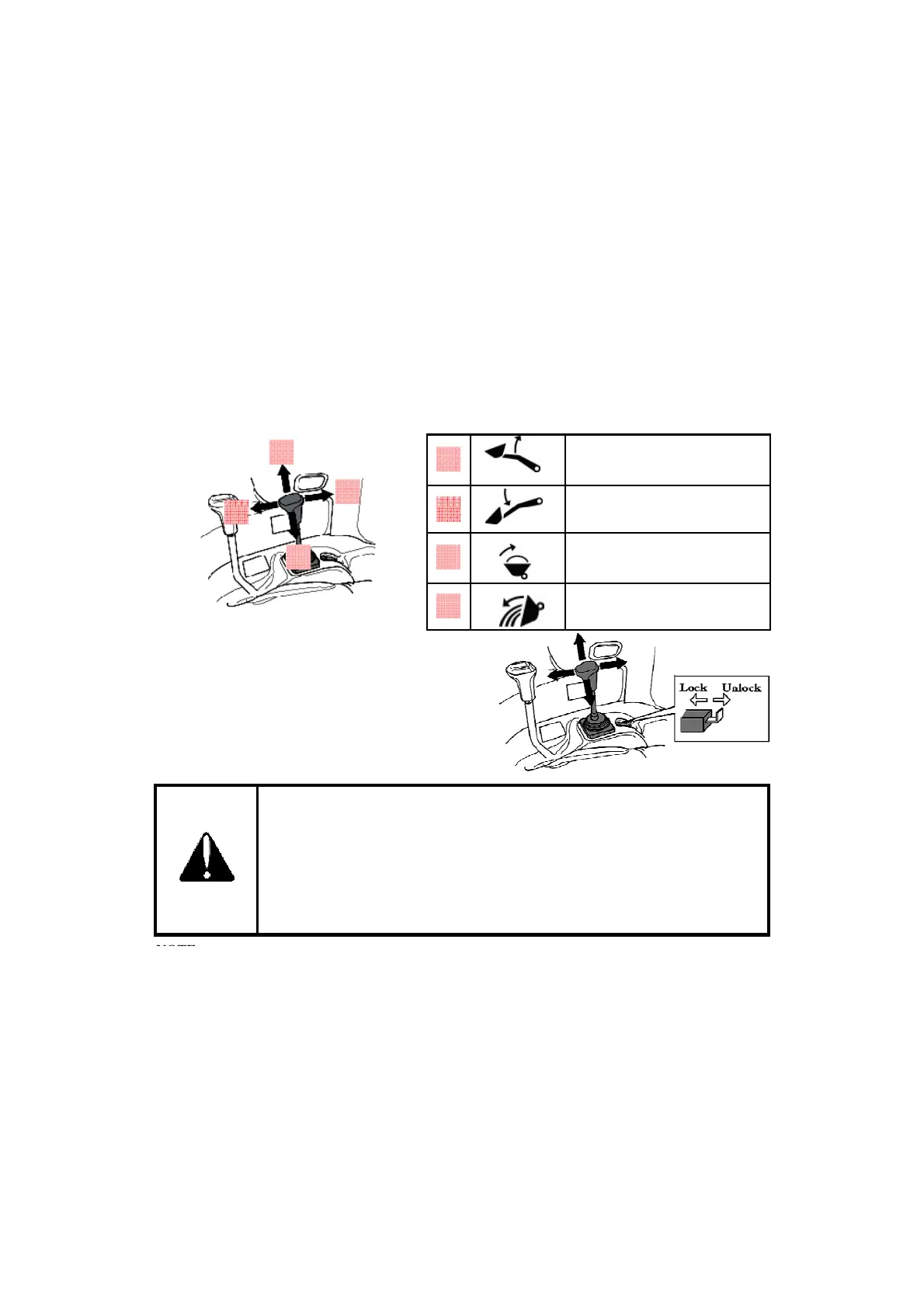

▶ Joy stick lever
This simple joystick lever can control the use of a front-end loader. And lift-retract, dump-rollback smoothly
and act as one handle lever.
1. To raise the front end loader: pull the lever to lift position.
2. To lower the front end loader: push the lever to retract position.
3. To rollback the bucket : pull the lever to rollback position
4.. To dump the bucket: push the lever to dump position.
To raise the front end loader
To lower the front end loader.
44
11
11
To rollback the bucket
To dump the bucket
33
33
44
Hydraulic fluid escaping under pressure can have enough force to penetrate the skin
Safety implement for Joy stick lever
This simple Safety locking system can lock the joy stick
by pushing the Button and unlocked by pulling .
.
Hydraulic fluid may also infect a minor cut or opening in the skin. If injured by
escaping fluid. See a doctor at once. Serious infection or reaction can result if medical
treatment is not given immediately. Make sure all connections are tight and that hoses
and lines are in good condition before applying pressure to the system. Release all
pressure before disconnecting the lines or performing other work on the hydraulic
system. To find a leak under pressure use a small piece of cardboard or wood. Never
use hands.
Warning
44
:
The Joystick control and valve can also be used for other applications if a front end loader is not fitted.
