MODEL 210 SEPARATOR ASSEMBLY
(M00795)

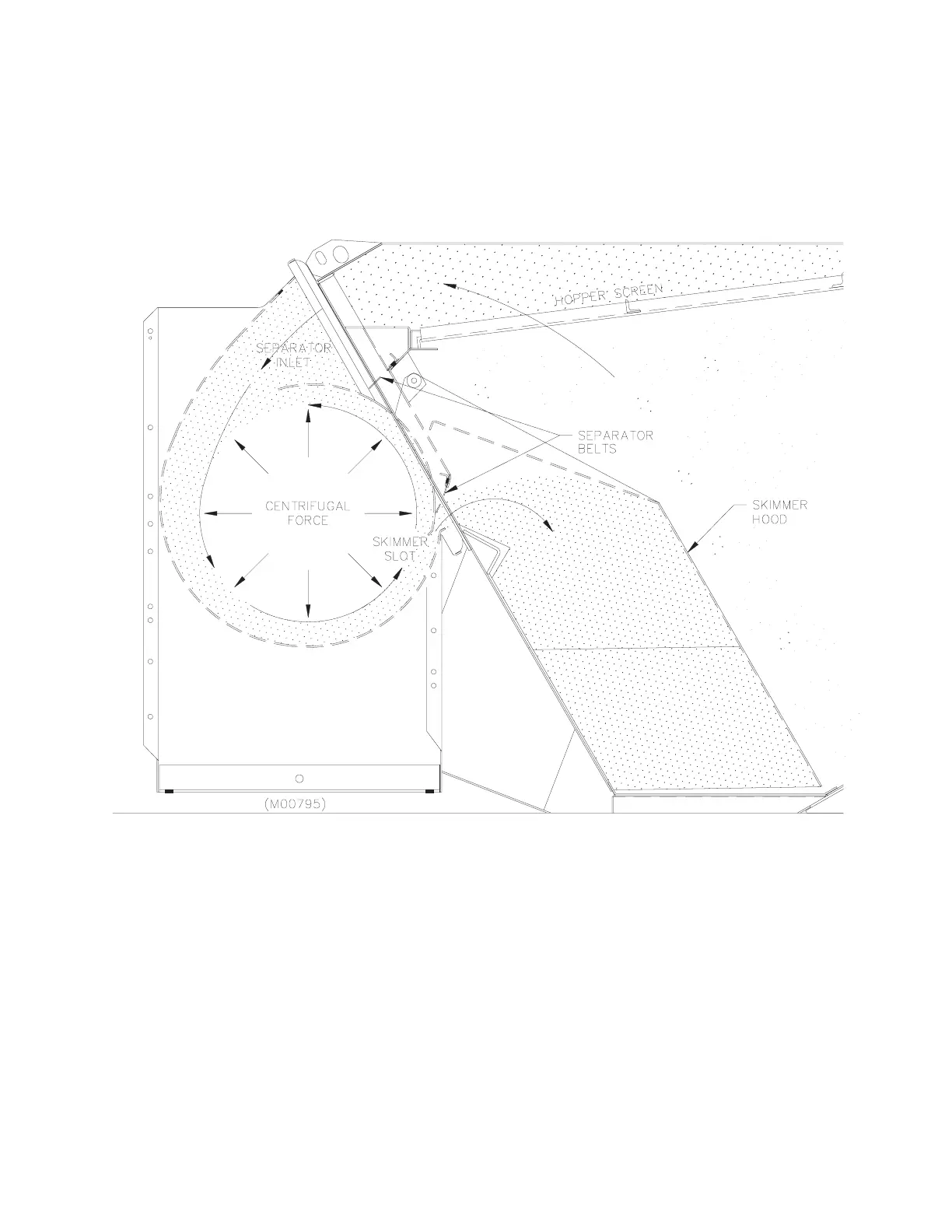

When the 210 is being used, the blower draws air from the top of the hopper. As the air is being
drawn, it passes first through the hopper screen and then into the separator inlet. Once in the
separator, the air begins to spin and centrifugal force throws dust particles against the separa
-
tor wall where it is then expelled through the skimmer slot. Once expelled, the skimmer hood in
-
side the hopper prevents the separated dust from being re-drawn into the separator inlet. Two
separator belts are also used to prevent the expelled dust from being re-drawn back into the
separator inlet. Operation of the 210 without either the skimmer hood or the separator belts will
cause accelerated wear of the blower and its housing.
