3. INSTALLATION

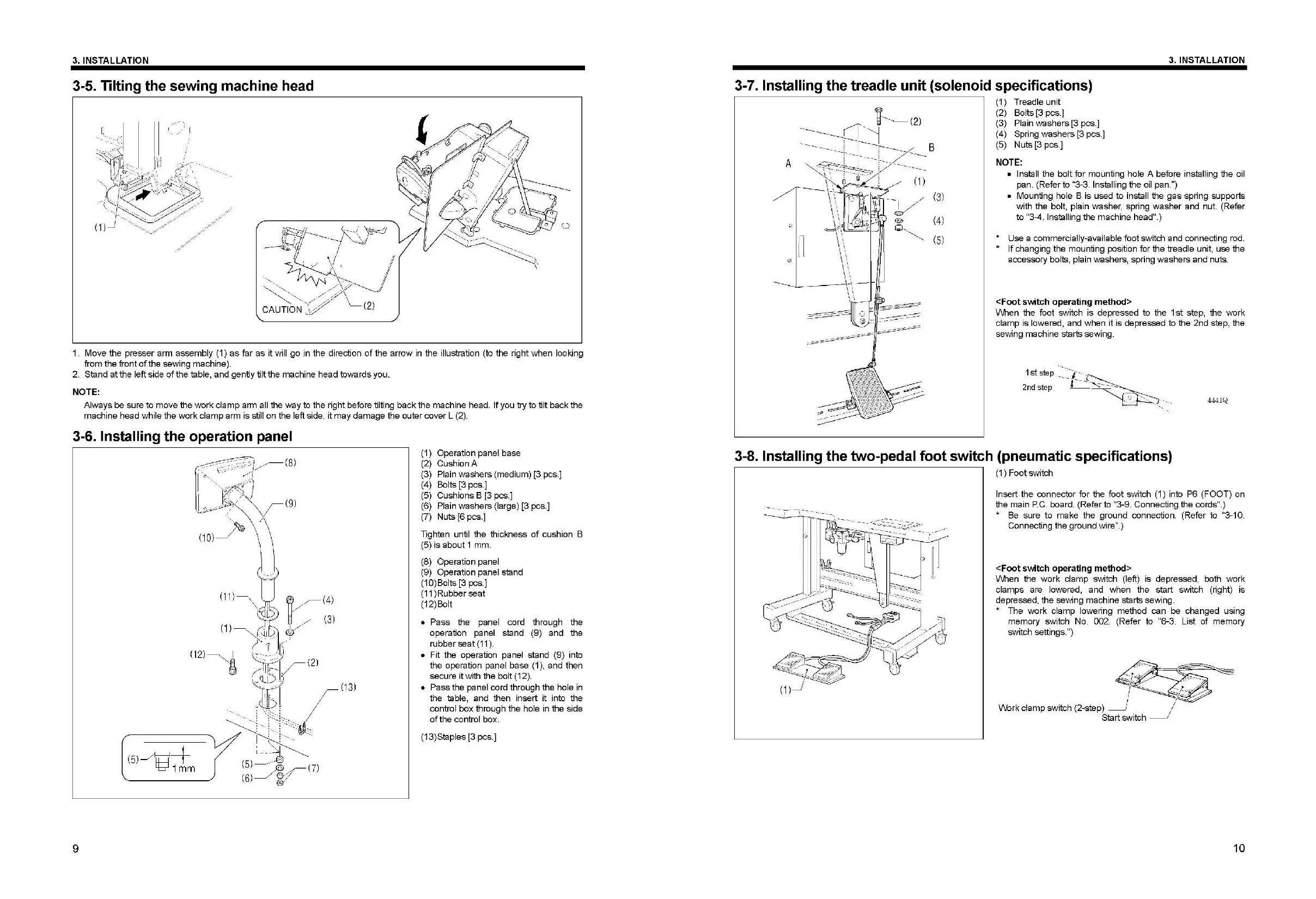

3-5. Tilting the sewing machine head
1. Move the presser arm assembly (1) as
far
as it will go
in
the direction
of
the arrow
in
the illustration (to the right when looking
from the front
of
the sewi
ng
machine).
2. Stand
at
the left side
of
the table, and gently tilt the machine head towards you.
NOTE:
Always
be
sure to move the work clamp arm all the way to the right before tilting back t
he
machine head.
lf
you try to tilt back the
machine head
while the
work
clamp arm
is
still on the left side, it
may
damage the
ou
t
er
cover L (
2).
3-6. lnstalling the operation panel
(5)~u+
'b-'
1
mm
9
(1) Oper
ationpa
n
el
base
(2) Cushion A
(3) P
lai
n washers (medium) [3 pcs.]
(4)
Bo
lts [3 pcs.]
(5) Cushions B [3 pcs
.]
(6) Plain washers (
la
rge) [3 pcs.]
(7) Nuts [6 pcs.]
Tighten
until t
he
thickness
of
cushion B
(5)
is
about 1 mm.
(8) Operation panel
(9) Operation panel sta
nd
(10)Bolts [3 pcs.]
(
11
)Rubber seat
(12)Bolt
•
Pass the panel cord through the
operation
panel stand (
9)
and the
rubber seat (
11
).
• Fit the operation panel sta
nd
(
9)
into
the operation
panel base
(1
), and then
secure i
tw
ith
t
he
bolt (12).
• Pass the panel cord through the hole
in
the table, and then insert
it
into the
control box through the hole
in
the side
of
the control box.
(13)Staples [3 pcs.]
3-7. lnstalling the treadle unit (solenoid specifications)
(1) Treadle unit
(2)
Bol
ts
[3 pcs.]
(3)
Plain washers [3 pcs.]
(4) Spring washers [3 pcs.]
(5) Nuts [3
pcs
.]
NOTE:
3. INSTALLATION
• lnsta
ll
the bolt for
mount
ing
ho
le A before installing the oil
pan. (
Re
fer to "3-3. lnsta
ll
ing the o
il
pan.")
•
Mounting hole B is used
to
insta
ll
the
gassp
ri
ng supports
with the
bolt, plain washer, spring washer and nut. (Refer
to
"3-4. lnstalling the machine head".)
• Use a commerc
ia
lly-avai
la
ble foot switch and connecting
ro
d.
* lf changing the mounting position for the treadle unit, use the
accessory
bolts, plain washers, spring washers and nuts.
<Foot
s\11/itch
operating method>
\1\/h
en the foot
sw
itch is depressed
to
the
1st
step, the work
clamp is lowered, and
wh
en it is de
pr
essed to the 2nd step, the
se
vvi
ng
mac
hi
ne
starts sewing.
4
44
1
(,2
3-8. lnstalling the two-pedal foot switch (pneumatic specifications)
(1) Foot
sw
itch
Insert the
co
nnector for the foot
sw
itch (1) into P6 (FOOT) on
the main
P.C. board. (Refer
to
"3-9. Connecting the cords".)
• Be s
ur
e
to
make the ground connection. (Refer to "
3-1
0.
Connecting the ground wire".)
<Foot
s\11/itch
operating method>
\1\/h
en the
work
clamp s
vvitch
(left) is depressed, both w
ork
clamps are lowered, and when the
sta
rt switch (
light
) is
depressed, the
se
vvi
ng machi
ne
starts sewing.
* The
work
clamp lowering method can be changed
us
i
ng
memory
sw
itch No. 002. (Refer to "6-3.
Li
st
of
memory
sw
itch settings.")
10
