SARA-G3 series - System Integration Manual
UBX-13000995 - R06 Objective Specification Design-in
Page 147 of 218
The signal levels can be adapted by setting gain using AT commands (refer to the
u-blox AT
Commands Manual
[2][2], +USGC, +UMGC), but additional circuitry must be inserted if the SPK_P
/ SPK_N output level of the module is too high for the input of the audio device or if the output
level of the audio device is too high for MIC_P / MIC_N, as the voltage dividers present in the
circuits described in the right side of Figure 59Figure 59 to properly adapt the signal level
SARA-G350
C1
C2
45
SPK_N
44
SPK_P
GND
49
MIC_P
GND
Analog IN (-)
Analog IN (+)
Analog OUT (-)
Analog OUT (+)
Audio Device
GND
GND
48
MIC_N
C3
C4
SARA-G350
45
SPK_N
44
SPK_P
GND
49
MIC_P
GND
Analog IN
Audio Device
GND
Reference
48
MIC_N
Analog OUT
C5
C6
R2
R1
R4
R3
C7
C8
46
MIC_BIAS
47
MIC_GND
46
MIC_BIAS
47
MIC_GND

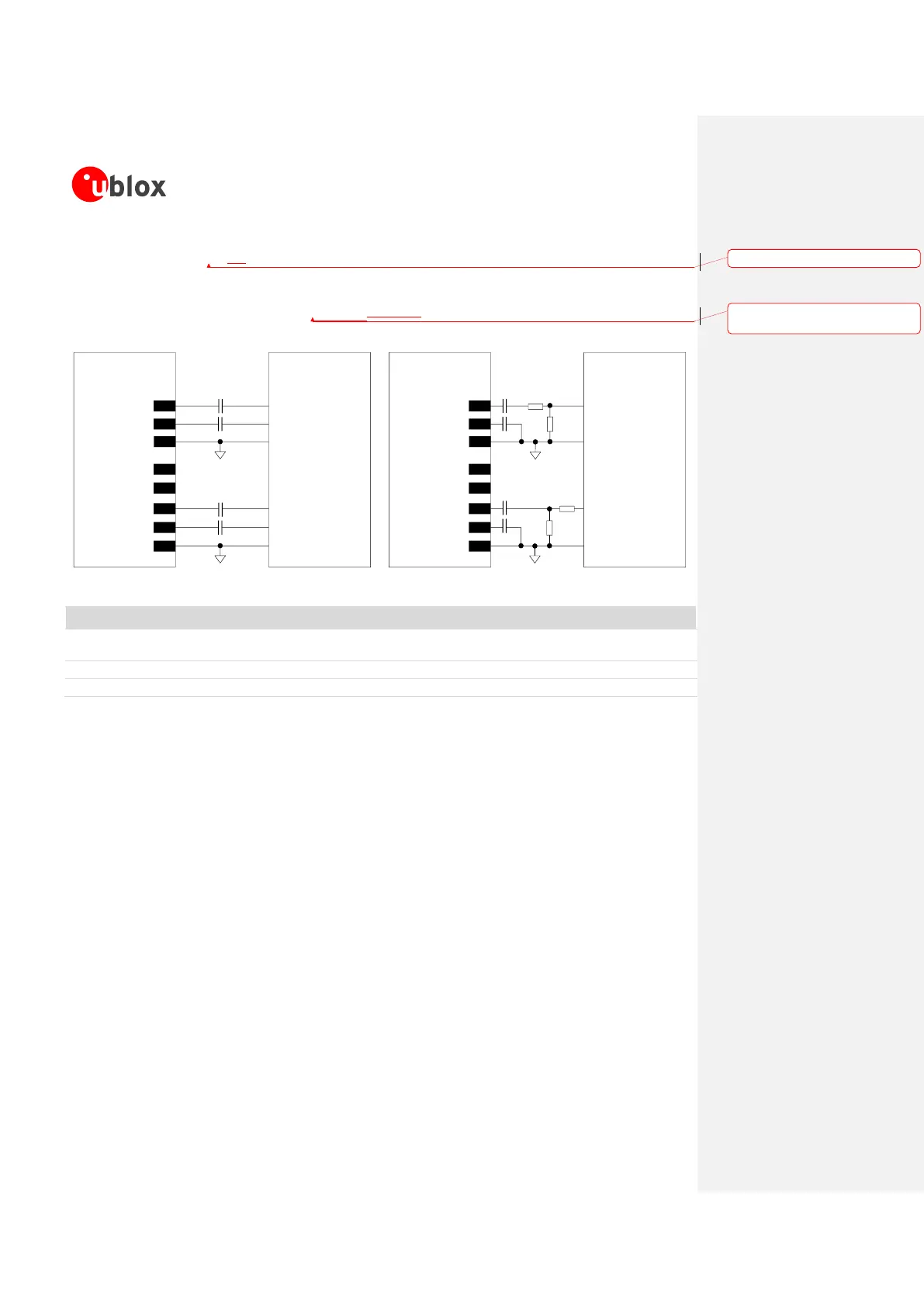

Figure 59: Application circuits to connect the module to audio devices with proper differential or single-ended input/output
Part Number – Manufacturer
C1, C2, C3, C4,
C5, C6, C7, C8
10 µF Capacitor X5R 0603 5% 6.3 V
0 Ω Resistor 0402 5% 0.1 W
RC0402JR-070RL – Yageo Phycomp
Table 35: Connection to an analog audio device
2.6.1.4 Guidelines for analog audio layout design
Accurate analog audio design is very important to obtain clear and high quality audio. The GSM signal
burst has a repetition rate of 217 Hz that lies in the audible range. A careful layout is required to reduce
the risk of noise from audio lines due to both VCC burst noise coupling and RF detection.
Guidelines for the uplink path, which is the most sensitive since the analog input signals are in the
microVolts range, are the following:
Avoid coupling of any noisy signal to microphone lines: it is strongly recommended to route microphone
lines away from module VCC supply line, any switching regulator line, RF antenna lines, digital lines
and any other possible noise source
Keep ground separation from microphone lines to other noisy signals. Use an intermediate ground layer
or vias wall for coplanar signals
Route microphone signal lines as a differential pair embedded in ground to reduce differential noise
pick-up. The balanced configuration will help reject the common mode noise
Route microphone reference as a signal line since the MIC_GND pin is internally connected to ground
as a sense line as the reference for the analog audio input
Cross other signals lines on adjacent layers with 90° crossing
