U-Line 95 Icemaker - Combo 29 FF Parts (New Design); New Design Parts - Combo 29 FF

Service and Parts Manual
46

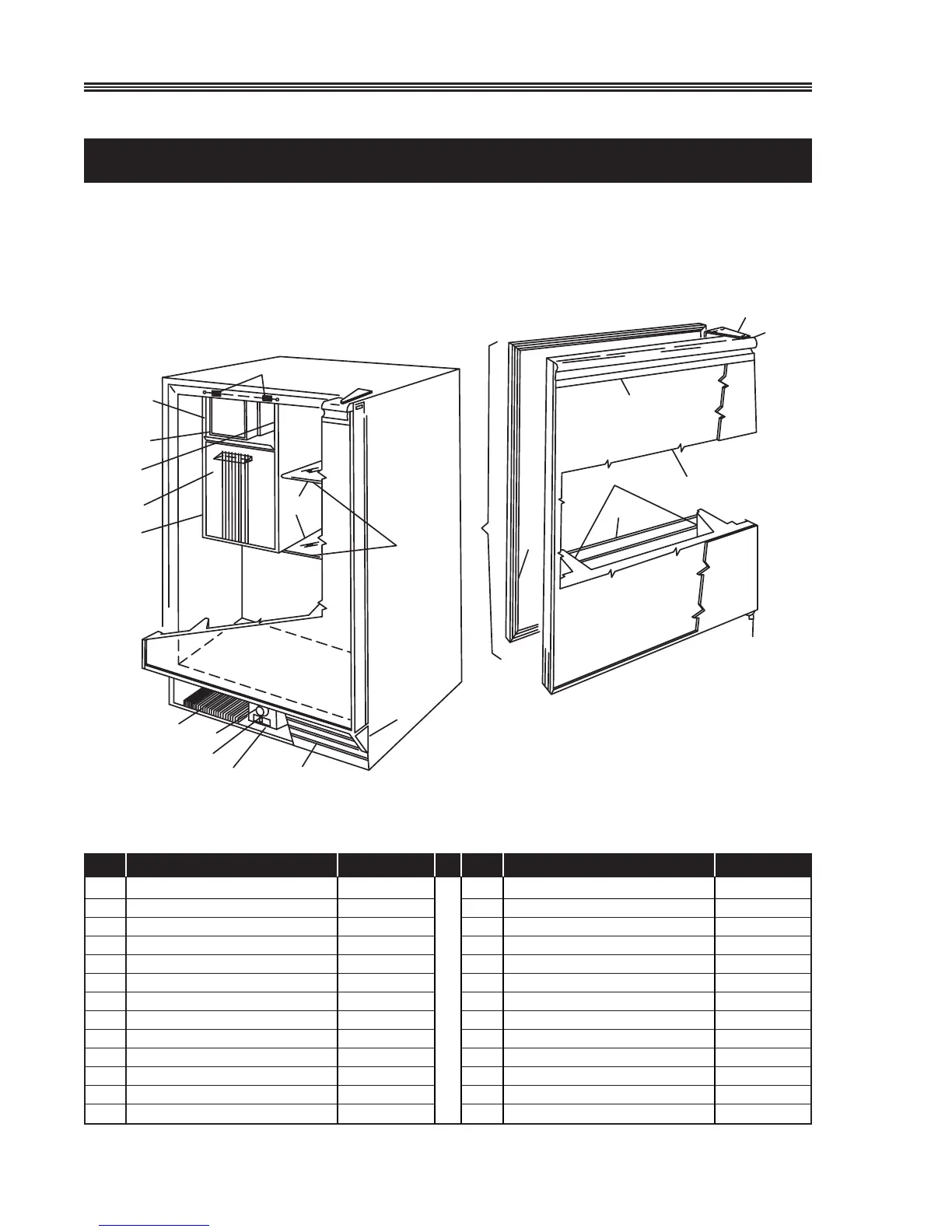

COMBO 29FF (1 of 2)
New Design Starting With Serial Number
2CF600000
For Item #9, see Model 402 Ice Maker (page 39) for separate breakdown.
Item Description Part No.
1 Handle 31489-3*
2 Door Gasket 31493-3*
3 Door Shelf Retainer (Long) 31521-2
4 Door Shelf Retainer (Short) 31521-3
5 Fan Blade, Evaporator 31656
6 Pivot Hinge, Top 11697-ST*
7 Pivot Hinge, Bottom 11695-S*
9 Ice Maker Ass’y 402
10 Ice Bucket 31501
12 Complete Door Ass’y 29-DOOR*
13 Control 2636
14 Grille 11663*
15 Ice Bin Door 31523-S
Item Description Part No.
16 Glass Shelf (2) Short 31425-1
17 Switch On-Off 2053
18 Ice Bin Door Hinge (2) 31463
19 Shelf Retainer Rivet (6) 41824
20 Trim Strip, Front Short (2) 31443-1
21 Pivot Screw, Top 41785-SS*
22 Condenser 1893-FFS
23 Timer 2632-2-S
24 Fan Motor, Evaporator 5299-1
25 Pivot Screw, Bottom 41747-SS*
26 Freezer Housing 11471-S
27 Control Knob 41492
28 Evaporator & Heat Exchanger 2669-FFS
*Please indicate color.
23
21
6
25
4
1
18
24
5
15
9
3
2
12
20
7
16
13
22
10
26
14
17
27
28
19
COMBO29FFc
