U-Line 95 Icemaker - Page 47

47

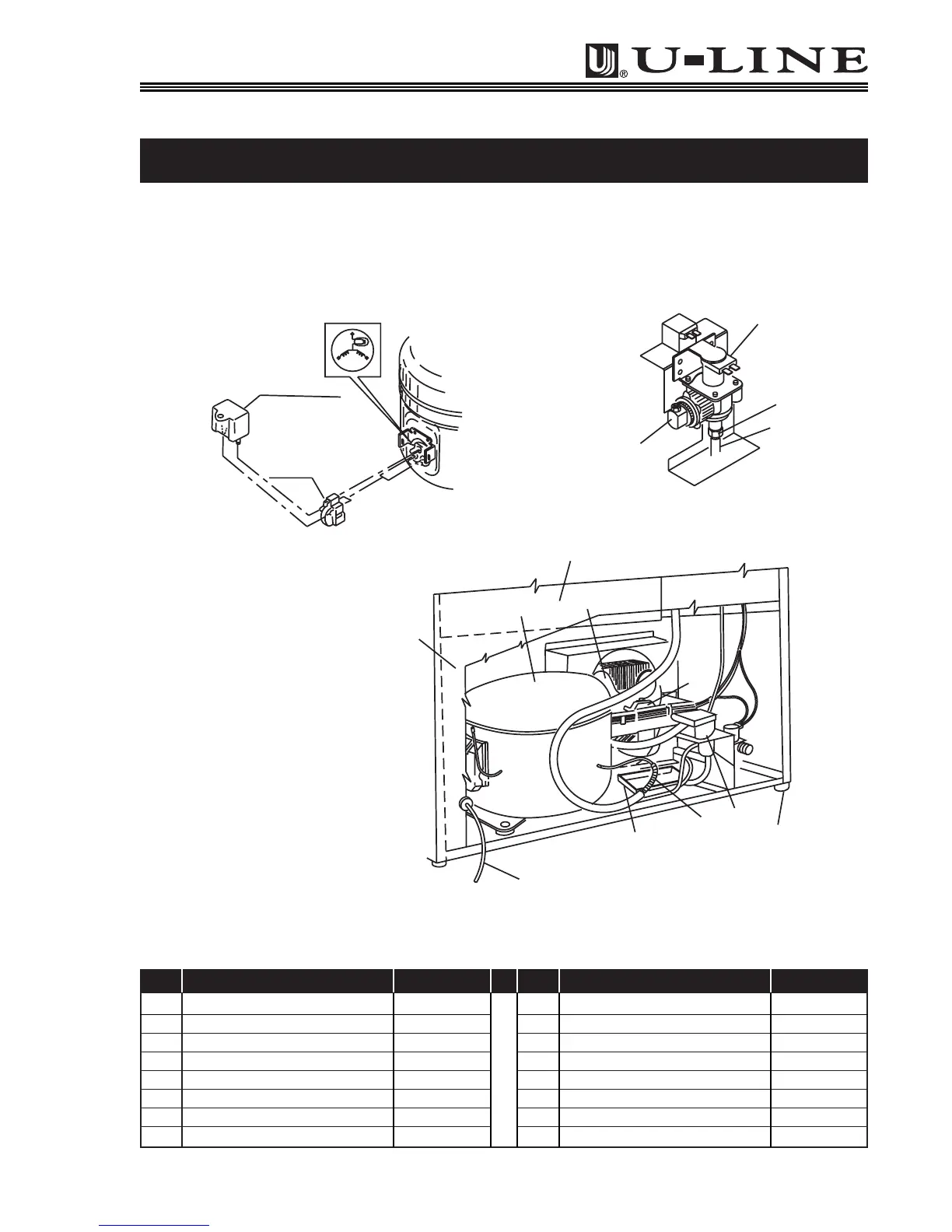

COMBO 29FF (2 of 2)
New Design Starting With Serial Numbers
2CF600000
Item Description Part No.
1 Water Line 404FF
2 Water Line Connection 41826
3 Plastic Nut & Sleeve Ass’y 41254
12 Cabinet Foot (4) 41125
13 Dryer 2692
15 Fan Motor, Condenser 5300
16 Fan Blade, Condenser 5428
18 Back Panel 11545-1
Item Description Part No.
19 Power Cord 2293
20 Solenoid Valve 2552A
22 Relay 5421
24 Compressor 5405-FFS
25 By-Pass Valve Ass'y 2749-S
28 Drain Pan 31550-1-F
29 Capacitor 5422
30 Insulation 31622
C
M
S
RUNNING CAPACITOR
PTC RELAY
25
24
20
3
1
2
22
29
30
16
15
24
18
13
12
28
19
COMBO29FFd
