WH95TP, BI95BTP and BCM95 Ice Makers

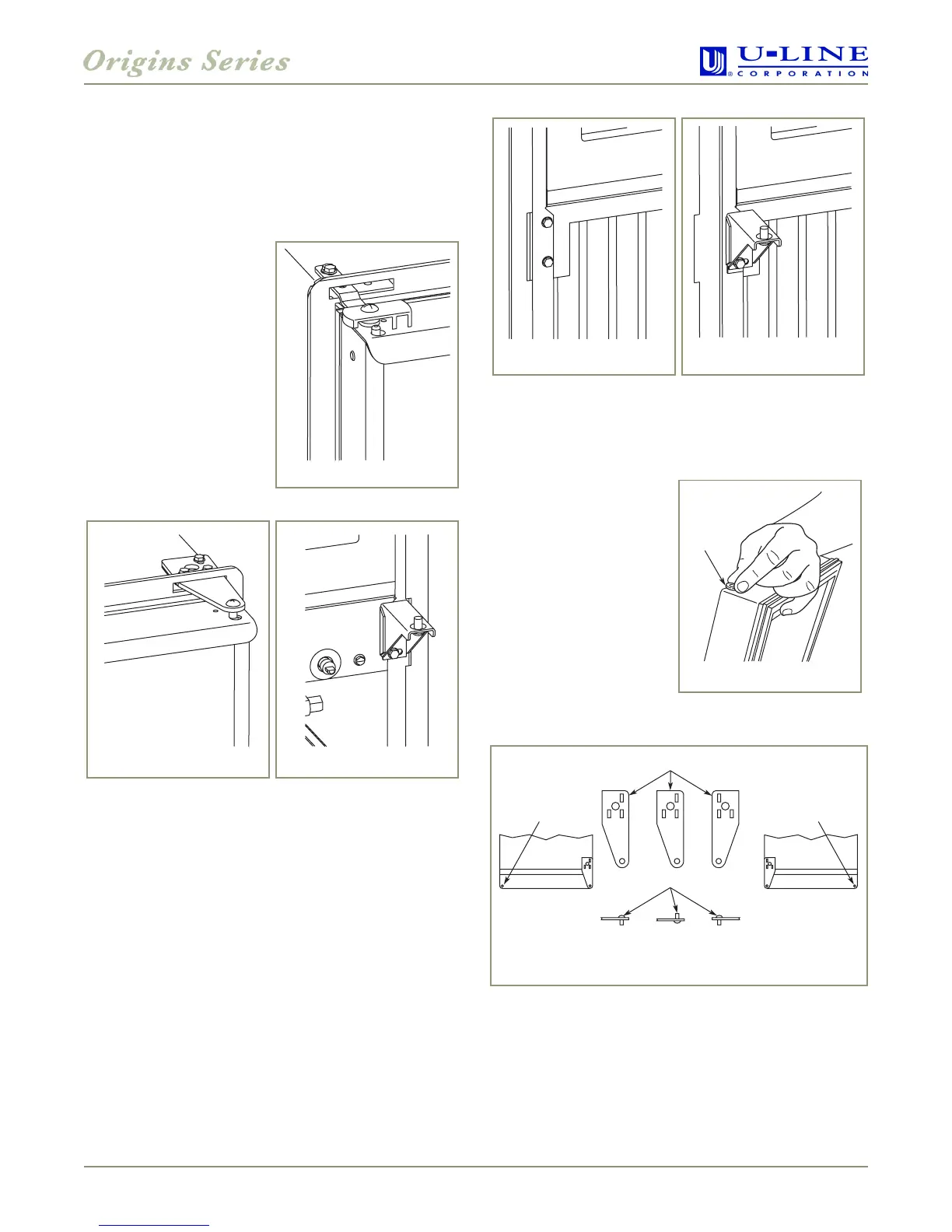

Reversing the Door
All units may be left- or right-hand opening.
Note: The grille should not yet be installed. If it has been
installed, remove it for door reversing. See Page 10.
To reverse the door:
1. Remove travel pin from
cabinet (two screws).
See Figure 4. Slide
assembly through
flange and set aside
to be used later
.
2. Remove top hinge from
cabinet (three screws).
See
Figure 5 . Hold door
to keep it from falling.
Slide hinge through
flange.
3. Lift the door off the
bottom hinge.
4. Remove bottom hinge from cabinet (two screws). See
Figure 6 . Remove screws on opposite side of cabinet
(
Figure 7 ). Note that there may be a nut behind one or
both screws on either side.
5. Install hinge on opposite side, bottom of cabinet. See
Figure 8 . Replace nut on back side where installed.
Align hinge outer edge with cabinet before tightening
screws.
6. Relocate plastic spacer/
bushing on bottom of
door to opposite side,
and place door on
bottom hinge pin. See
Figure 9 . Clean out
bushing hole in door
bottom with a
screwdriver if necessary.
7. Remove plastic travel
pin from door handle
and relocate on
opposite side. See
Figure 10 .
8. Remove pivot screw from top hinge, invert screw and
reinstall pivot screw in top hinge. See
Figure 10 .
Figure 4
Figure 5 Figure 6
Figure 7 Figure 8
Bushing
Figure 9
Travel
Pin Hole
Travel
Pin Hole
Hinge
Screw
Right Side
Door Swing
Right Side
Hinge
Invert
Screw
Invert
Hinge
Left Side
Door Swing
Figure 10
