CLR2060 — Clear Ice Maker
02/2005 15 www.U-LineService.com
™
CAUTION
In the event of a power outage, restricted drain or pump
failure, the failure to use the U-Line P60 drain pump or a
pump with the above listed specifications, could result in
substantial water leakage and pooling with severe and
costly water damage and related consequential damages
and harm.
Water Supply Connection
When connecting the water supply, follow these
guidelines:
• Review the local plumbing codes before you install the
unit.
• Connect to the cold water supply.
• The water pressure should be between 20 and 120 psi.
• Install a shut-off valve in the 1/4 inch OD water supply
line.
• Connect sufficient tubing to the unit so that tubing
may be looped, allowing the unit to be removed for
cleaning and servicing (see Figure 40). However, make
certain that the tubing is not pinched or damaged
during installation.
• U-Line recommends the use of copper tubing for
installation.
To connect to water supply:
1. Install the 1/4 inch OD copper water line from the
main water source (see Figure 37).
2. Locate the compression fitting and ferrule packed with
this guide. Slide the compression fitting and ferrule
over the 1/4-inch OD water supply line. Do not use
thread sealing compound or tape. Using two wrenches,
tighten the compression fitting on the supply line (see
Figure 38
).
3. Carefully bend the water supply line into position and
connect the line to the solenoid valve (see
Figure 39
).
Avoid kinking the water supply line.
IMPORTANT
Normal operation creates some vibration. A water supply
line contacting cabinet wall may cause excessive noise
during operation or damage to the line.
4. For recessed installations, allow extra water supply line
length to provide slack for easy removal from the
recessed area (see
Figure 40
). This will also safeguard
against kinking the line.
5. Go on to
7 Prepare Power Supply

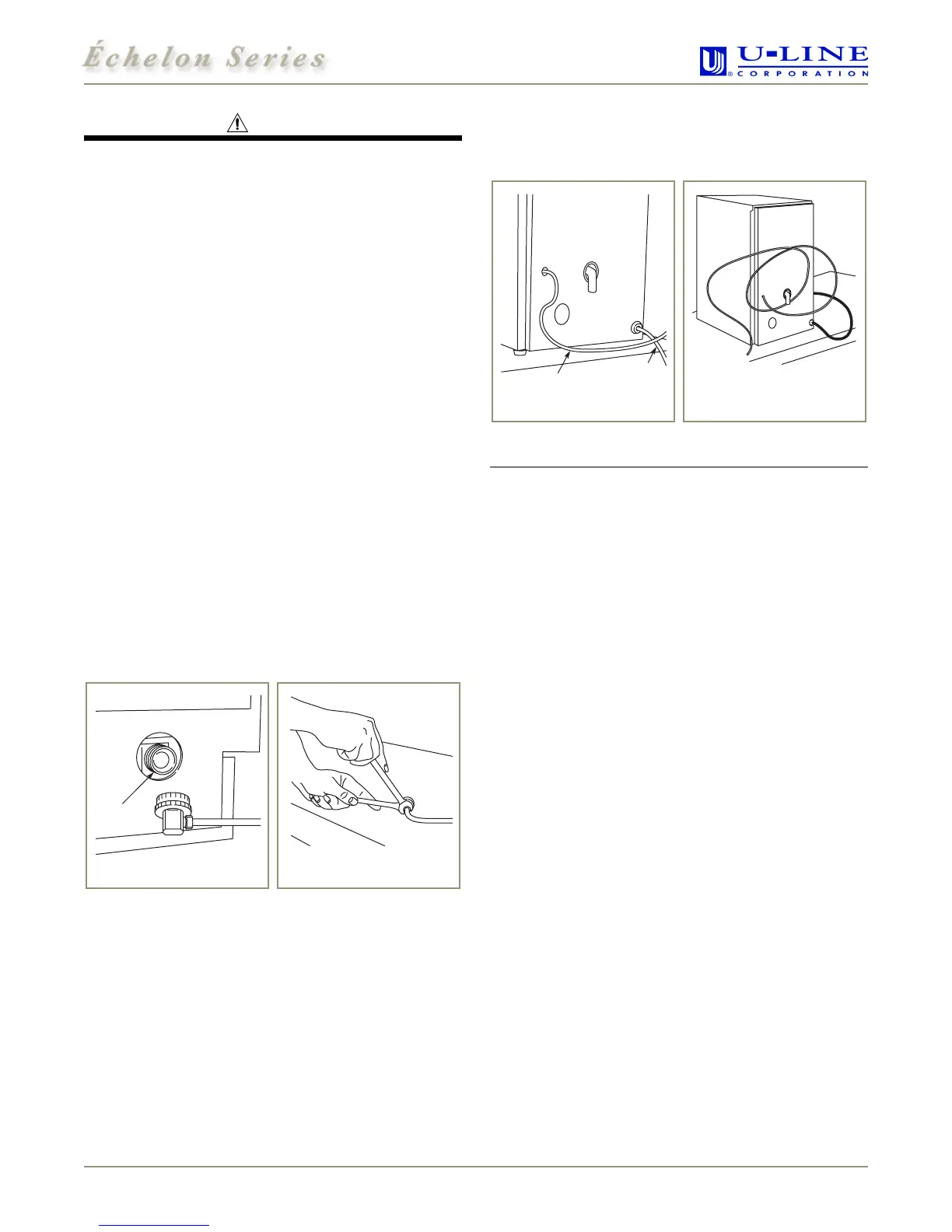

Figure 38Figure 37
Water
Connection
Figure 40Figure 39
Power
Cord
Water Line
To Next Page
