18 CLR2160, CLRCO2175
Door Reversal - Black and White
Models Only

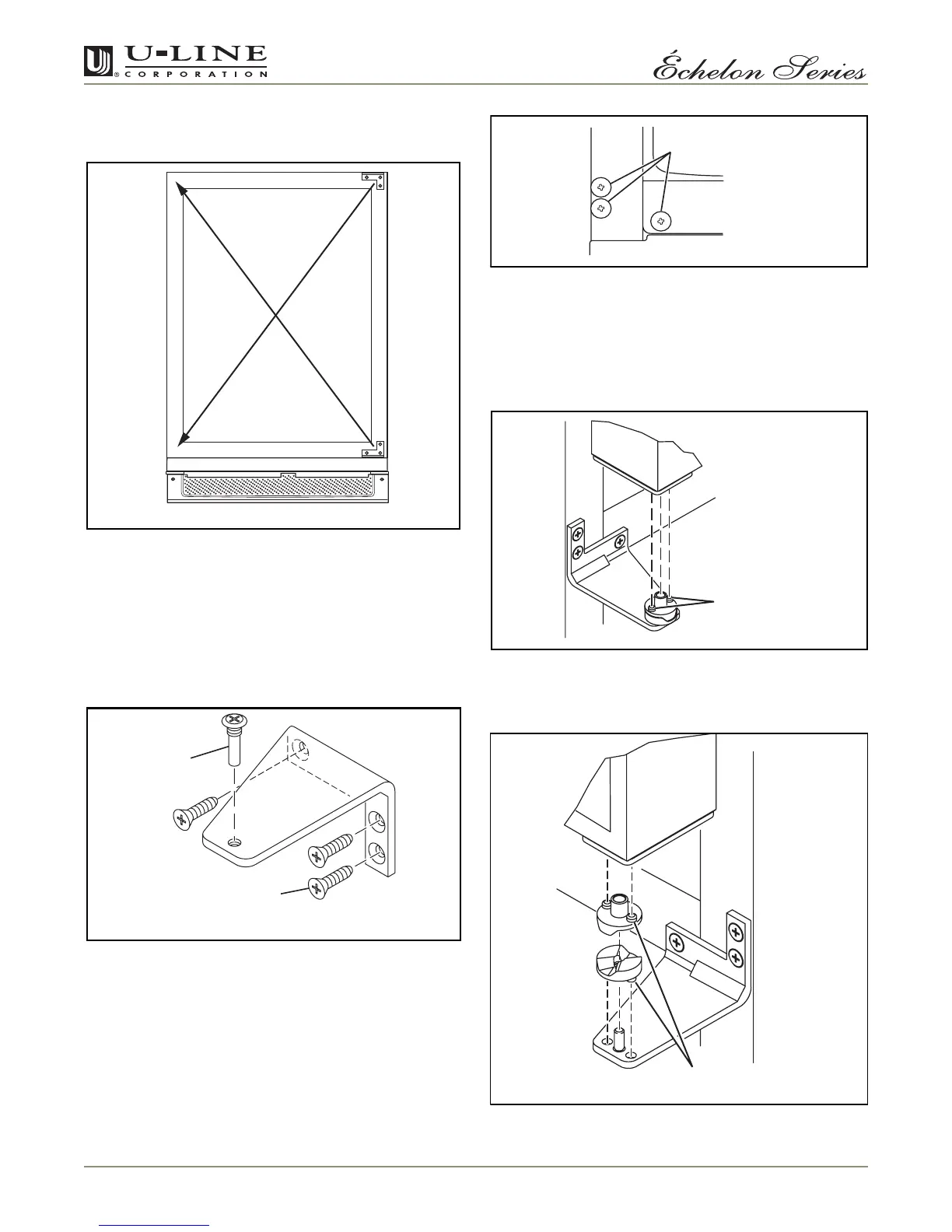

Figure 33
Black and white units may be left- or right-hand opening.
Stainless steel unit doors cannot be reversed. The doors
are easily reversed by moving the hinge hardware to the
opposite side. The top hinge hardware will be used on the
bottom of the other side and the bottom hinge hardware
will be used on the top of the other side (Figure 33).
To reverse the door:
Figure 34
1. Remove top hinge screw pin (Figure 34) from door
using a Phillips screwdriver. Remove door by tilting
forward and lifting off bottom hinge pin.
Figure 35
2. Remove metal hinge plugs (three each, top and
bottom)
(Figure 35)
from new hinge location. Do not
discard.
3. Remove top hinge (three screws) and reinstall hinge
screw pin
(Figure 34)
.
Figure 36
4. Install the removed top hinge mount on opposite side
BOTTOM
(Figure 36)
.
Figure 37
ULIN_0015_A
Hinge
screw pin
Screw
ULIN_0003_A
Metal hinge plugs
ULIN_0002_A
Align bosses
with holes
ULIN_0005_A
Door closer inserts
ULIN_0004_A
To Next Page
