COMPRESSOR/ELECTRICAL SPECIFICATIONS

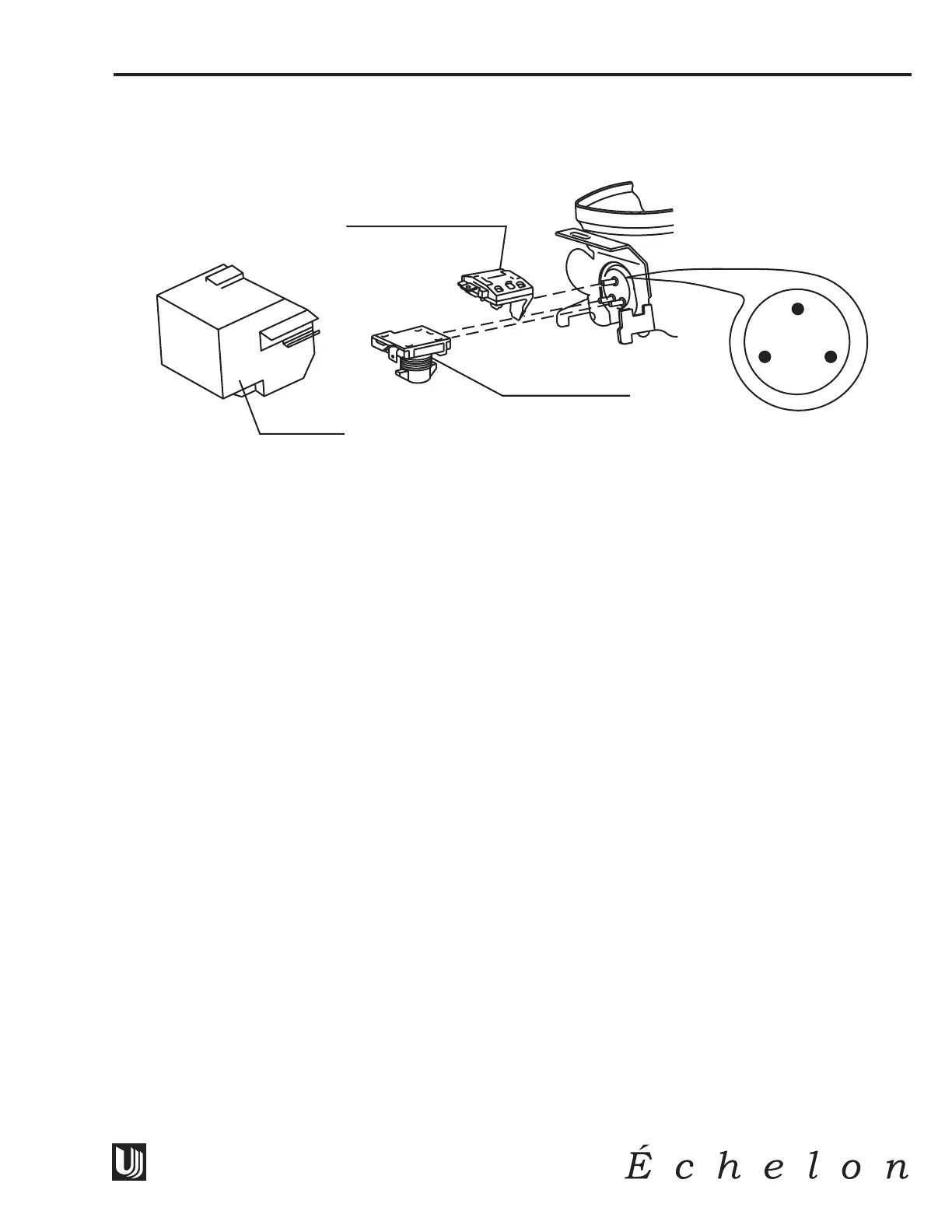

COMPRESSOR PINS
To measure start winding resistance, measure across the C-S pins.
To measure run winding resistance, measure across the C-R pins. Ensure that pins C and R are not shorted
to ground.
Specifications
EMI30HER Start Winding Resistance: 28 OHMS
EMI30HER Run Winding Resistance: 8 OHMS
C
S
R
OVERLOAD PROTECTOR
STARTING RELAY
RELAY COVER
UL183-3
EMI30HER
2075R/2015R MODELS
