U-Line H-1679 - Parts Diagrams; Diagram 1 and Part Number List; Diagram 2 and Control Lever Positions; Diagram 3 and Component Identification

16 of 62 0319 IH-1679
H110 H109
H107
H106
H101
103
109
139H
140
122H
DIAG 1
DIAG 2
139H
141
140
DIAG
3
LOWER position
NEUTRAL position
ASCENT position

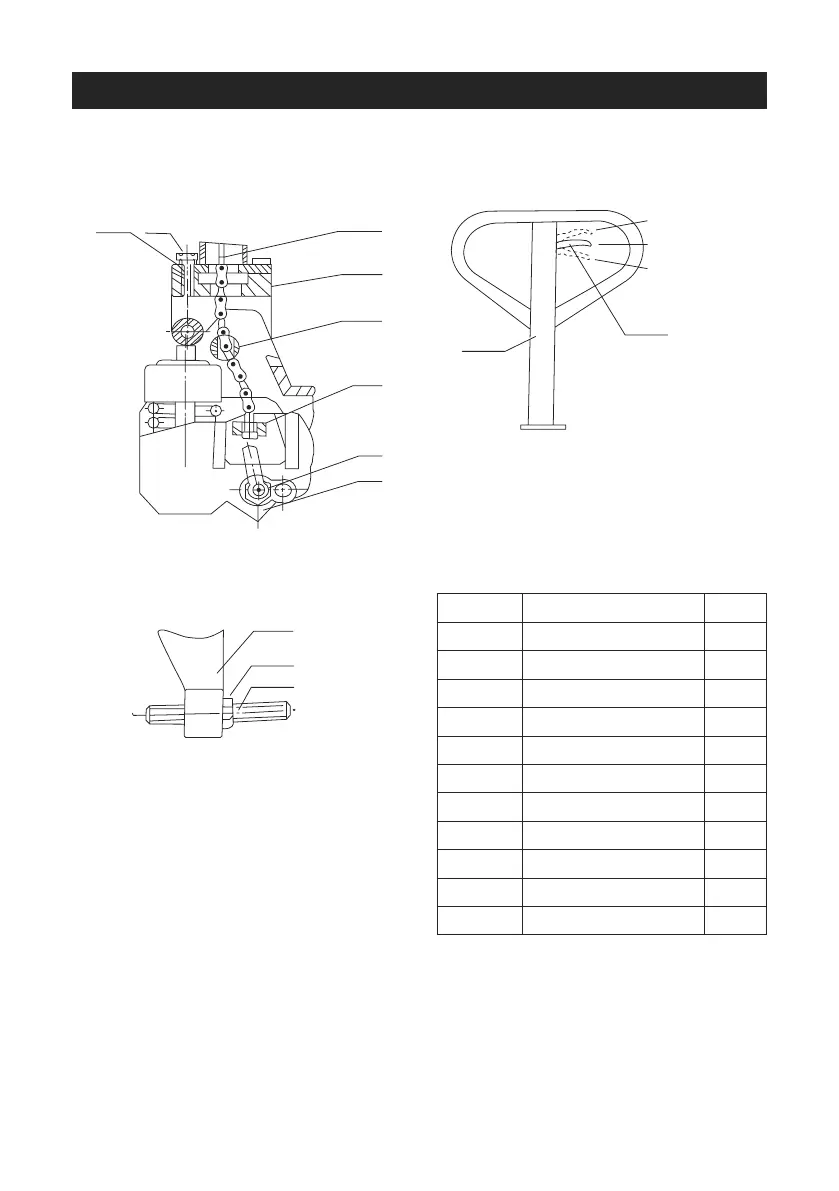

PARTS DIAGRAM
PART NO. PART NAME QTY.
H107 Wire, Chain and Pin 1
H109 Hex Screw 6
H110 Spring Washer 6
122H Pump Housing 6
139H Crank Link 1
103 Base 1
109 Axle 1
140 Set Screw 1
141 Nut 1
H101 Handle 1
H106 Control Lever 1
