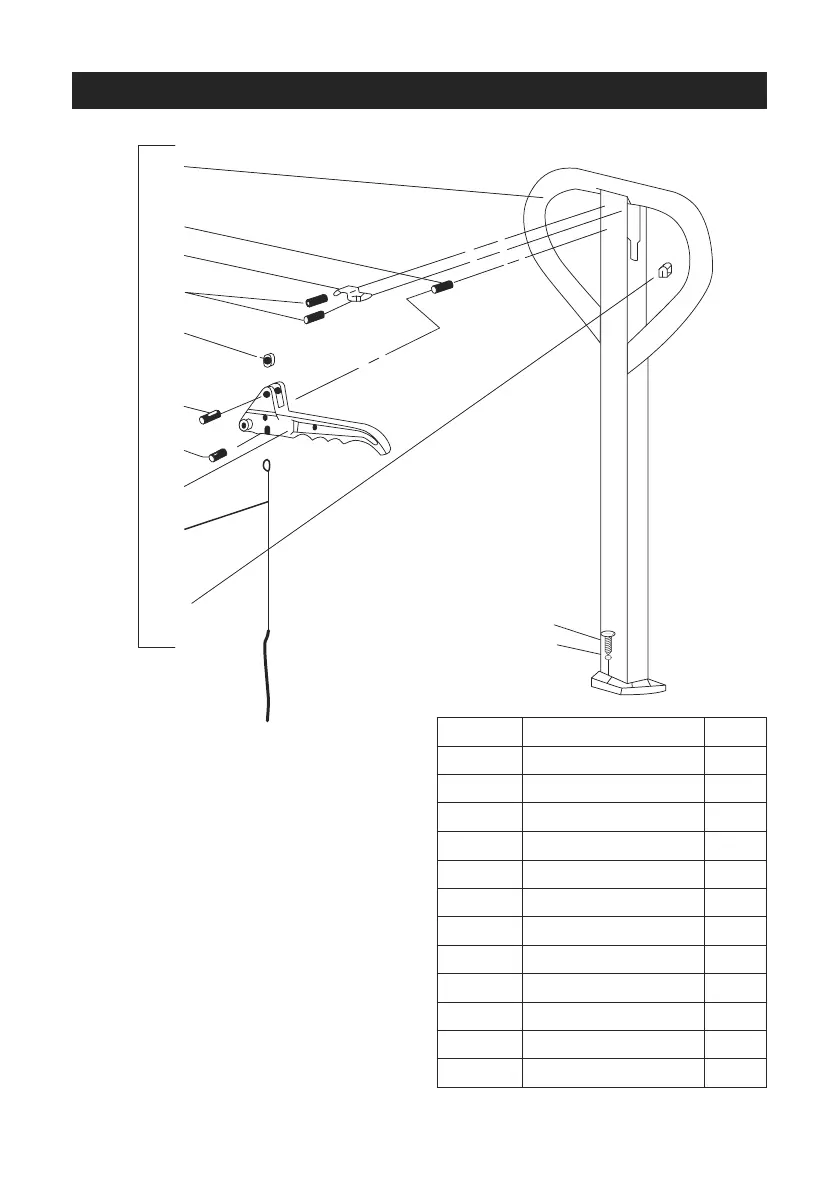

PARTS DIAGRAM CONTINUED
H101
H102
H103
H104
H111
H105
H112
H106
H107
H108
G
H109
H110
PART NO. PART NAME QTY.
H101 Handle 1
H102 Spring Pin 1
H103 Spring Leaf 1
H104 Spring Pin 2
H105 Spring Pin 1
H106 Control Lever 1
H107 Wire, Chain and Pin 1
H108 Rubber Cushion 1
H109 Hex Screw 6
H110 Spring Washer 6
H111 Nylon Roller 1
H112 Spring Pin 1
