USER GUIDE
Troubleshooting - Extended 8
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
TEMPERATURE CONTROL SPECIFICATIONS
Double Throw Ice Maker Thermostat Numbers
4548, AR-19-12, 2636, 2690, 2691, 2717, 2783,
2782-S, 2763-S, 2780, 80-26005-02
These temperature controls are double throw, single pole
controls. The sensing tube is inserted into the ice maker
mold and senses mold temperature. After ice is sensed in
the mold, the 2-3 contacts open (stopping the
compressor) and the 2-1 contacts are closed (starting the
ice maker motor). The 2-3 contacts close (2-1 contacts
open) before the end of the ice harvest cycle.The hold
switch prevents power going back to the compressor. This
prepares the control for the next cycle.
.

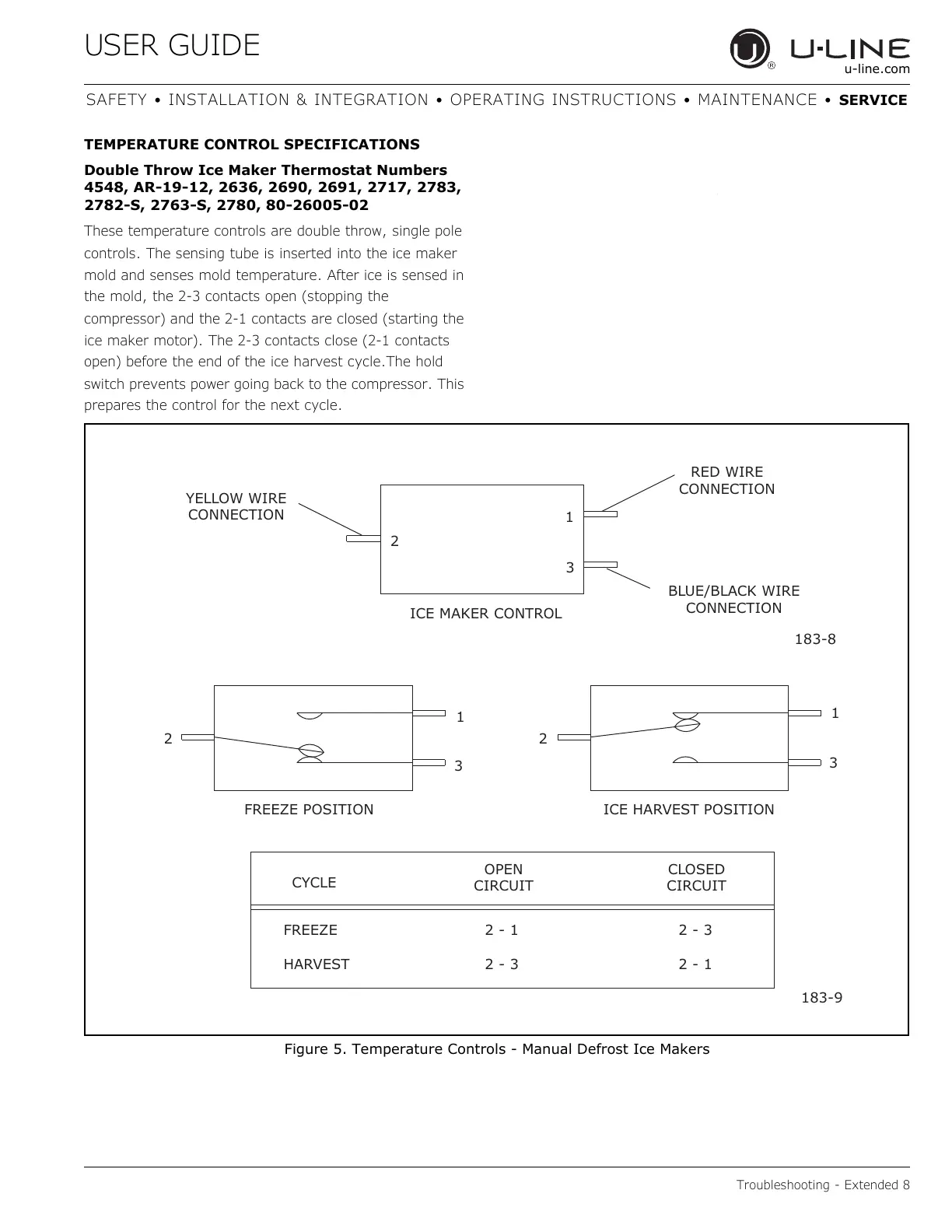

Figure 5. Temperature Controls - Manual Defrost Ice Makers
YELLOW WIRE
CONNECTION
RED WIRE
CONNECTION
BLUE/BLACK WIRE
CONNECTION
ICE MAKER CONTROL
2
1
3
183-8
22
1
3
1
3
FREEZE POSITION ICE HARVEST POSITION
CYCLE
CLOSED
CIRCUIT
OPEN
CIRCUIT
FREEZE 2 - 1 2 - 3
HARVEST 2 - 3 2 - 1
183-9
