ubbink Rolux - Ubbink Rolux concentric vent system Raised Horizontal Termination Kit; Incorrect installation Location

10
Description qt
A 90* elbow 2
B 14.2" (360 mm) vent extension 1
C 30" (750 mm) vent extension 1
D Vent pipe clamp 1
E Horizontal termination 1
F Enclosure 1
Screws/Anchors
9
3pc. #8x1/2" screws 4
A
A
A
B
C
D
E
F

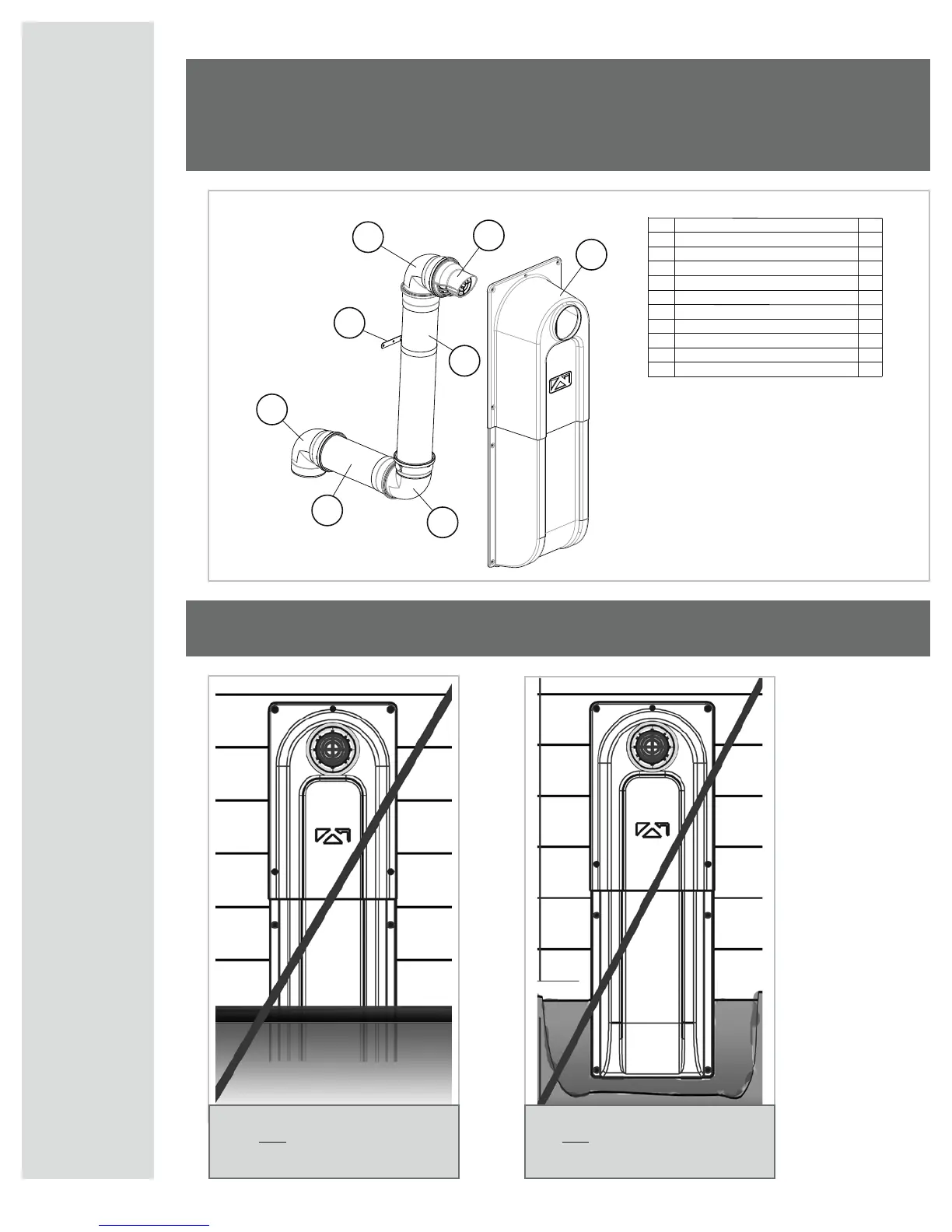

Installation Instructions
Ubbink Rolux® concentric vent system Raised Horizontal
Termination Kit
Incorrect installation Location
Note:
Do not bury the enclosure
below Grade
Note:
Do not position the enclosure
below Grade
