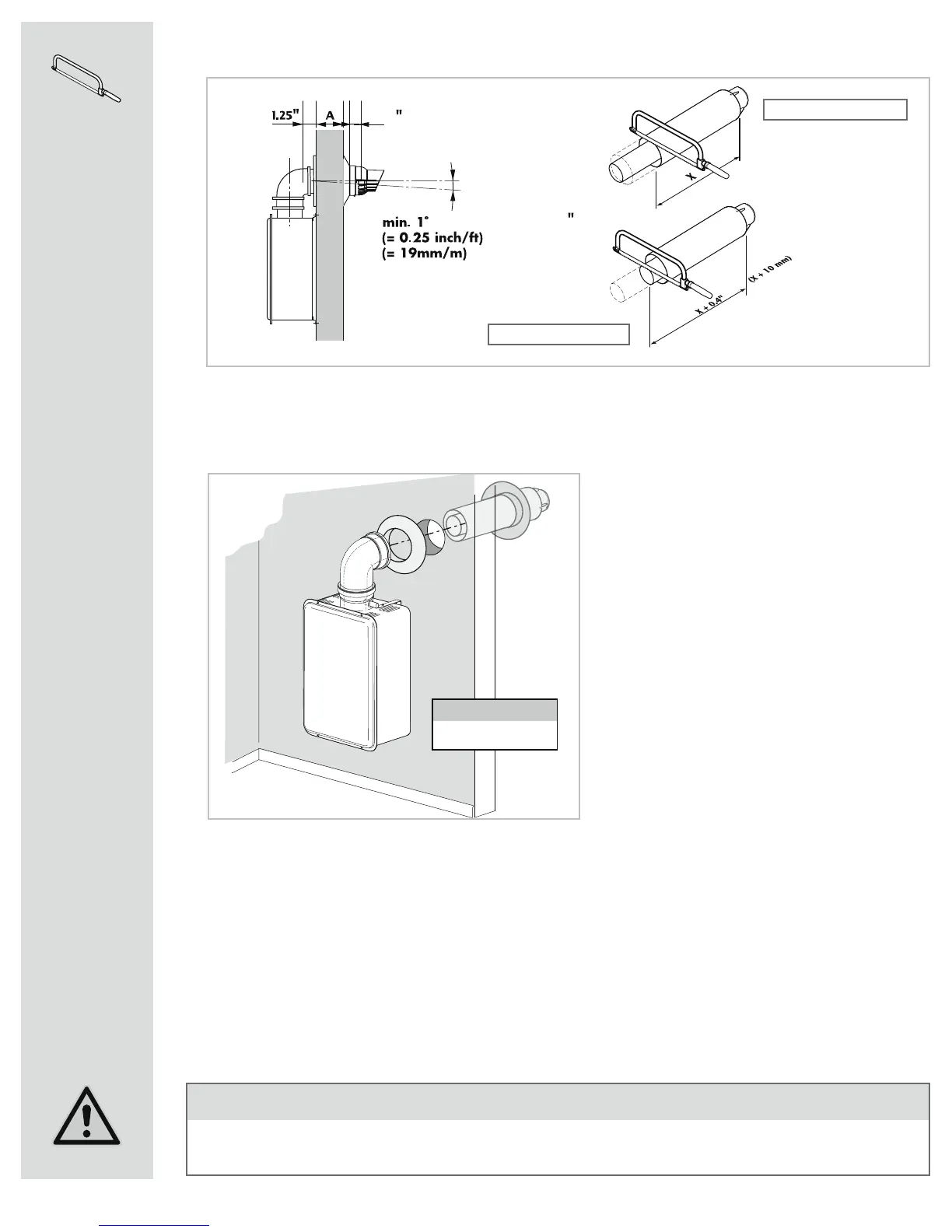

ubbink Rolux - Measure dimension to fit; Final installation of the vent system

7
2
(30 mm)
1.15 (30 mm)
x = A + 2.5 (65 mm) minimum
(whiter outer)
White Outer Pipe
Metal Inner Pipe
Reference page 4 of these installation instructions for the acceptable pitch direction.
Final installation of the vent system
- After cutting the appropriate length
slide the horizontal through the hole
in the wall. Position the first rubber
wall plate around the male end of the
termination.
- Slide the male end of the termination
in the Horizontal Discharge Adapter.
- Fill the gaps between the wall and the
vent pipe penetration with a weather
proof Sealant.
- Finally, position the second rubber
wall plate around the vent pipe, between
the termination and the exterior wall.
First place innerwall plate to
slide terminal through
NOTE
3
NOTE
Condensate can damage the water heater, please read carefully page 3 in
this installation manual.
Measure dimension to fit
