Installation Instructions
Rolux
®
Vertical Discharge Vent System

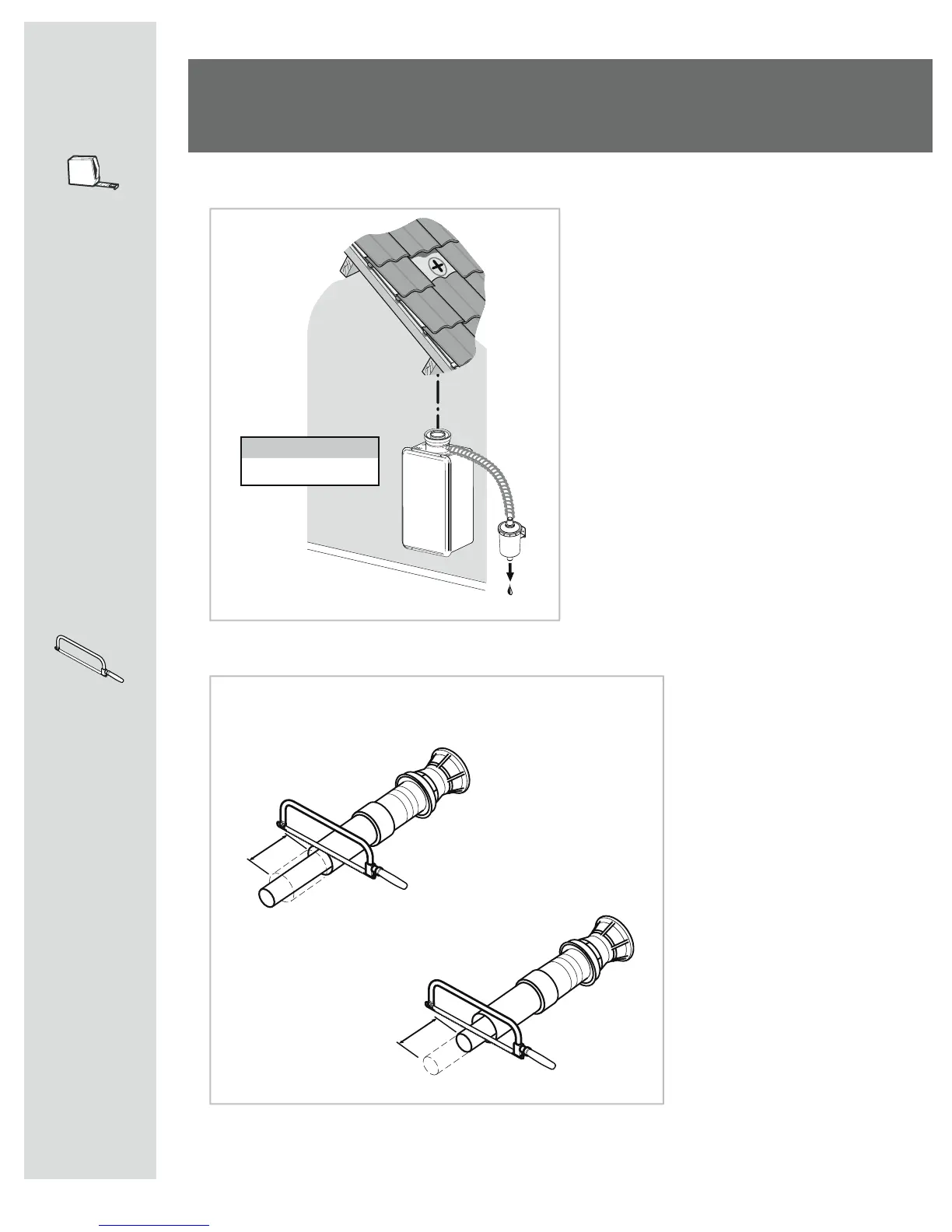

Identify the vent location
Determine the location where the roof dis-
charge terminal will be installed. Taking into
account the angle of the roof, cut the hole
with a dimension that allows the
vertical discharge roof terminal to be
installed
- 6”x6” 150x150 mm hole for flat roof,
- 9”x6” 225x150 mm hole for 12/12 pitch (45°)
- 12”x6” 300x150 mm hole for 16/12 pitch
(55°).
Cut to fit
The terminal can be
shortened by cutting
both the inside and
outside pipes with
the same length X.
Cover the top of the heater
to pr
event debris from entering
.
NOTE
To Next Page
